Robinet sferic din alama nichelata BV Geca FI-FI / FE-FI

Robinet sferic BV Geca
  • Acesti robineti sferici BV Geca sunt proiectati pentru inchiderea sau deschiderea alimentarii cu gaze din familiile 1,2,3 , aer sau apa.
  • Carcasa din alama nichelata.
  • Maner din otel zincat si emailat pentru robinetii intre 1/4" si 2" si din aluminiu pentru 2 1/2" si 4".
  • Filet intern ISO 7/1 Rp paralel (echivalent cu DIN EN 10226-1 si BS EN 10226-1) pentru modelele dintre 1/4" - 2".
  • Filet ISO 228 (echivalent cu DIN EN ISO 228 si BS EN ISO 228) pentru modelele dintre 2 1/2" - 4".
  • Aprobat EN 331.



Robinet sferic BV Geca FF-1 Robinet sferic BV Geca FF-2 Robinet sferic BV Geca MF-1 Robinet sferic BV Geca MF-2


Schema de principiu in sectiune robinet sferic Geca

Sectiune BV-1 Sectiune BV-2
Treceti cu mouse-ul peste imaginile care nu se vad in detaliu pentru a le mari.

BV 1/4" 2" Material Material
1 Surub Otel zincat Fe CB4 6 Adaptor Alama nichelata CW617N
2 Maner Otel zincat emailat Fe.P.04 7 Scaun P.T.F.E.
3 O-ring Viton 8 Sfera Alama cromata CW617N
4 O-ring NBR 9 Carcasa Alama nichelata CW617N
5 Trunchi Alama CW614N



Sectiune BV-3 Sectiune BV-4



BV 2 1/2" 4" Material Material
1 Surub Otel zincat Fe CB4 6 Adaptor Alama nichelata CW617N
2 Maner Aluminiu 7 Scaun P.T.F.E.
3 O-ring Viton 8 Sfera Alama cromata CW617N
4 O-ring NBR 9 Carcasa Alama nichelata CW617N
5 Trunchi Alama CW614N


Caracteristici tehnice robineti sferici BV Geca

Serie robinet sferic Racord pmax (bar) pmax (psi) Temperatura de lucru (oC) Design Maner
Robinet sferic BV008-FF 1/4" 5 72.5 -20 60 Alama nichelata Otel
Robinet sferic BV010-FF 3/8"
Robinet sferic BV015-FF 1/2"
Robinet sferic BV020-FF 3/4"
Robinet sferic BV025-FF 1"
Robinet sferic BV032-FF 1 1/4"
Robinet sferic BV040-FF 1 1/2"
Robinet sferic BV050-FF 2"
Robinet sferic BV065-FF 2 1/2" 18 261 -20 60 Alama nichelata Aluminiu
Robinet sferic BV080-FF 3" 16 232
Robinet sferic BV100-FF 4" 14 203



Serie robinet sferic Racord pmax (bar) pmax (psi) Temperatura de lucru (oC) Design Maner
Robinet sferic BV008-MF 1/4" 5 72.5 -20 60 Alama nichelata Otel
Robinet sferic BV010-MF 3/8"
Robinet sferic BV015-MF 1/2"
Robinet sferic BV020-MF 3/4"
Robinet sferic BV025-MF 1"
Robinet sferic BV032-MF 1 1/4"
Robinet sferic BV040-MF 1 1/2"
Robinet sferic BV050-MF 2"
Robinet sferic BV065-MF 2 1/2" 18 261 -20 60 Alama nichelata Aluminiu
Robinet sferic BV080-MF 3" 16 232
Robinet sferic BV100-MF 4" 14 203


Dimensiuni robineti sferici BV Geca (mm)

dimensiuni BV Geca-1



Model A B C D E F CH
BV008-FF 49.5 23.5 37.3 80 10 11.0 18
BV010-FF 52.4 24 37.3 80 10 11.4 21
BV015-FF 61 30.5 48.8 88.5 15 15.0 25
BV020-FF 68 37 54.8 113 20 16.3 31
BV025-FF 85 45.5 56.8 113 25 19.1 38
BV032-FF 99.5 58 75.0 138 32 21.4 47
BV040-FF 109 71 90.3 157.8 40 21.4 54
BV050-FF 130 85 97.3 157.8 50 25.7 66



dimensiuni BV Geca-2



Model A B C D E F
BV065-FF 148 122 126.75 250 65 25
BV080-FF 168 142 135.75 250 80 27.5
BV100-FF 204 180 153.75 250 100 30



dimensiuni BV Geca-3



Model A B C D E F CH
BV008-MF 56.9 23.5 37.3 80 8 11.0 18
BV010-MF 58.9 24 37.3 80 10 11.4 21
BV015-MF 68.0 30.5 48.8 88.5 15 15.0 25
BV020-MF 75.5 37 54.8 113 20 16.3 31
BV025-MF 90.5 45.5 56.8 113 25 19.1 38
BV032-MF 105.0 58 75.0 138 32 21.4 47
BV040-MF 115.5 71 90.3 157.8 39 21.4 54
BV050-MF 135.5 85 97.3 157.8 50 25.7 66



dimensiuni BV Geca-4



Model A B C D E F G
BV065-MF 155.5 122 126.75 250 63 25 21
BV080-MF 178 142 135.75 250 74 27.5 24
BV100-MF 208 180 153.75 250 97 30 23

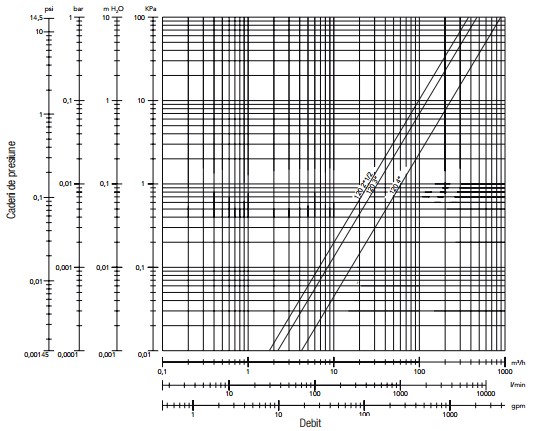

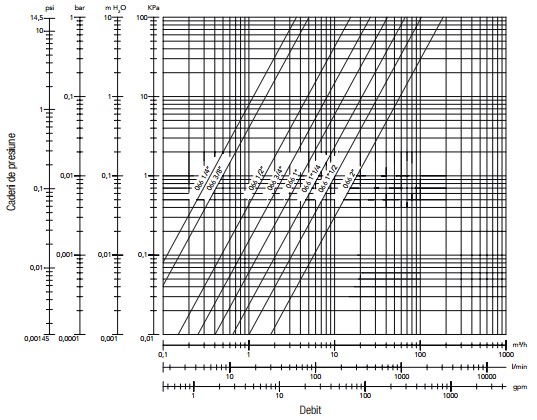

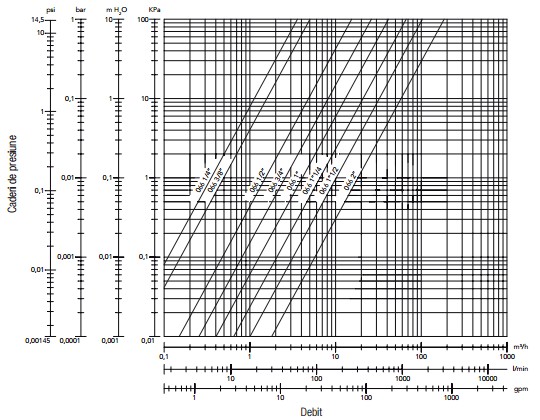

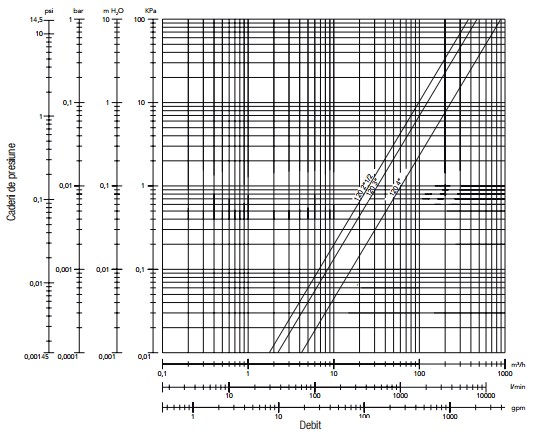

Diagrama de debit - apa

FF 1/4" - 2"

FF 2 1/2" - 4"

Diagrama BV Geca-1 Diagrama BV Geca-2



MF 1/4" - 2"

MF 2 1/2" - 4"

Diagrama BV Geca-3 Diagrama BV Geca-4

Treceti cu mouse-ul peste imaginile care nu se vad in detaliu pentru a le mari.


Preturi robineti sferici

Cod Model Preturi fara TVA
BV008-FF Robinet sferic Geca 1/4" - FI-FI 0.00
BV010-FF Robinet sferic Geca 3/8" - FI-FI 0.00
BV015-FF Robinet sferic Geca 1/2" - FI-FI 0.00
BV020-FF Robinet sferic Geca 3/4" - FI-FI 0.00
BV025-FF Robinet sferic Geca 1" - FI-FI 0.00
BV032-FF Robinet sferic Geca 1 1/4" - FI-FI 0.00
BV040-FF Robinet sferic Geca 1 1/2" - FI-FI 0.00
BV050-FF Robinet sferic Geca 2" - FI-FI 0.00
BV065-FF Robinet sferic Geca 2 1/2" - FI-FI 0.00
BV080-FF Robinet sferic Geca 3" - FI-FI 0.00
BV100-FF Robinet sferic Geca 4" - FI-FI 0.00
BV008-MF Robinet sferic Geca 1/4" - FE-FI 0.00
BV010-MF Robinet sferic Geca 3/8" - FE-FI 0.00
BV015-MF Robinet sferic Geca 1/2" - FE-FI 0.00
BV020-MF Robinet sferic Geca 3/4" - FE-FI 0.00
BV025-MF Robinet sferic Geca 1" - FE-FI 0.00
BV032-MF Robinet sferic Geca 1 1/4" - FE-FI 0.00
BV040-MF Robinet sferic Geca 1 1/2" - FE-FI 0.00
BV050-MF Robinet sferic Geca 2" - FE-FI 0.00
BV065-MF Robinet sferic Geca 2 1/2" - FE-FI 0.00
BV080-MF Robinet sferic Geca 3" - FE-FI 0.00
BV100-MF Robinet sferic Geca 4" - FE-FI 0.00
In cazul in care pretul lipseste sau pentru o lista de discount-uri contactati-ne direct pentru a primi o oferta.
