Medium pressure regulator FRM Dungs
- These pressure regulators FRM are designed for industrial gas burners and gas heating appliances. They can be used for installation in the municipal and commercial gas supply.
- Spring-loaded, pressure compensating regulator with adjustable setpoint springs for regulation of the regulator outlet pressure.
- External impulse of the regulator outlet pressure.
- Type IS - internal strenght range.
- Inlet pressures up to 10 bar (1000 kPa).
- Ambient temperature -20÷60o.
- Models with integrated safety shut-off valve SSV (SAV) in compliance with EN14382, class A, with a response time of under 2 seconds, a lower adjustment range Wdu between 10÷2500 mbar and an upper adjustment range Wdo between 40÷4000 mbar.
- Failure mode (diaphragm rupture): fail-open.
- Accuracy class up to AC 5.
- High flow rate. Stable, accurate and sensitive regulation of the regulator outlet pressure.
- Materials: main body housing - cast iron GGG 50, diaphragm housing - steel, diaphragms - NBR.
- Suitable for gases of gas families 1, 2, 3 and other neutral gases.
- In case you need help choosing the best model, open the request form, complete it, save it locally on your PC and than send it to our email-ing address.

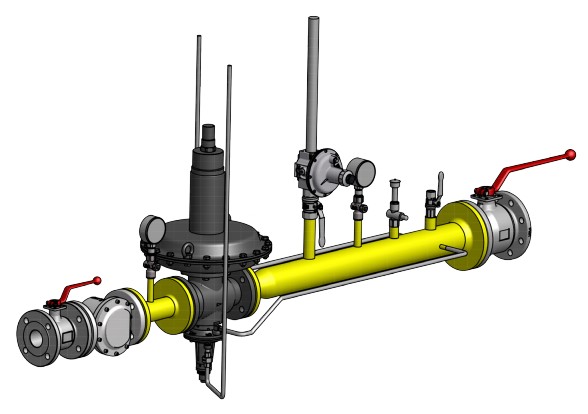

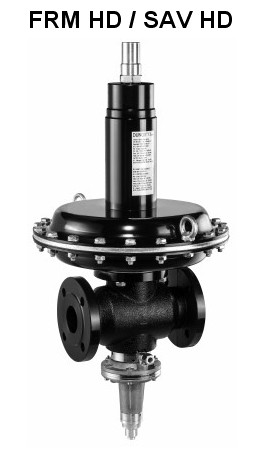

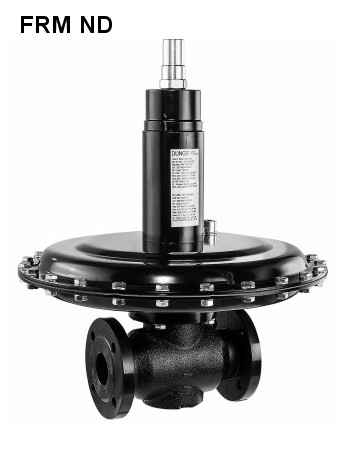

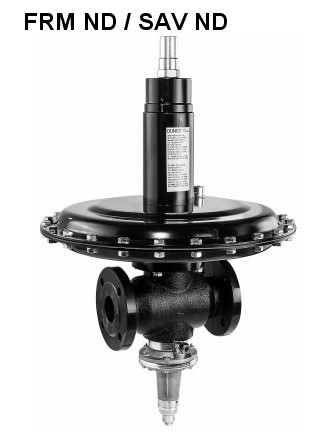

- Detailed pictures for available models (move the mouse over them to zoom):

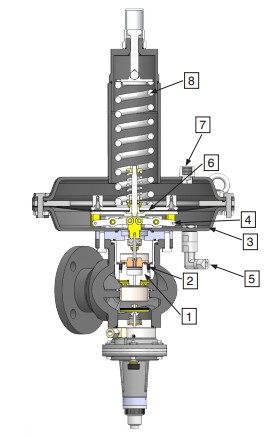

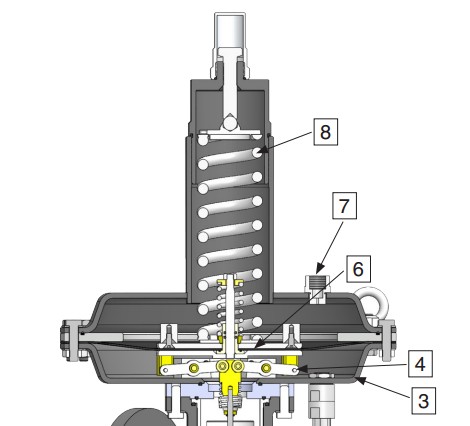

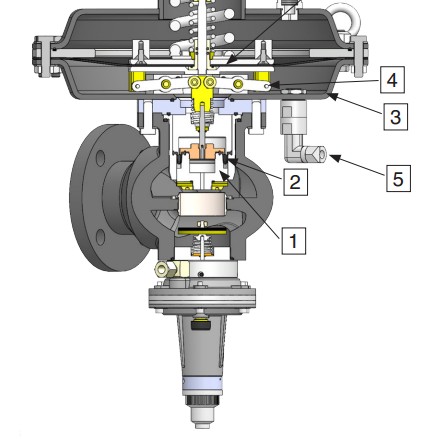

Sectional drawing FRM
For the images that aren't clear move the mouse over them to zoom.
| Gas pressure regulator FRM | |||||||
|---|---|---|---|---|---|---|---|
| 1 | Control plate | 4 | Lever system | 7 | Vent connection | ||
| 2 | Inlet pressure compensation diaphragm | 5 | Impulse connection for the outlet pressure | 8 | Setpoint spring | ||
| 3 | Lower diaphragm shell | 6 | Working diaphragm | ||||

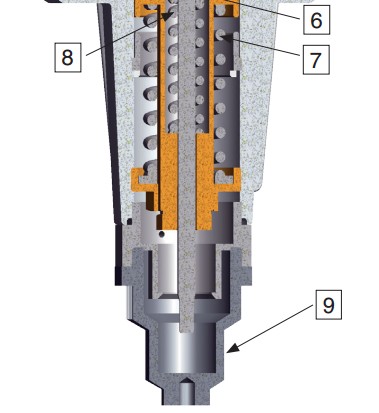

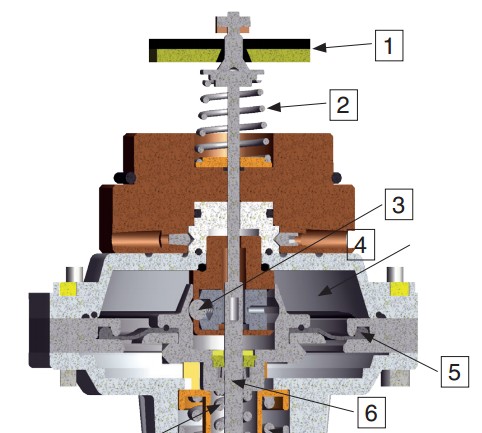

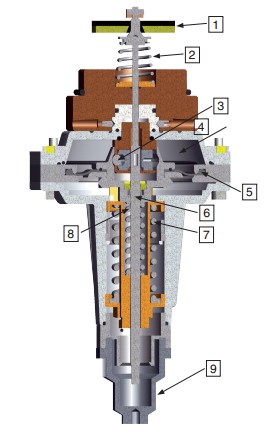

| Safety shut-off valve SAV | |||||||
|---|---|---|---|---|---|---|---|
| 1 | Valve disc | 4 | Chamber with the pressure to be monitored | 7 | Setpoint spring for overpressure | ||
| 2 | Closing spring | 5 | Working diaphragm | 8 | Setpoint spring for underpressure | ||
| 3 | Ball catch / trigger mechanism | 6 | Push rod | 9 | Protective cap | ||
Technical specifications FRM pressure regulator
| Regulator type | Code | DN | pmax (bar) | Outlet pressure range (mbar) | Minimum differential pressure (mbar) | Lower adjustment range Wdu (mbar) | Upper adjustment range Wdo (mbar) |
|---|---|---|---|---|---|---|---|
| FRM 100025 ND | 270272 | DN 25 | 10 | 30÷100 | 270 | ||
| FRM 100025 MD | 270273 | 80÷420 | 350 | ||||
| FRM 100025 HD | 270274 | 400÷1500 | 500 | ||||
| FRM 100025 ND / SAV ND | 270275 | 30÷100 | 270 | 10÷115 | 40÷240 | ||
| FRM 100025 MD / SAV MD | 270276 | 80÷420 | 350 | 35÷400 | 180÷800 | ||
| FRM 100025 HD / SAV HD | 270277 | 400÷1500 | 500 | 150÷2500 | 500÷4000 | ||
| FRM 100040 ND | 270278 | DN 40 | 10 | 30÷100 | 270 | ||
| FRM 100040 MD | 270279 | 80÷420 | 350 | ||||
| FRM 100040 HD | 270280 | 400÷1500 | 500 | ||||
| FRM 100040 ND / SAV ND | 270281 | 30÷100 | 270 | 10÷115 | 40÷240 | ||
| FRM 100040 MD / SAV MD | 270282 | 80÷420 | 350 | 35÷400 | 180÷800 | ||
| FRM 100040 HD / SAV HD | 270283 | 400÷1500 | 500 | 150÷2500 | 500÷4000 | ||
| FRM 100050 ND | 270284 | DN 50 | 10 | 30÷100 | 270 | ||
| FRM 100050 MD | 270285 | 80÷420 | 350 | ||||
| FRM 100050 HD | 270286 | 400÷1500 | 500 | ||||
| FRM 100050 ND / SAV ND | 270287 | 30÷100 | 270 | 10÷115 | 40÷240 | ||
| FRM 100050 MD / SAV MD | 270288 | 80÷420 | 350 | 35÷400 | 180÷800 | ||
| FRM 100050 HD / SAV HD | 270289 | 400÷1500 | 500 | 150÷2500 | 500÷4000 |
Selection of regulator springs
| Spring colour | Code | Wire diameter (mm) | Length (mm) | Diameter (mm) | Setpoint range (mbar) | ||
|---|---|---|---|---|---|---|---|
| ND | MD | HD | |||||
| Silver | 270341 | 5.5 | 220 | 60 | 30÷40 | 90÷110 | |
| Green | 270345 | 6.5 | 62 | 40÷55 | 110÷170 | ||
| Yellow | 270346 | 7.0 | 63 | 55÷80 | 170÷240 | ||
| Blue | 270347 | 8.0 | 65 | 80÷100 | 240÷330 | ||
| Black | 270348 | 9.0 | 68 | 330÷420 | 400÷580 | ||
| Purple | 270349 | 10.0 | 69 | 560÷850 | |||
| Orange | 270350 | 11.0 | 71 | 800÷1200 | |||
| Pink | 270352 | 12.0 | 73 | 1100÷1500 | |||
Selection of SAV springs
Underpressure Wdsu:
| Spring colour | Code | Wire diameter (mm) | Length (mm) | Diameter (mm) | Setpoint range (mbar) | ||
|---|---|---|---|---|---|---|---|
| ND | MD | HD | |||||
| White | 270353 | 1.2 | 60 | 10.0 | 10÷32 | ||
| Yellow | 270355 | 1.5 | 55 | 12.3 | 24÷40 | ||
| Blue | 270356 | 2.0 | 55 | 12.3 | 30÷115 | 35÷110 | |
| Black | 270357 | 2.3 | 55 | 12.3 | 50÷250 | ||
| Purple | 270358 | 2.5 | 55 | 12.3 | 80÷400 | 150÷500 | |
| Orange | 270359 | 2.8 | 55 | 12.3 | 300÷1000 | ||
| Pink | 270360 | 3.0 | 55 | 12.5 | 800÷2500 | ||
Overpressure Wdso:
| Spring colour | Code | Wire diameter (mm) | Length (mm) | Diameter (mm) | Setpoint range (mbar) | ||
|---|---|---|---|---|---|---|---|
| ND | MD | HD | |||||
| Silver | 270361 | 2.2 | 60 | 30 | 40÷130 | ||
| Green | 270366 | 2.5 | 60÷190 | 180÷290 | |||
| Red | 270367 | 2.7 | 90÷240 | 230÷370 | |||
| Yellow | 270368 | 3.2 | 300÷500 | ||||
| Blue | 270369 | 3.5 | 400÷800 | 500÷1000 | |||
| Black | 270370 | 3.7 | 700÷1300 | ||||
| Purple | 270371 | 4.0 | 1000÷1800 | ||||
| Orange | 270372 | 4.5 | 1300÷2500 | ||||
| Pink | 270373 | 4.8 | 1800÷4000 | ||||

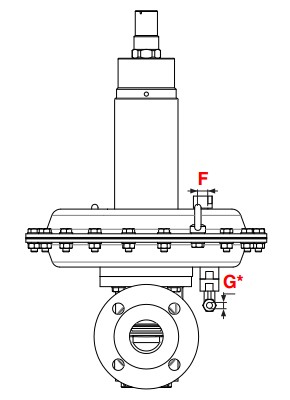

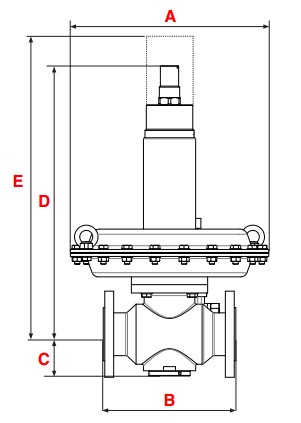

Dimensions pressure regulator FRM (mm)
| Regulator type | A | B | C | D | E | F | G | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| Pressure regulator FRM 100025 ND | 500 | 184 | 57 | 492 | 820 | Ø29.5-1/2"G | Ø12 | 38 |
| Pressure regulator FRM 100025 MD | 380 | 492 | 820 | 32 | ||||
| Pressure regulator FRM 100025 HD | 380 | 502 | 830 | 36 | ||||
| Pressure regulator FRM 100040 ND | 500 | 223 | 69 | 505 | 830 | Ø29.5-1/2"G | Ø12 | 42 |
| Pressure regulator FRM 100040 MD | 380 | 505 | 830 | 36 | ||||
| Pressure regulator FRM 100040 HD | 380 | 515 | 840 | 40 | ||||
| Pressure regulator FRM 100050 ND | 500 | 254 | 80 | 515 | 840 | Ø29.5-1/2"G | Ø12 | 49 |
| Pressure regulator FRM 100050 MD | 380 | 515 | 840 | 43 | ||||
| Pressure regulator FRM 100050 HD | 380 | 525 | 850 | 47 |

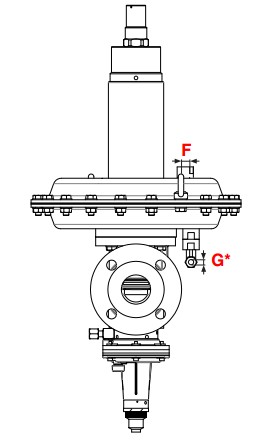

For the images that aren't clear move the mouse over them to zoom.

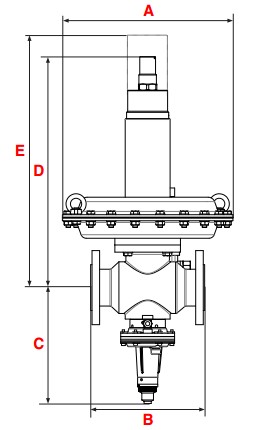

| Regulator type | A | B | C | D | E | F | G | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| FRM 100025 ND / SAV ND | 500 | 184 | 232 | 492 | 1070 | Ø29.5-1/2"G | Ø12 | 40 |
| FRM 100025 MD / SAV MD | 380 | 229 | 492 | 1070 | 34 | |||
| FRM 100025 HD / SAV HD | 380 | 236 | 502 | 1080 | 38 | |||
| FRM 100040 ND / SAV ND | 500 | 223 | 243 | 505 | 1080 | Ø29.5-1/2"G | Ø12 | 44 |
| FRM 100040 MD / SAV MD | 380 | 239 | 505 | 1080 | 38 | |||
| FRM 100040 HD / SAV HD | 380 | 247 | 515 | 1090 | 42 | |||
| FRM 100050 ND / SAV ND | 500 | 254 | 252 | 515 | 1090 | Ø29.5-1/2"G | Ø12 | 51 |
| FRM 100050 MD / SAV MD | 380 | 248 | 515 | 1090 | 45 | |||
| FRM 100050 HD / SAV HD | 380 | 256 | 525 | 1100 | 49 |
Prices FRM regulators
| Code | Type | Prices without TVA |
|---|---|---|
| 270272 | Gas pressure regulator FRM 100025 ND | 0.00 |
| 270273 | Gas pressure regulator FRM 100025 MD | 0.00 |
| 270274 | Gas pressure regulator FRM 100025 HD | 0.00 |
| 270275 | Gas pressure regulator FRM 100025 ND / SAV ND | 0.00 |
| 270276 | Gas pressure regulator FRM 100025 MD / SAV MD | 0.00 |
| 270277 | Gas pressure regulator FRM 100025 HD / SAV HD | 0.00 |
| 270278 | Gas pressure regulator FRM 100040 ND | 0.00 |
| 270279 | Gas pressure regulator FRM 100040 MD | 0.00 |
| 270280 | Gas pressure regulator FRM 100040 HD | 0.00 |
| 270281 | Gas pressure regulator FRM 100040 ND / SAV ND | 0.00 |
| 270282 | Gas pressure regulator FRM 100040 MD / SAV MD | 0.00 |
| 270283 | Gas pressure regulator FRM 100040 HD / SAV HD | 0.00 |
| 270284 | Gas pressure regulator FRM 100050 ND | 0.00 |
| 270285 | Gas pressure regulator FRM 100050 MD | 0.00 |
| 270286 | Gas pressure regulator FRM 100050 HD | 0.00 |
| 270287 | Gas pressure regulator FRM 100050 ND / SAV ND | 0.00 |
| 270288 | Gas pressure regulator FRM 100050 MD / SAV MD | 0.00 |
| 270289 | Gas pressure regulator FRM 100050 HD / SAV HD | 0.00 |
In case the price is missing or for a list of discounts contact
us directly to receive an offer.
