GasBloc GB-(LEP) D01 Dungs multifunctional gas control
- This GB GasBloc is a multifunctional gas control valve as per EN 126 for fully automatic operation, it combines a pressure regulator and safety shut-off valves.
- One stage mode or two stage mode for direct burner ignition (DBI) or intermittent pilot (IP).
- Fast-open or slow-open with adjustable start gas volume up to 80%.
- Constant volume flow using servo pressure regulator with servo regulator.
- Inlet pressure up to maximum 65 mbar (6.5 kPa).
- Different variants according to application.
- Suitable for gases of gas families 1, 2, 3, as per EN 437 and other neutral combustion gases.
- Note: This series is no longer part of the Dungs main product line.

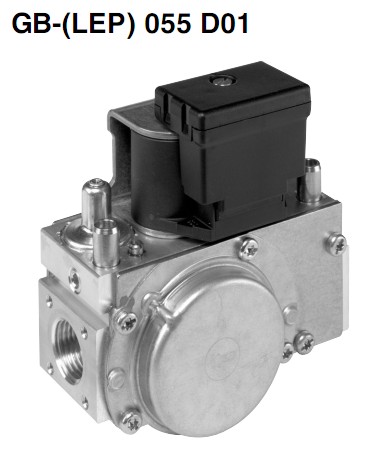

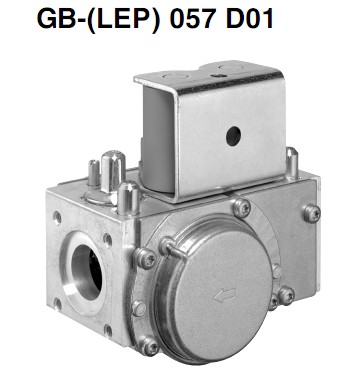

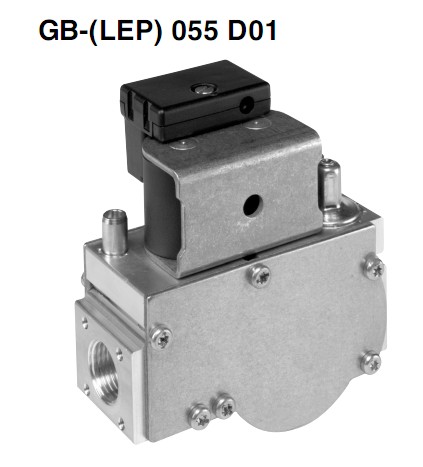

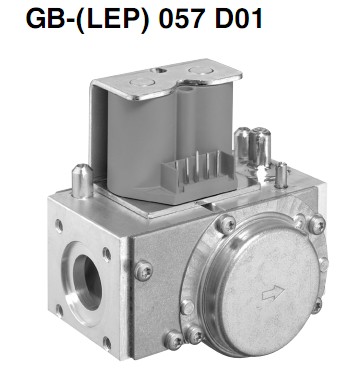

- Detailed pictures for available models (move the mouse over them to zoom):

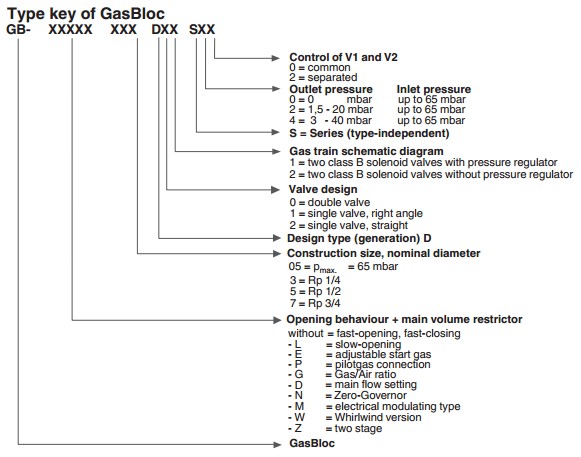

GB Gasbloc type key
For the images that aren't clear move the mouse over them to zoom.

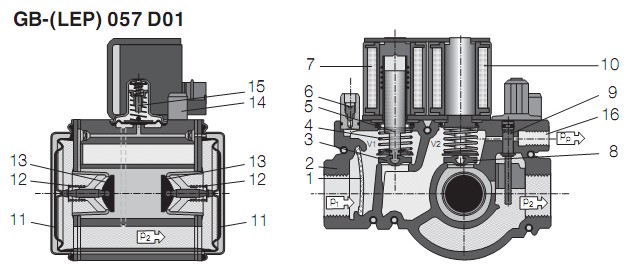

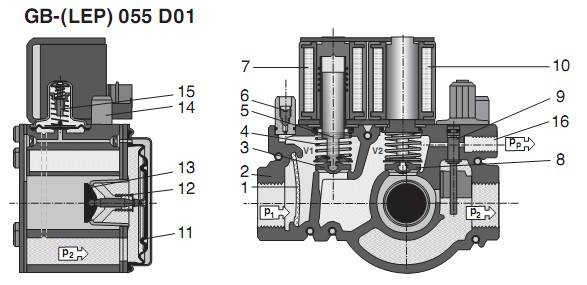

Sectional drawings GB-LEP
| GB-LEP 055-057 D01 | |||||||
|---|---|---|---|---|---|---|---|
| 1 | Fine-meshed strainer | 7 | Solenoid V1 | 12 | Return spring | ||
| 2 | Housing | 8 | Valve V2 | 13 | Operating valve | ||
| 3 | Valve V1 | 9 | Start gas setting | 14 | Electrical connection | ||
| 4 | Closing spring | 10 | Solenoid V2 | 15 | Servo-pressure regulator | ||
| 5 | Plunger V1 | 11 | Working diaphragm | 16 | Ignition gas connection | ||
| 6 | Test nipple | ||||||
Technical specifications for GB-LEP Dungs
| GasBloc type | Code | Rp/DN | pmax (mbar) | Pressure range (mbar) | Voltage (V) | Frequency (Hz) |
|---|---|---|---|---|---|---|
| GB 055 D01 | 240844 | 1/2 | 65 | 2.5÷38 | 230 V (AC) | 50÷60 |
| GB-P 055 D01 | 240845 | |||||
| GB-LE 055 D01 | 240848 | |||||
| GB-LEP 055 D01 | 240849 | |||||
| GB 057 D01 | 248521 | 3/4 | ||||
| GB-LE 057 D01 | 255402 | |||||
| GB-LEP 057 D01 | 250501 |
| GasBloc type | Code | Nominal flow air* (m3/h) | Temperature** (oC) | Closing time (sec) | Opening time (sec) | Degree of protection |
|---|---|---|---|---|---|---|
| GB 055 D01 | 240844 | 3.3 | -15÷75 | <1 | <1 | IP 40 |
| GB-P 055 D01 | 240845 | <1 | ||||
| GB-LE 055 D01 | 240848 | <10 | ||||
| GB-LEP 055 D01 | 240849 | <10 | ||||
| GB 057 D01 | 248521 | 5.3 | <1 | |||
| GB-LE 057 D01 | 255402 | <10 | ||||
| GB-LEP 057 D01 | 250501 | <10 |
* At Δp 5 mbar (0.5 kPa).
** In case of LPG don't use below freezing.

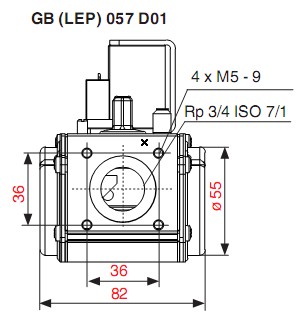

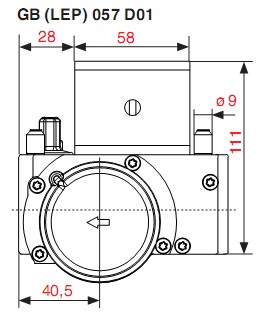

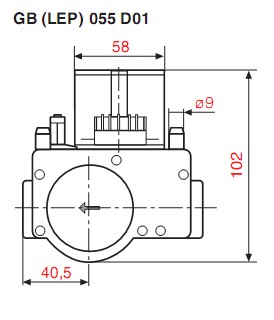

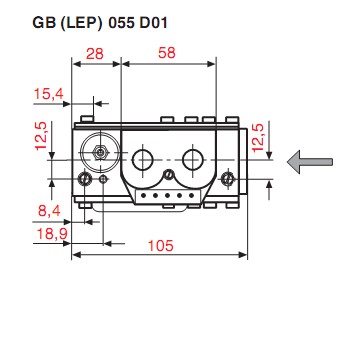

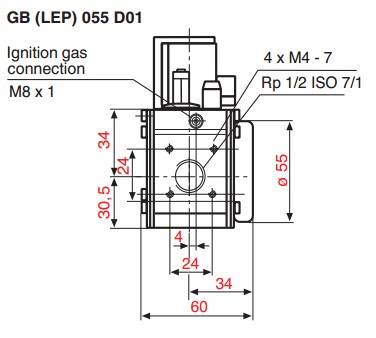

Dimensions Dungs GasBloc GB-LEP (mm)

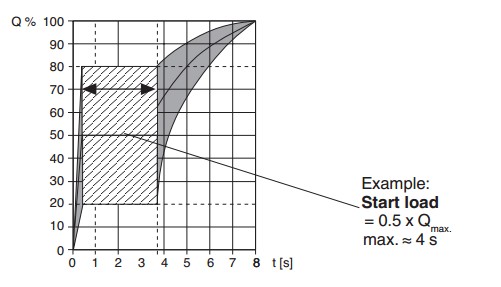

Setting the start rate for GB-LEP
The start rate can be set, but the time cannot be changed. Slow start requires a closed pressure regulator at start. Before each restart, a waiting period of at least 45 seconds must be observed.

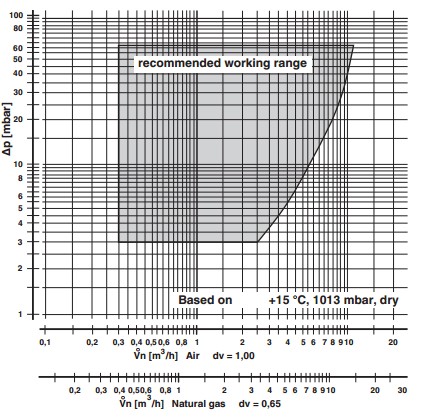

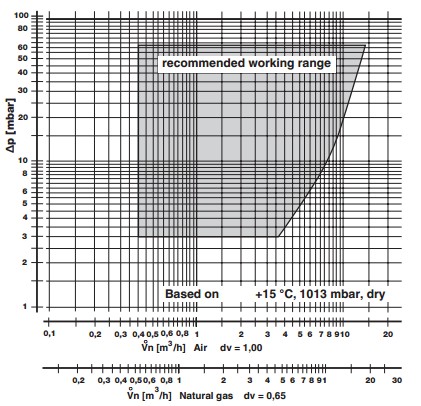

Flow diagrams GB-LEP
- Gas blocks type GB-(LEP) 055 D01
- Gas blocks type GB-(LEP) 057 D01
- For more drawings or details access the operation manual.
