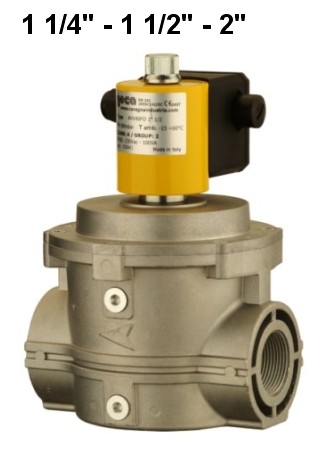

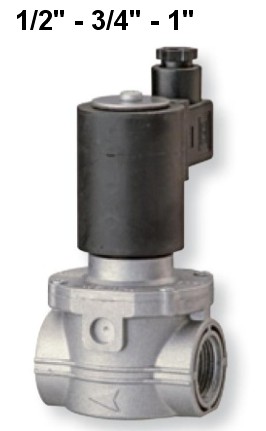

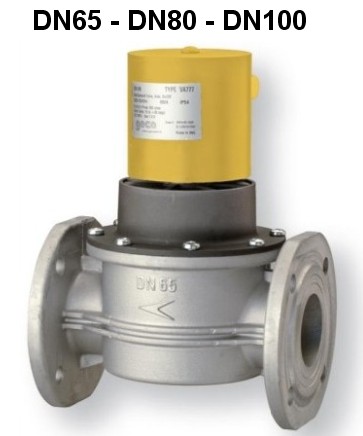

Automatic gas valve AV Geca - 6 bar
- These solenoid valves AV Geca are used for safety and control of gas for shut-off in gas feed pipes. When there is no power they shut-off.
- Normally closed, single-stage, fast closing and fast opening, up to 1 second.
- Maximum operating pressure of 6 bar, working temperature -20÷60 oC and degree of protection IP 65.
- Maximum number of operations: 20 per minute.
- FR models have the option of flow regulation.
- On request they can be fitted with CPI - position control.
- Incorporated AISI 303 steel mesh filter.
- Test point: screw 1/4" NPT.
- Complete body material: Die-cast Aluminium Gd - AlSi12Cu - EN AB 46100.
- Suitable for gases of families 1, 2, 3, for non-aggressive gases, LPG and air.

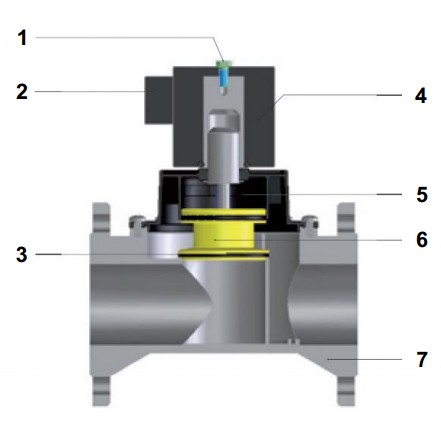

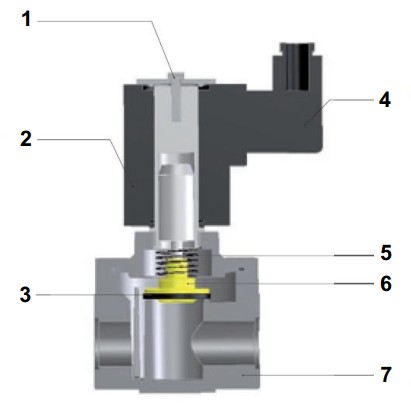

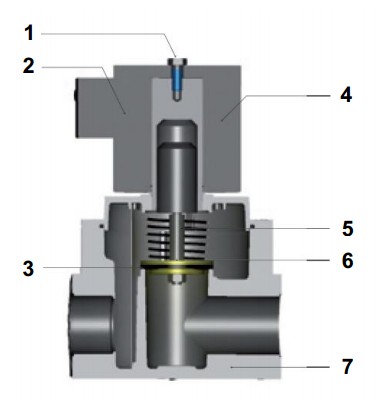

Sectional drawings for AV Geca electromagnetic valves
For the images that aren't clear move the mouse over them to zoom.
| Gas valve AV | |||||||
|---|---|---|---|---|---|---|---|
| 1 | Flow regulation | 4 | Connector | 6 | Obturator | ||
| 2 | Coil | 5 | Spring | 7 | Body | ||
| 3 | Seal O-ring | ||||||
Technical specifications AV Geca valves
| Valve type | Connection | pmax (bar) | Supply voltage (V) | Power (VA) | Opening time (s) | Closing time (s) | Working temp. (oC) |
|---|---|---|---|---|---|---|---|
| Automatic valve AV015FO-6B | 1/2" | 6 | 230 V (AC) 110 V (AC) 24 V (DC) |
24 | < 1 | < 1 | -20 ÷ 60 |
| Automatic valve AV020FO-6B | 3/4" | 24 | |||||
| Automatic valve AV025FO-6B | 1" | 24 | |||||
| Automatic valve AV032FO-6B | 1 1/4" | 50 | |||||
| Automatic valve AV040FO-6B | 1 1/2" | 50 | |||||
| Automatic valve AV050FO-6B | 2" | 50 | |||||
| Automatic valve AVD65FO-6B | DN 65 | 6 | 230 V (AC) 110 V (AC) 24 V (DC) |
68 | ≤ 1 | ≤ 1 | -20 ÷ 60 |
| Automatic valve AVD80FO-6B | DN 80 | 68 | |||||
| Automatic valve AVD100FO-6B | DN 100 | 170 |
| Valve type | Connection | pmax (bar) | Supply voltage (V) | Power (VA) | Opening time (s) | Closing time (s) | Working temp. (oC) |
|---|---|---|---|---|---|---|---|
| Gas valve AV015FO-FR-6B | 1/2" | 6 | 230 V (AC) 110 V (AC) 24 V (DC) |
24 | < 1 | < 1 | -20 ÷ 60 |
| Gas valve AV020FO-FR-6B | 3/4" | 24 | |||||
| Gas valve AV025FO-FR-6B | 1" | 24 |

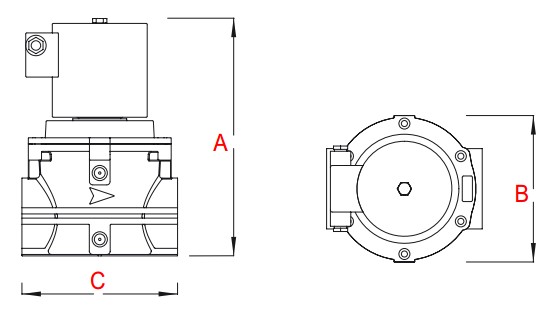

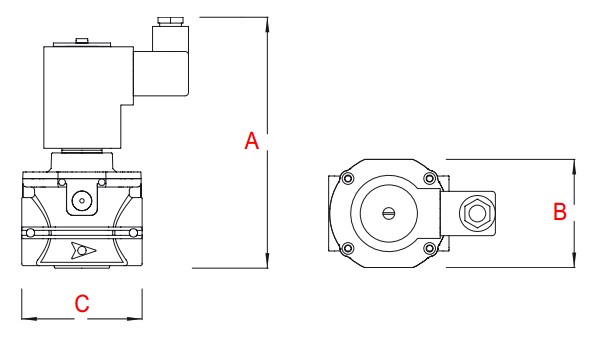

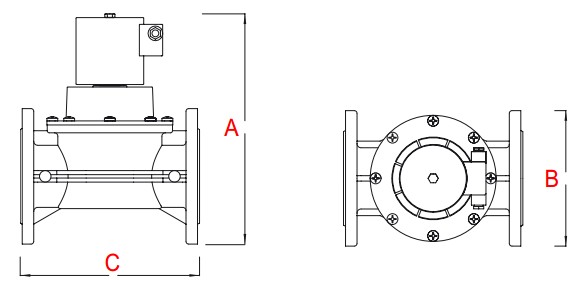

Dimensiuni electrovana Geca (mm)
| Valve type | Connection | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|
| Gas valve AV015FO-6B | 1/2" | 148 | 64.5 | 72 |
| Gas valve AV015FO-FR-6B | ||||
| Gas valve AV020FO-6B | 3/4" | 148 | 64.5 | 72 |
| Gas valve AV020FO-FR-6B | ||||
| Gas valve AV025FO-6B | 1" | 148 | 64.5 | 72 |
| Gas valve AV025FO-FR-6B |
| Valve type | Connection | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|
| Gas solenoid valve AV032FO-6B | 1 1/4" | 250 | 154 | 164 |
| Gas solenoid valve AV040FO-6B | 1 1/2" | 250 | 154 | 164 |
| Gas solenoid valve AV050FO-6B | 2" | 250 | 154 | 164 |
| Valve type | Connection | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|
| Gas solenoid valve AVD65FO-6B | DN 65 | 340 | 185 | 240 |
| Gas solenoid valve AVD80FO-6B | DN 80 | 340 | 200 | 265 |
| Gas solenoid valve AVD100FO-6B | DN 100 | 350 | 220 | 265 |

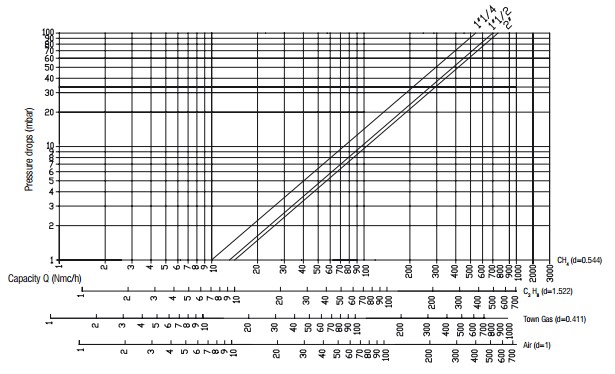

Flow diagrams

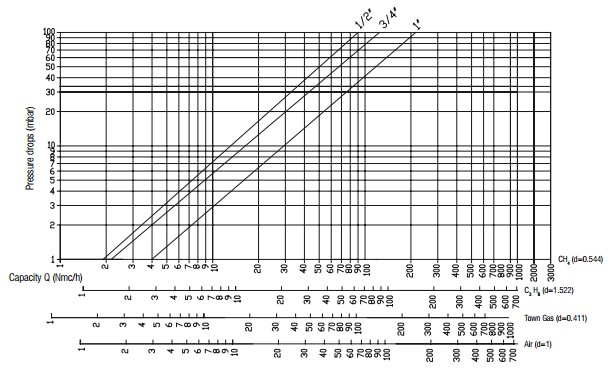

- 1/2" - 1"
- 1 1/4" - 2"

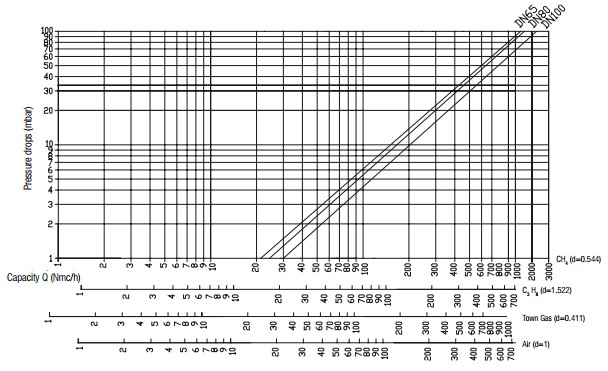

- DN 65 - DN 100
For the images that aren't clear move the mouse over them to zoom.
