ZRDLE Dungs gas solenoid valve - two-stage
- These solenoid valves ZR are used for securing, limiting, shutting off and releasing gas supply to gas burners and gas appliances.
- Normally closed, slow opening with adjustable fast stroke, fast closing. Partial volume adjustable. Closed position signal contact mountable.
- Class A, Group 2 as per EN 161.
- ZRD is with fast opening, ZRLE and ZRDLE series are with slow opening with adjustable fast stroke for start gas volume.
- ZRDLE has a main and partial adjustable volume.
- Maximum operating pressure up to 360 mbar (36 kPa) and the degree of protection is IP 54 (optional IP 65).
- Reliable function, rugged and maintenance-free.
- Suitable for gases of families 1, 2, 3 and other neutral gaseous media.

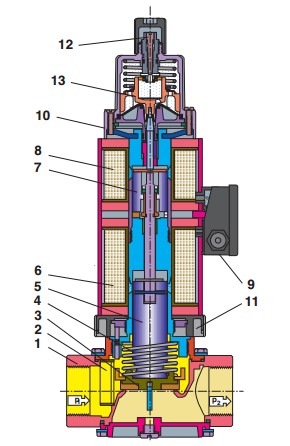

Sectional drawing ZRDLE electromagnetic valve
For the images that aren't clear move the mouse over them to zoom.
| Gas valve ZRDLE | |||||||
|---|---|---|---|---|---|---|---|
| 1 | Housing | 6 | Solenoid, stage 2 | 10 | Settting: stage 1 | ||
| 2 | Sieve | 7 | Armature, stage 1 | 11 | Setting: stage 2 | ||
| 3 | Valve plate | 8 | Solenoid, stage 1 | 12 | Setting: fast stroke | ||
| 4 | Closing spring | 9 | Electrical connection | 13 | Hydraulic brake | ||
| 5 | Armature, stage 2 | ||||||
Functional description ZR valve:
- The electromagnetic drive opens against the force of the closing spring 4. The stroke of armature 7 can be limited by the setting screw. The hydraulic brake 13 permits slow opening. Fast stroke 12 can be adjusted.
- If voltage is applied to the solenoid of stage 1, armature 7 opens up to the adjusted partial volume. If voltage is applied to the solenoid of stage 2, armature 5 opens up to the adjusted main volume.
- If the auxiliary power is interrupted (operating voltage), closing spring 4 closes the valve within 1 second.
- The closed position of the valve can be monitored by a mountable closed position signal contact.
Technical specifications ZRDLE/5 / ZRLE/5
| Valve type | Cod | Rp/DN | Voltage (V) | pmax operation (mbar) | Pmax (VA) | Ambient temp.(oC) | Opening time (s) |
|---|---|---|---|---|---|---|---|
| Gas valve ZRDLE 407/5 | 153820 | Rp 3/4 | 230 V (AC) | 360 | 52 | -15÷60 | 20 |
| Gas valve ZRDLE 410/5 | 153840 | Rp 1 | 52 | ||||
| Gas valve ZRDLE 415/5 | 153860 | Rp 1 1/2 | 90 | ||||
| Gas valve ZRDLE 420/5 | 153880 | Rp 2 | 90 | ||||
| Gas valve ZRDLE 4040/5 | 155430 | DN 40 | 90 | ||||
| Gas valve ZRDLE 4050/5 | 155450 | DN 50 | 90 |
| Valve type | Code | Rp | Voltage (V) | pmax operation (mbar) | Pmax (VA) | Ambient temp. (oC) | Opening time (s) |
|---|---|---|---|---|---|---|---|
| Gas valve ZRLE 407/5 | 109934 | Rp 3/4 | 230 V (AC) | 360 | 52 | -15÷60 | 20 |
| Gas valve ZRLE 410/5 | 109942 | Rp 1 | 52 | ||||
| Gas valve ZRLE 415/5 | 109959 | Rp 1 1/2 | 90 | ||||
| Gas valve ZRLE 420/5 | 110083 | Rp 2 | 90 |

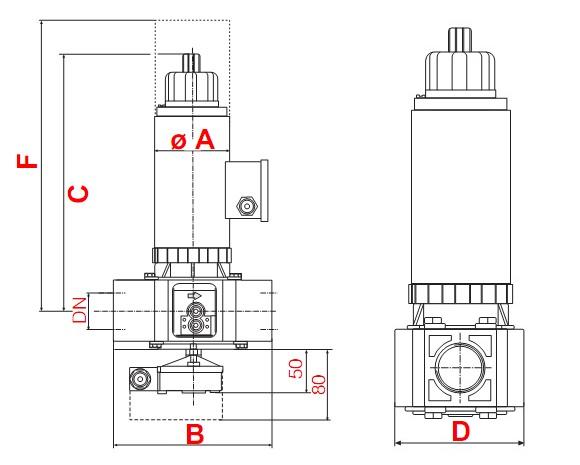

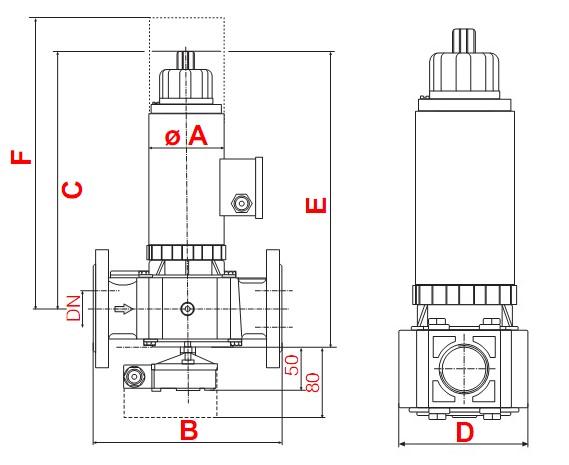

Dimensions ZRDLE / ZRLE valves (mm)
| Valve type | A | B | C | D | E | F | Weight (kg) |
|---|---|---|---|---|---|---|---|
| Gas solenoid valve ZRDLE 407/5 | 75 | 100 | 220 | 80 | 245 | 290 | 3.9 |
| Gas solenoid valve ZRDLE 410/5 | 75 | 110 | 220 | 90 | 250 | 290 | 4.1 |
| Gas solenoid valve ZRDLE 415/5 | 95 | 150 | 275 | 116 | 315 | 390 | 9.3 |
| Gas solenoid valve ZRDLE 420/5 | 95 | 170 | 280 | 130 | 325 | 390 | 10.2 |
| Valve type | A | B | C | D | E | F | Weight (kg) |
|---|---|---|---|---|---|---|---|
| Gas solenoid valve ZRLE 407/5 | 75 | 100 | 235 | 80 | 260 | 300 | 4.0 |
| Gas solenoid valve ZRLE 410/5 | 75 | 110 | 235 | 90 | 260 | 300 | 4.2 |
| Gas solenoid valve ZRLE 415/5 | 95 | 150 | 295 | 116 | 340 | 410 | 9.5 |
| Gas solenoid valve ZRLE 420/5 | 95 | 170 | 300 | 130 | 340 | 410 | 10.4 |
| Valve type | A | B | C | D | E | F | Weight (kg) |
|---|---|---|---|---|---|---|---|
| Gas solenoid valve ZRDLE 4040/5 | 95 | 200 | 300 | 150 | 340 | 410 | 11.0 |
| Gas solenoid valve ZRDLE 4050/5 | 95 | 230 | 300 | 165 | 345 | 410 | 12.5 |

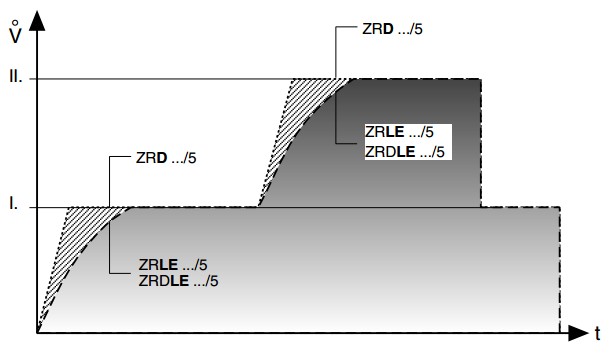

Opening behaviour ZR.../5

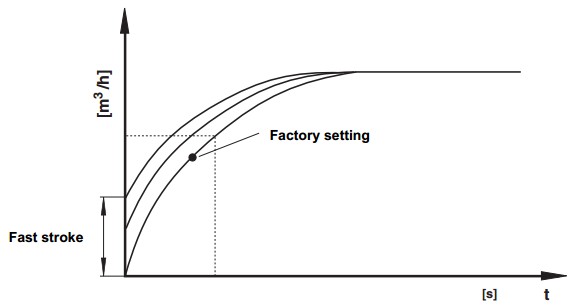

Rapid stroke adjustment V start for ZRDLE / ZRLE
'Factory setting: Rapid stroke not adjusted
1) Unscrew the adjustment cap from the hydraulic brake.
2) Invert the adjustment cap and use as a tool.
3) Turn anti-clockwise = increase rapid stroke (+).

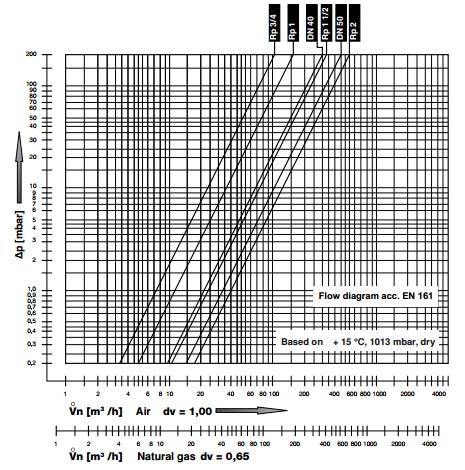

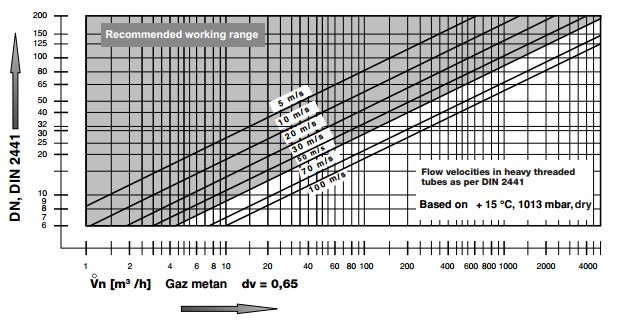

Flow diagrams solenoid valve ZRDLE
- For more drawings or details access the operation manual.
For the images that aren't clear move the mouse over them to zoom.
Prices gas valves ZRDLE/5
| Code | Type | Prices without VAT |
|---|---|---|
| 153820 | Solenoid valve ZRDLE 407/5 | 0.00 |
| 153840 | Solenoid valve ZRDLE 410/5 | 0.00 |
| 153860 | Solenoid valve ZRDLE 415/5 | 0.00 |
| 153880 | Solenoid valve ZRDLE 420/5 - In Stock | 0.00 |
| 155430 | Solenoid valve ZRDLE 4040/5 | 0.00 |
| 155450 | Solenoid valve ZRDLE 4050/5 | 0.00 |
| 209813 | Solenoid valve ZRDLE 407/5 200V | 0.00 |
| 209814 | Solenoid valve ZRDLE 410/5 200V | 0.00 |
| 209815 | Solenoid valve ZRDLE 415/5 200V | 0.00 |
| 209816 | Solenoid valve ZRDLE 420/5 200V | 0.00 |
| 109934 | Solenoid valve ZRLE 407/5 | 0.00 |
| 109942 | Solenoid valve ZRLE 410/5 | 0.00 |
| 109959 | Solenoid valve ZRLE 415/5 | 0.00 |
| 110083 | Solenoid valve ZRLE 420/5 | 0.00 |
