Manometers Dungs for gas
- Pressure measuring instruments with two types:
- Pressure gauge with capsule element and steel housing as per DIN EN 837-3 for measuring small overpressures, with a pressure range between 25÷600 mbar;
- Pressure gauge with Bourdon spiral element and steel housing as per DIN EN 837-1 for measuring high pressures, with a pressure range of 1÷25 bar.
- They are used in the areas of burner monitoring, filter status measurement, air conditioning engineering and in laboratories.
- Suitable for gases of gas families 1, 2, 3 and other neutral gaseous media.
- They can be equiped with special valves DKH or MAV to isolate the pressure gauges.
Technical specifications gas manometers
| Manometer series | Type | pmax (mbar) | Connection | Temperature (oC) | Accuracy class | Installation position |
|---|---|---|---|---|---|---|
| KP 80 0-25 mbar | Bourdon | 40 | G 1/2 B | -20÷60 | 1.6 per 837-3 | vertical |
| KP 80 0-40 mbar | 64 | |||||
| KP 80 0-60 mbar | 96 | |||||
| KP 80 0-100 mbar | 160 | |||||
| KP 80 0-160 mbar | 250 | |||||
| KP 80 0-250 mbar | 400 | |||||
| KP 80 0-400 mbar | 640 | |||||
| KP 80 0-600 mbar | 960 |
| Manometer series | Type | pmax (mbar) | Connection | Temperature (oC) | Accuracy class | Installation position |
|---|---|---|---|---|---|---|
| KP 100 0-25 mbar | Bourdon | 25 | G 1/2 B | -20÷60 | 1.6 per 837-3 | vertical |
| KP 100 0-40 mbar | 40 | |||||
| KP 100 0-60 mbar | 60 | |||||
| KP 100 0-100 mbar | 100 | |||||
| KP 100 0-160 mbar | 160 | |||||
| KP 100 0-250 mbar | 250 | |||||
| KP 100 0-400 mbar | 400 | |||||
| KP 100 0-600 mbar | 600 |
| Manometer series | Type | pmax (bar) | Connection | Temperature (oC) | Accuracy class | Installation position |
|---|---|---|---|---|---|---|
| RF 80 0-1 bar | Capsule | 1.6 | G 1/2 B | -20÷60 | 1.6 per 837-1 | vertical |
| RF 80 0-1.6 bar | 2.5 | |||||
| RF 80 0-2.5 bar | 4.0 | |||||
| RF 80 0-4 bar | 6.4 | |||||
| RF 80 0-6 bar | 9.6 | |||||
| RF 80 0-10 bar | 16.0 | |||||
| RF 80 0-25 bar | 40.0 |
| Manometer series | Type | pmax (bar) | Connection | Temperature (oC) | Accuracy class | Installation position |
|---|---|---|---|---|---|---|
| RF 100 0-1 bar | Capsule | 1.6 | G 1/2 B | -20÷60 | 1.6 per 837-1 | vertical |
| RF 100 0-1.6 bar | 2.5 | |||||
| RF 100 0-2.5 bar | 4.0 | |||||
| RF 100 0-4 bar | 6.4 | |||||
| RF 100 0-6 bar | 9.6 | |||||
| RF 100 0-10 bar | 16.0 | |||||
| RF 100 0-25 bar | 40.0 |

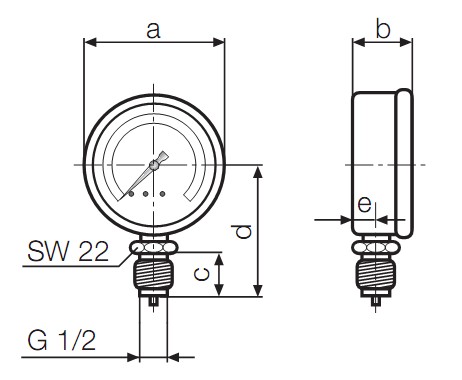

Dimensions manometers gas (mm)
For the images that aren't clear move the mouse over them to zoom.
| Type | a | b | c | d | e | Weight (kg) |
|---|---|---|---|---|---|---|
| KP 80 | 80 | 43.3 | 20 | 69 | 14.8 | 0.4 |
| KP 100 | 100 | 44 | 20 | 87 | 15.6 | 0.5 |
| RF 80 | 80 | 31 | 20 | 72 | 11.7 | 0.25 |
| RF 100 | 100 | 29.5 | 20 | 82 | 11 | 0.3 |

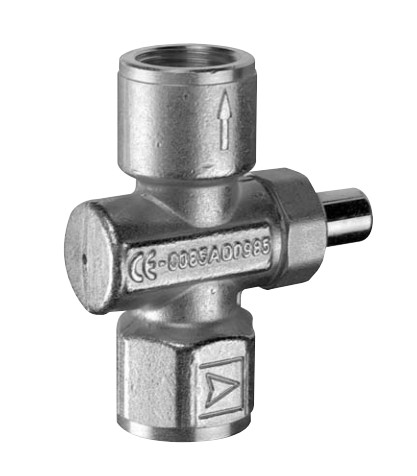

Push button cock - DKH
Manually operated shutoff device between measuring line and pressure gauge according to DIN 3537-1. In the normal state, the push-button cock is closed. Therefore, the pressure gauge is
permanently relieved of pressure. The push-button is pushed in order to apply pressure on the gauge and indicate the operating pressure.
- Connection: Rp 1/2.
- Max. operating pressure: 5 bar (500 kPa)
- Temperature range: -150C ÷ +700C
- Nickel-plated brass housing.

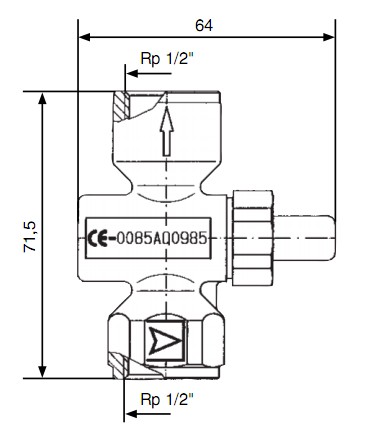

Dimensions: (mm)

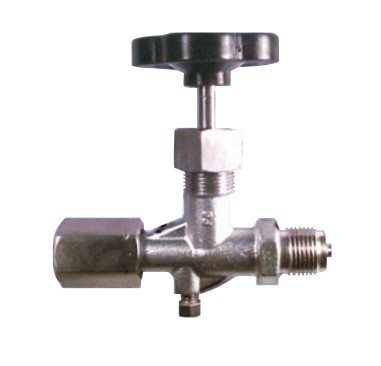

Pressure gauge shutoff valve - MAV
Manually operated shutoff and flow control device between measuring line and pressure gauge in accordance with DIN 16270.
- Connection: G 1/2 / G 1/2 B.
- Max. operating pressure: 100 bar (10.000 kPa)
- Temperature range: -50C ÷ +600C
- Brass housing.

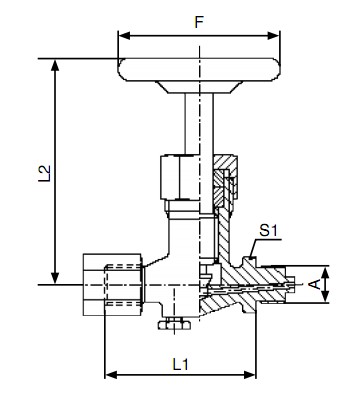

Dimensions: (mm)
For the images that aren't clear move the mouse over them to zoom.
Prices
| Code | Type | Prices without VAT |
|---|---|---|
| 217101 | Gas manometer KP80 0-25 mbar | 0.00 |
| 099028 | Gas manometer KP80 0-40 mbar | 0.00 |
| 103697 | Gas manometer KP80 0-60 mbar - In Stock | 0.00 |
| 082081 | Gas manometer KP80 0-100 mbar - In Stock | 0.00 |
| 104083 | Gas manometer KP80 0-160 mbar - In Stock | 0.00 |
| 077396 | Gas manometer KP80 0-250 mbar - In Stock | 0.00 |
| 104307 | Gas manometer KP80 0-400 mbar - In Stock | 0.00 |
| 103705 | Gas manometer KP80 0-600 mbar - In Stock | 0.00 |
| 248312 | Gas manometer KP100 0-25 mbar | 0.00 |
| 248311 | Gas manometer KP100 0-40 mbar | 0.00 |
| 248310 | Gas manometer KP100 0-60 mbar | 0.00 |
| 220054 | Gas manometer KP100 0-100 mbar | 0.00 |
| 247342 | Gas manometer KP100 0-160 mbar | 0.00 |
| 244612 | Gas manometer KP100 0-250 mbar | 0.00 |
| 230678 | Gas manometer KP100 0-400 mbar | 0.00 |
| 227467 | Gas manometer KP100 0-600 mbar | 0.00 |
| 119073 | Gas manometer RF80 0-1 bar - In Stock | 0.00 |
| 227146 | Gas manometer RF80 0-1,6 bar - In Stock | 0.00 |
| 217201 | Gas manometer RF80 0-2,5 bar - In Stock | 0.00 |
| 052415 | Gas manometer RF80 0-4 bar - In Stock | 0.00 |
| 217202 | Gas manometer RF80 0-6 bar | 0.00 |
| 227283 | Gas manometer RF80 0-10 bar | 0.00 |
| 248314 | Gas manometer RF80 0-25 bar | 0.00 |
| 240829 | Gas manometer RF100 0-1 bar | 0.00 |
| 240830 | Gas manometer RF100 0-1.6 bar | 0.00 |
| 248313 | Gas manometer RF100 0-2.5 bar | 0.00 |
| 241419 | Gas manometer RF100 0-4 bar | 0.00 |
| 230679 | Gas manometer RF100 0-6 bar | 0.00 |
| 247356 | Gas manometer RF100 0-10 bar | 0.00 |
| 245298 | Gas manometer RF100 0-25 bar | 0.00 |
| 033621 | Push button valve DKH - 5bar - In Stock | 0.00 |
| 230762 | Manometer shutoff valve MAV - 100 bar | 0.00 |
