>> Pressure regulators >> FRN
Zero pressure regulator FRN Dungs
- These pressure regulators FRN have an internal tap of regulator output pressure and external pulse and blower pressure connections.
- Input pressure up to 50 mbar (5 kPa).
- High flow rate.
- FRN has an adjustable setpoint spring which can be exchanged for different ranges.
- Sturdy, precise and sensitive regulation of input pressure (response pressure).
- The pressure regulator complies with EN 88 and DIN 3380.
- It does not contain any non-ferrous metals and is suitable for gases of up to max. 0.1% H2S. Suitable for gases of families 1, 2, 3 and other neutral gaseous media.
- The FRN series is no longer part of the Dungs product line and has been replaced by the FRNG series.
Technical specifications FRN zero pressure regulator
| Regulator type | Code | DN / Rp | Max. operating pressure pmax (mbar) | Inlet pressure range p1 (mbar) | Outlet pressure range p2 (mbar) | Working temperature (0C) |
|---|---|---|---|---|---|---|
| FRN 515 | 103044 | Rp 1 1/2 | 500 | 7.5 ÷ 50 | -3 ÷ 5 | -15 ÷ 70 |
| FRN 520 | 101287 | Rp 2 | ||||
| FRN 5040 | 244124 | DN 40 | ||||
| FRN 5050 | 241746 | DN 50 | ||||
| FRN 5065 | 241755 | DN 65 | ||||
| FRN 5080 | 241757 | DN 80 | ||||
| FRN 5100 | 241760 | DN 100 |

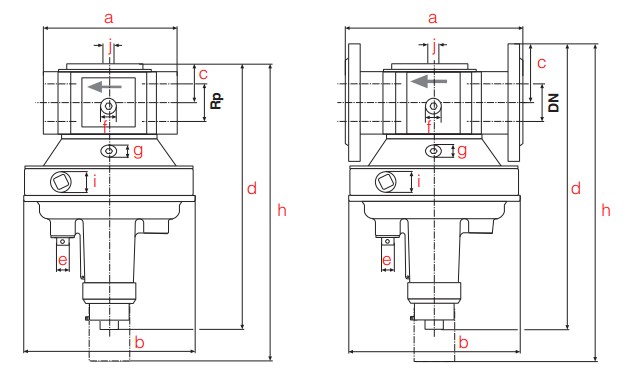

Dimensions FRN pressure regulator (mm)
| Regulator type | a | b | c | d | e | f | g | h | i | j | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FRN 515 | 150 | 195 | 40 | 285 | G 1/2 | G 1/4 | G 1/4 | 395 | G 1/2 | G 1/8 | 4.0 |
| FRN 520 | 170 | 250 | 47 | 345 | 480 | 6.0 | |||||
| FRN 5040 | 200 | 200 | 75 | 315 | 430 | 5.0 | |||||
| FRN 5050 | 230 | 230 | 82.5 | 375 | 510 | 7.5 | |||||
| FRN 5065 | 290 | 290 | 92.5 | 440 | 620 | 10.5 | |||||
| FRN 5080 | 310 | 310 | 100 | 440 | 620 | 13.0 | |||||
| FRN 5100 | 350 | 350 | 110 | 535 | 800 | 20.0 |

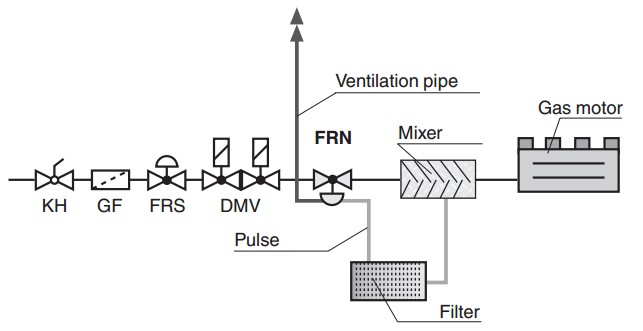

Application example - Zero pressure regulator FRN
The adjustment spring acts against the force due to weight of moving parts. The force due to weight is compensated as a factor of pretension of the adjustment spring.
The chamber between the working diaphragms must be connected with atmosphere (ventilation pipe).
A pressure compensation line (pulse) may be connected to the regulator dome.

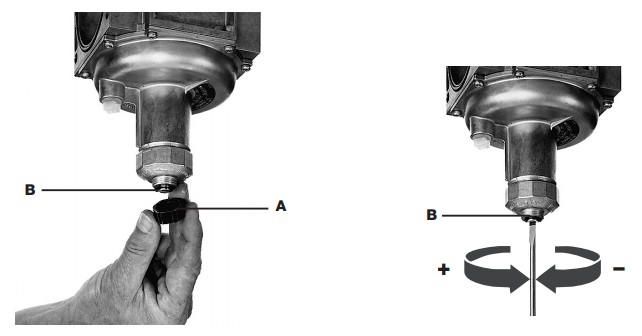

Adjustment of response pressure

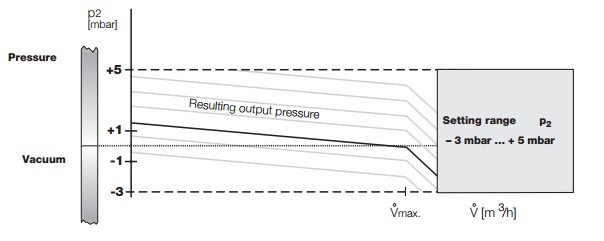

Factory setting, standard spring: p2 -3 ÷ 5 mbar.
1) Unscrew protective cap A
2) Adjustment (+) - Setting spindle B "turn clockwise" = increasing response pressure (setpoint) OR
3) Adjustment (-) - Setting spindle B "turn counter-clockwise" = reducing response pressure (setpoint)
4) Check setpoint
5) Screw on protective cap A
6) Attach lead seal.

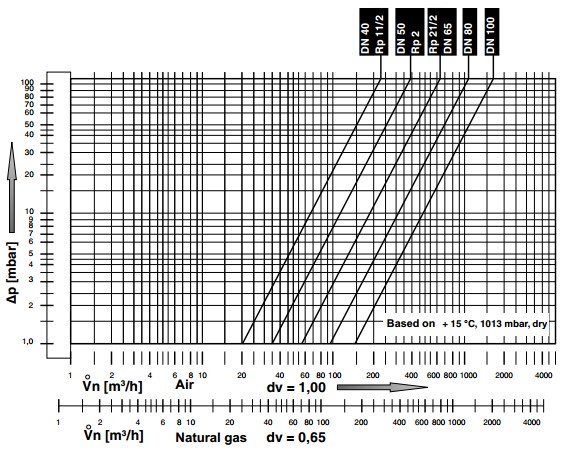

Flow diagram FRN Dungs
- For more drawings or details access the operation manual.
For the images that aren't clear move the mouse over them to zoom.
Prices zero pressure regulators
| Code | Type | Prices without VAT |
|---|---|---|
| 103044 | Zero pressure regulator FRN 515 | 0.00 |
| 101287 | Zero pressure regulator FRN 520 | 0.00 |
| 244124 | Zero pressure regulator FRN 5040 | 0.00 |
| 241746 | Zero pressure regulator FRN 5050 | 0.00 |
| 241755 | Zero pressure regulator FRN 5065 | 0.00 |
| 241757 | Zero pressure regulator FRN 5080 | 0.00 |
| 241760 | Zero pressure regulator FRNs 5100 | 0.00 |
In case the price is missing or for a list of discounts contact
us directly to receive an offer.
