Pressure gauge Geca for gas

Pressure gauge Geca
  • Measurement instruments that can be used as accessories for plumbing equipment and systems, heating systems, regulated equipement or subject to I.S.P.E.S.L. control.
  • There are two series available:
- Manometers with capsule element MP63, MP80, MP100 with a pressure range of 40 ÷ 600 mbar;
- Manometers with Bourdon spiral element: M63, M80, M100 with a pressure range of 4 ÷ 16 bar;
  • Suitable for measuring the pressure of liquid and gaseous fluids, provided they are not highly viscous, crystallizing or corrosive to copper or tin alloys.
  • Available in two different series of graduation: bar or mH2O (hydrometers).
  • They can be equiped with special GH valves with stuffing box, male through bolt or pushbutton, or with special cooling coils.


Technical features gas pressure gauges Geca

Manometer series Connection Type Scale (mbar) pmax static (bar) pmax fluctuating (bar) Temperature (0C) Precision class Degree of protection
GM040-63 1/4" MP 63 RM Capsule 40 30 27 -40 ÷ 70 EN 823-3 1.6 IP 31
GM060-63 60 45 40
GM100-63 100 75 67
GM160-63 160 120 107
GM250-63 250 188 167
GM400-63 400 300 267
GM600-63 600 450 400
GM040-80 3/8" MP 80 RM Capsule 40 30 27 -40 ÷ 70 EN 823-3 1.6 IP 31
GM060-80 60 45 40
GM100-80 100 75 67
GM160-80 160 120 107
GM250-80 250 188 167
GM400-80 400 300 267
GM600-80 600 450 400
GM040-100 1/2" MP 100 RM Capsule 40 30 27 -40 ÷ 70 EN 823-3 1.6 IP 31
GM060-100 60 45 40
GM100-100 100 75 67
GM160-100 160 120 107
GM250-100 250 188 167
GM400-100 400 300 267
GM600-100 600 450 400



Manometer series Connection Type Scale (bar) pmax static (bar) pmax fluctuating (bar) Temperature (0C) Precision class Degree of protection
GM004-63-BS 1/4" M 63 RM IR Bourdon 4 3.0 2.7 -40 ÷ 70 EN 837-1 2.5 IP 31
GM006-63-BS 6 4.5 4.0
GM010-63-BS 10 7.5 6.7
GM016-63-BS 16 12.0 10.7
GM004-80-BS 3/8" M 80 RM IR Bourdon 4 3.0 2.7 -40 ÷ 70 EN 837-1 2.5 IP 31
GM006-80-BS 6 4.5 4.0
GM010-80-BS 10 7.5 6.7
GM016-80-BS 16 12.0 10.7
GM004-100-BS 1/2" M 100 RM IR Bourdon 4 3.0 2.7 -40 ÷ 70 EN 837-1 2.5 IP 31
GM006-100-BS 6 4.5 4.0
GM010-100-BS 10 7.5 6.7
GM016-100-BS 16 12.0 10.7


Dimensions pressure gauge Geca (mm)

dimensions gas manometer 3
For the images that aren't clear move the mouse over them to zoom.

Type D G q a b h Weight (kg)
MP 63 RM 63 R 1/4" 14x14 11 50 31 0.165
MP 80 RM 80 G 3/8" 17x17 12 63 32 0.230
MP 100 RM 100 G 1/2" 22x22 14 77 38 0.415

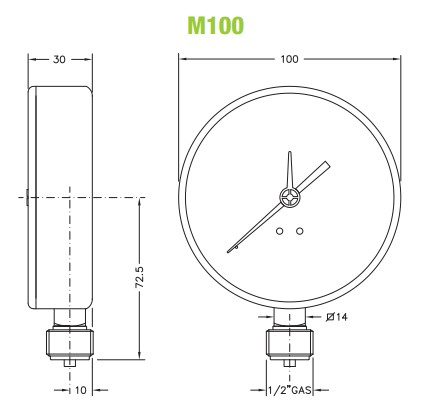

dimensions gas manometers 1 dimensions gas manometers 2



Manometer series M 63 M 80 M 100
Weight (kg) 0.128 0.128 0.242


Pressure gauge holder valve with stuffing box

Geca pressure gauge holder valve stuffing box
Their purpose is to isolate the pressure gauge from the rest of the system, whenever it is not necessary to check the pressure. The model with flange is required when the pressure gauge is installed in systems, boilers or other equipment subject to control based on I.S.P.E.S.L. standards. Maximum permissible pressure: 10 bar.

Code Connection Type Code Connection Type
GH008-NF G 1/4" without flange GH008-WF G 1/4" with flange
GH010-NF G 3/8" without flange GH010-WF G 3/8" with flange
GH015-NF G 1/2" without flange GH015-WF G 1/2" with flange


Pressure gauge holder valve with male through bolt

Geca pressure gauge holder valve through bolt
Their purpose is to isolate the pressure gauge from the rest of the system, whenever it is not necessary to check the pressure. Maximum permissible pressure: 3 bar.

Code Connection Type
GH008-MB G 1/4" without flange
GH010-MB G 3/8" without flange
GH015-MB G 1/2" without flange


Pressure gauge holder valve with pushbutton for gas

Geca pressure gauge holder with pushbutton
They protect the capsule pressure gauges, keeping them isolated from the system. To read the pressure gauge, press the valve button.

Code GH008 GH010 GH015
Connection G 1/4" G 3/8" G 1/2"


Prices gas manometers Geca

Code Capsule Manometers Prices without VAT
GM040-63 Gas manometer MP 63 RM - 40 mbar 0.00
GM060-63 Gas manometer MP 63 RM - 60 mbar 0.00
GM100-63 Gas manometer MP 63 RM - 100 mbar 0.00
GM160-63 Gas manometer MP 63 RM - 160 mbar 0.00
GM250-63 Gas manometer MP 63 RM - 250 mbar 0.00
GM400-63 Gas manometer MP 63 RM - 400 mbar 0.00
GM600-63 Gas manometer MP 63 RM - 600 mbar 0.00
GM040-80 Gas manometer MP 80 RM - 40 mbar 0.00
GM060-80 Gas manometer MP 80 RM - 60 mbar 0.00
GM100-80 Gas manometer MP 80 RM - 100 mbar 0.00
GM160-80 Gas manometer MP 80 RM - 160 mbar 0.00
GM250-80 Gas manometer MP 80 RM - 250 mbar 0.00
GM400-80 Gas manometer MP 80 RM - 400 mbar 0.00
GM600-80 Gas manometer MP 80 RM - 600 mbar 0.00
GM040-100 Gas manometer MP 100 RM - 40 mbar 0.00
GM060-100 Gas manometer MP 100 RM - 60 mbar 0.00
GM100-100 Gas manometer MP 100 RM - 100 mbar 0.00
GM160-100 Gas manometer MP 100 RM - 160 mbar 0.00
GM250-100 Gas manometer MP 100 RM - 250 mbar 0.00
GM400-100 Gas manometer MP 100 RM - 400 mbar 0.00
GM600-100 Gas manometer MP 100 RM - 600 mbar 0.00
Bourdon manometers
GM004-63-BS Gas manometer M 63 RM - 4 bar 0.00
GM006-63-BS Gas manometer M 63 RM - 6 bar 0.00
GM010-63-BS Gas manometer M 63 RM - 10 bar 0.00
GM016-63-BS Gas manometer M 63 RM - 16 bar 0.00
GM004-80-BS Gas manometer M 80 RM - 4 bar 0.00
GM006-80-BS Gas manometer M 80 RM - 6 bar 0.00
GM010-80-BS Gas manometer M 80 RM - 10 bar 0.00
GM016-80-BS Gas manometer M 80 RM - 16 bar 0.00
GM004-100-BS Gas manometer M 100 RM - 4 bar 0.00
GM006-100-BS Gas manometer M 100 RM - 6 bar 0.00
GM010-100-BS Gas manometer M 100 RM - 10 bar 0.00
GM016-100-BS Gas manometer M 100 RM - 16 bar 0.00
In case the price is missing or for a list of discounts contact us directly to receive an offer.
