Safety pressure relief FRSBV Dungs
- These safety blow-off valves FRSBV Dungs are spring-loaded with an adjustable response pressure.
- The safety blow-off valve corresponds to DIN 33821.
- FRSBV is used for gas burners and gas equipment.
- Suitable for gases of gas families 1, 2, 3 and other neutral gaseous media.
- Free of non-ferrous metals, suitable for gases up to maximum 0.1% H2S.

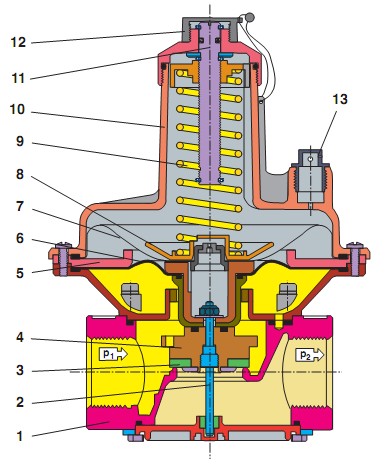

FRSBV sectional drawing
For the images that aren't clear move the mouse over them to zoom.
| FRSBV Safety blow-off valve | |||||||
|---|---|---|---|---|---|---|---|
| 1 | Housing | 6 | Operating diaphragms | 10 | Cover | ||
| 2 | Spindle | 7 | Safety diaphragms | 11 | Adjuster | ||
| 3 | Sealing ring | 8 | Diaphragm disk | 12 | Protective cap | ||
| 4 | Control disk | 9 | Reference value spring | 13 | Vent plug | ||
| 5 | Intermediate disk | ||||||
Technical specifications blow-off valve
| Type | Code | DN / Rp | pmax (mbar) | pmin (mbar) | Working temperature (oC) |
|---|---|---|---|---|---|
| FRSBV 1010 | 226284 | Rp 1 | 1000 | 20 | -15 ÷ 70 |
| Spring type | Blue | Yellow (standard) | Grey |
|---|---|---|---|
| Code | 226381 | 226382 | 226383 |
| Pressure range (mbar) | 20 ÷ 100 | 70 ÷ 350 | 300 ÷ 1000 |

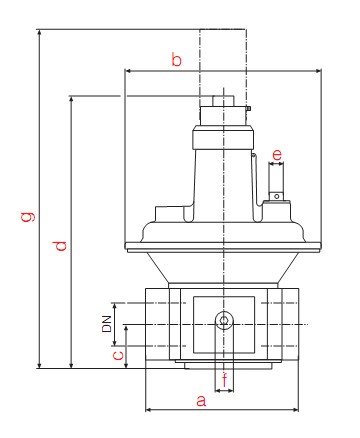

Dimensions FRSBV safety pressure relief (mm)
| Type | a | b | c | d | e | f | g | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| FRSBV 1010 | 110 | 145 | 33 | 190 | G 1/4 | G 1/4 | 310 | 1.2 |

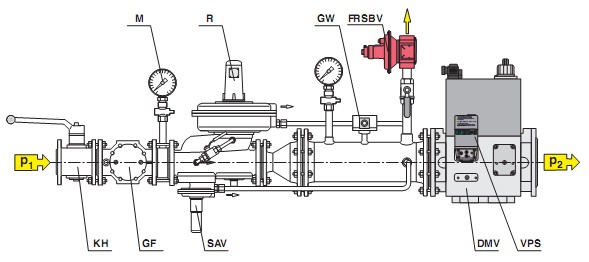

FRSBV application example
| Control line: | |||||||
|---|---|---|---|---|---|---|---|
| KH | Ball valve | R | Gas pressure regulators | FRSBV | Safety pressure relief valve | ||
| GF | Gas filter | SAV | Safety slam-shut valve | DMV | Double solenoid valve | ||
| M | Manometer | GW | Gas pressure switch | VPS | Valve proving system | ||

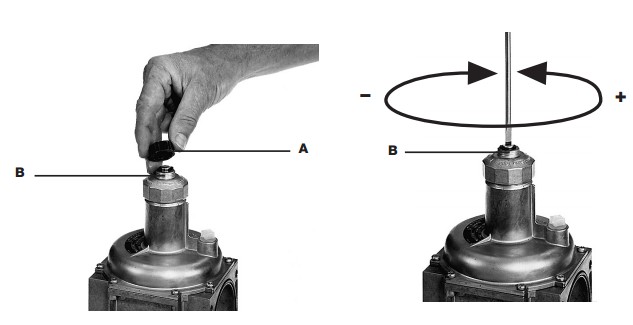

Setting the response pressure
1) Unscrew protective cap A
2) Adjustment (+) - Setting spindle B "turn clockwise" = increasing response pressure (setpoint) OR
3) Adjustment (-) - Setting spindle B "turn counter-clockwise" = reducing response pressure (setpoint)
4) Check setpoint
5) Screw on protective cap A
6) Attach lead seal

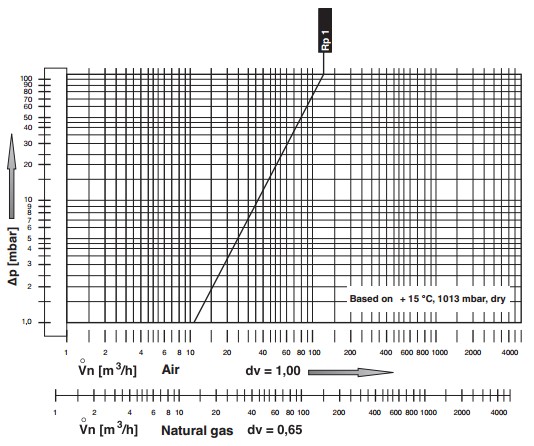

Flow diagram FRSBV Dungs
- For more drawings or details access the datasheet
For the images that aren't clear move the mouse over them to zoom.
Prices blow-off valve
| Code | Type | Prices without VAT |
|---|---|---|
| 226284 | Safety pressure relief FRSBV 1010 | 0.00 |
In case the price is missing or for a list of discounts contact
us directly to receive an offer.
