>> Solenoid valves >> LGV
LGV Dungs gas vent valve - single-stage
- These solenoid vent valves LGV are normally open (N.O.) and are used for the shut-off and release of upstream gas volumes. Automatic pressure relief as per EN 161 for gas burners and gas appliances.
- Maximum operating pressure: 500 mbar (50 kPa).
- Class A, Group 2 as per EN 16304.
- Fast closing, fast opening, with a switching rate of max. 1000/h.
- Mountable closed position signal contact to monitor closed position of valve.
- Degree of protection IP 54, on request IP 65.
- It does not contain any non-ferrous metals, suitable for gases up to max. 0.1 vol % H2S, dry. Suitable for gases of families 1, 2, 3 and other neutral gaseous media.
Technical specifications LGV vent valves
| Valve type | Code | Voltage (V) | Degree of protection | Rp/DN | pmax operation (mbar) | Solenoid no. | Ambient temp. (oC) |
|---|---|---|---|---|---|---|---|
| Gas valve LGV 507/5 | 119271 | 230 V (AC) | IP 54 | Rp 3/4 | 500 | 100 | -15÷60 |
| Gas valve LGV 507/5 | 208106 | 230 V (AC) | IP 65 | Rp 3/4 | |||
| Gas valve LGV 5020/5 | 119594 | 230 V (AC) | IP 54 | DN 20 | |||
| Gas valve LGV 507/5 | 156630 | 110 V (AC) | IP 54 | Rp 3/4 | |||
| Gas valve LGV 507/5 | 208382 | 24-28 V (DC) | IP 65 | Rp 3/4 |

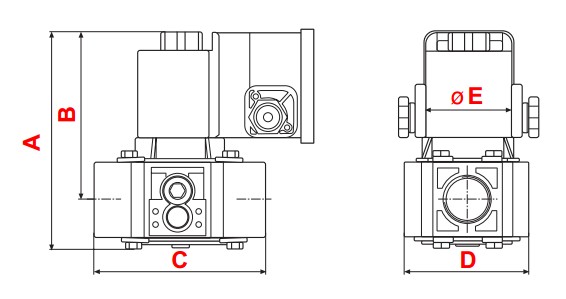

Dimensions LGV valve (mm)
| Valve type | A | B | C | D | E | Weight (kg) |
|---|---|---|---|---|---|---|
| Solenoid valve LGV 507/5 230 V IP 54 | 124.5 | 97 | 100 | 73 | 50 | 1.3 |
| Solenoid valve LGV 507/5 230 V IP 65 | 124.5 | 97 | 100 | 73 | 50 | 1.3 |
| Solenoid valve LGV 507/5 110 V IP 54 | 124.5 | 97 | 100 | 73 | 50 | 1.3 |
| Solenoid valve LGV 507/5 24-28 V IP 65 | 124.5 | 97 | 100 | 73 | 50 | 1.3 |
| Valve type | A | B | C | D | E | Weight (kg) |
|---|---|---|---|---|---|---|
| Solenoid valve LGV 5020/5 230 V IP 54 | 124.5 | 97 | 152 | 105 | 50 | 3.2 |

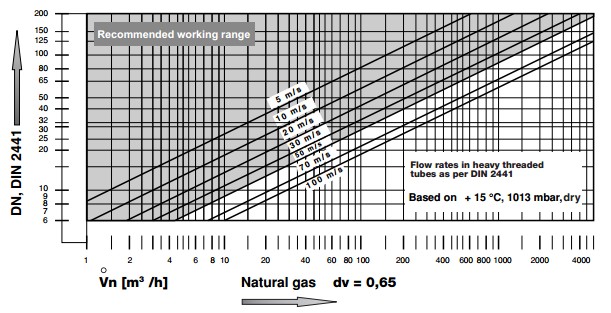

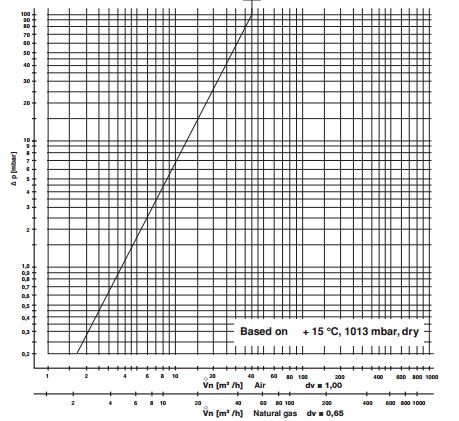

Flow diagrams solenoid vent valves LGV
- For more drawings or details access the operation manual.
For the images that aren't clear move the mouse over them to zoom.
Prices solenoid valves LGV
| Code | Type | Prices without VAT |
|---|---|---|
| 119271 | Vent valve LGV 507/5 230V IP54 | 0.00 |
| 208106 | Vent valve LGV 507/5 230V IP65 | 0.00 |
| 119594 | Vent valve LGV 5020/5 230V IP54 | 0.00 |
| 156630 | Vent valve LGV 507/5 110V IP54 | 0.00 |
| 208382 | Vent valve LGV 507/5 24-28 VDC | 0.00 |
In case the price is missing or for a list of discounts contact
us directly to receive an offer.
