SV Dungs gas solenoid valve - one-stage
- These solenoid valves SV are used for securing, limiting, shutting off and releasing the gas supply to gas burners and gas burning appliances.
- Normally closed, fast closing time, under 1 second; closed position contact retrofittable.
- SV and SV-D series have a fast-open, SV-DLE slow-open with adjustable fast stroke for starting gas flow.
- SV-D and SV-DLE have a manual limitation of gas flow by regulation.
- Maximum pressure up to 500 mbar and a degree of protection IP 65.
- Pipe thread on inlet side, threaded flange on outlet side. Threaded flange on inlet site is retrofittable
- Free of non-ferrous metals, suitable for gases up to 0.1% vol. H2S, suitable for gases of gas families 1, 2, 3 and other inert gaseous media.
- Note: This series is no longer part of the Dungs main product line.
Technical specifications SV solenoid valves
For the images that aren't clear move the mouse over them to zoom.
| Gas valve SV | |||||||
|---|---|---|---|---|---|---|---|

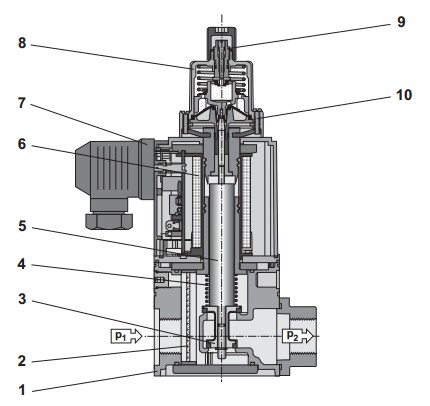

| 1 | Housing | 5 | Plunger | 8 | Hydraulic brake | ||
| 2 | Strainer | 6 | Solenoid coil | 9 | Adjustment: fast stroke | ||
| 3 | Valve disc | 7 | Electrical connection | 10 | Adjustment: main flow | ||
| 4 | Closing spring | ||||||
Functional description SV valve:
- The electromagnetic drive opens against closing spring 4. The stroke of plunger 5 can be limited. The hydraulic brake 8 permits slow opening. The fast stroke 9 is adjustable.
- If the power supply (operating voltage) is interrupted, the closing spring 4 closes the valve within < 1 second.
- The closed position of the valve can be monitored by a retrofittable closed position signal contact.
Technical specifications SV valve
| Valve type | Code | Rp | Voltage (V) | Maximum operating pressure pmax (mbar) | Pmax (VA) | Ambient temp. (0C) | Opening time (s) |
|---|---|---|---|---|---|---|---|
| Gas valve SV 505 | 231488 | Rp 1/2 | 230 V (AC) | 500 | 20 | -15÷60 | <1 |
| Gas valve SV 507 | 240315 | Rp 3/4 | 20 | ||||
| Gas valve SV 510 | 231489 | Rp 1 | 25 | ||||
| Gas valve SV 515 | 243818 | Rp 1 1/2 | 25 | ||||
| Gas valve SV 520 | 240318 | Rp 2 | 50 |
| Valve type | Code | Rp | Voltage (V) | Maximum operating pressure pmax (mbar) | Pmax (VA) | Ambient temp. (0C) | Opening time (s) |
|---|---|---|---|---|---|---|---|
| Gas valve SV-D 505 | 240321 | Rp 1/2 | 230 V (AC) | 500 | 20 | -15÷60 | <1 |
| Gas valve SV-D 507 | 240324 | Rp 3/4 | 20 | ||||
| Gas valve SV-D 510 | 240326 | Rp 1 | 25 | ||||
| Gas valve SV-D 515 | 243820 | Rp 1 1/2 | 25 | ||||
| Gas valve SV-D 520 | 240332 | Rp 2 | 50 |
| Valve type | Code | Rp | Voltage (V) | Maximum operating pressure pmax (mbar) | Pmax (VA) | Ambient temp. (0C) | Opening time (s) |
|---|---|---|---|---|---|---|---|
| Gas valve SV-DLE 505 | 240334 | Rp 1/2 | 230 V (AC) | 500 | 20 | -15÷60 | approx. 20 |
| Gas valve SV-DLE 507 | 240337 | Rp 3/4 | 20 | ||||
| Gas valve SV-DLE 510 | 240339 | Rp 1 | 25 | ||||
| Gas valve SV-DLE 515 | 243821 | Rp 1 1/2 | 25 | ||||
| Gas valve SV-DLE 520 | 240345 | Rp 2 | 50 |

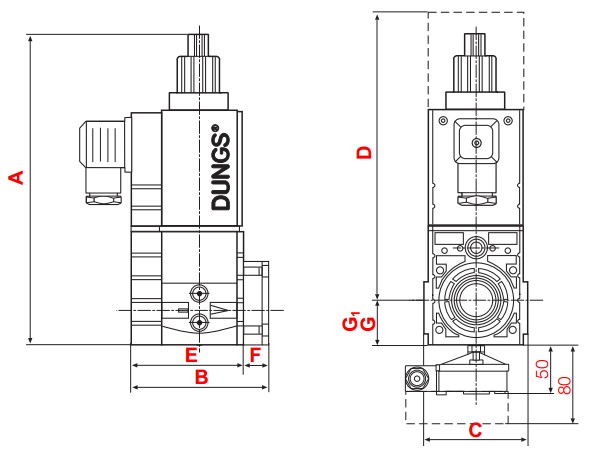

Dimensions SV gas valves (mm)
| Valve type | A | B | C | D | E | F | G | G1 | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| Gas solenoid valve SV 505 | 156 | 96 | 62 | 215 | 75 | 21 | 23 | 38 | 1.6 |
| Gas solenoid valve SV 507 | 156 | 96 | 62 | 215 | 75 | 21 | 23 | 38 | 1.6 |
| Gas solenoid valve SV 510 | 219 | 119 | 87 | 277 | 95 | 24 | 40 | 40 | 4.2 |
| Gas solenoid valve SV 515 | 219 | 119 | 87 | 277 | 95 | 24 | 40 | 40 | 4.2 |
| Gas solenoid valve SV 520 | 238 | 165 | 114 | 370 | 126 | 39 | 47 | 47 | 6.9 |
| Valve type | A | B | C | D | E | F | G | G1 | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| Gas solenoid valve SV-D 505 | 156 | 96 | 62 | 215 | 75 | 21 | 23 | 38 | 1.6 |
| Gas solenoid valve SV-D 507 | 156 | 96 | 62 | 215 | 75 | 21 | 23 | 38 | 1.6 |
| Gas solenoid valve SV-D 510 | 219 | 119 | 87 | 277 | 95 | 24 | 40 | 40 | 4.2 |
| Gas solenoid valve SV-D 515 | 219 | 119 | 87 | 277 | 95 | 24 | 40 | 40 | 4.2 |
| Gas solenoid valve SV-D 520 | 238 | 165 | 114 | 370 | 126 | 39 | 47 | 47 | 6.9 |
| Valve type | A | B | C | D | E | F | G | G1 | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| Gas solenoid valve SV-DLE 505 | 205 | 96 | 62 | 215 | 75 | 21 | 23 | 38 | 1.7 |
| Gas solenoid valve SV-DLE 507 | 266 | 119 | 87 | 215 | 75 | 21 | 23 | 38 | 1.7 |
| Gas solenoid valve SV-DLE 510 | 266 | 119 | 87 | 277 | 95 | 24 | 40 | 40 | 4.3 |
| Gas solenoid valve SV-DLE 515 | 266 | 119 | 87 | 277 | 95 | 24 | 40 | 40 | 4.3 |
| Gas solenoid valve SV-DLE 520 | 284 | 165 | 114 | 370 | 126 | 39 | 47 | 47 | 7.0 |
D - Space required for changing solenoid
G - Standard
G1 - Mounting of the limit stop contact

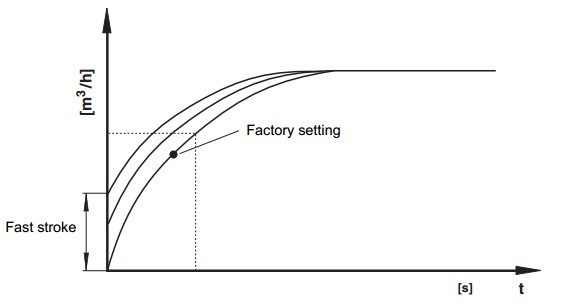

Rapid stroke adjustment V start for SV-DLE
'Factory setting: Rapid stroke not adjusted
1) Unscrew adjustment cap from the hydraulic brake unit.
2) Turn adjustment cap over and use as a tool.
3) Turn anti-clockwise = increase rapid stroke (+).

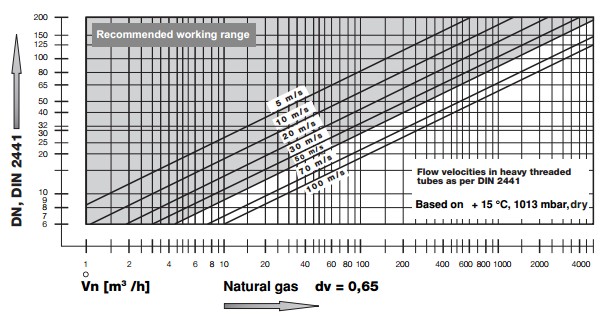

Flow diagrams solenoid valve SV
- For more drawings or details access the operation manual.
For the images that aren't clear move the mouse over them to zoom.
