Double solenoid gas valves DMV 50025-50050 Dungs
- These double solenoid valves DMV 50025 and DMV 50050 integrate two solenoid valves in one compact fitting and are used where two single valves were mounted previously. In connection with Dungs gas regulators and additional components, a wide variety of regulating tasks can be performed.
- Two A valves in one housing and high flow rates.
- Maximum operating pressure up to 5 bar, standard degree of protection IP 54, ambient temperature -15÷600C.
- Fast opening and fast closing, under 1 second. Electric activation: separately opening.
- Low power consumption through power switching.
- Sieve installed.
- Suitable for gases of families 1, 2, 3 and other neutral gaseous media.

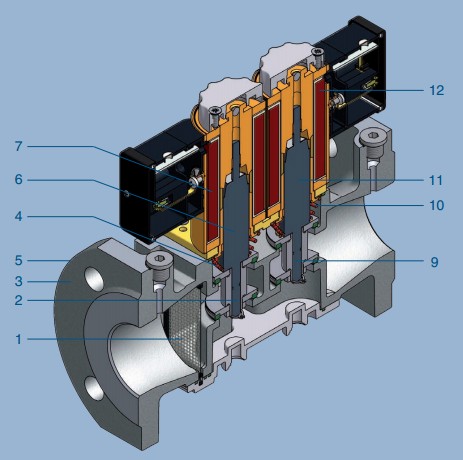

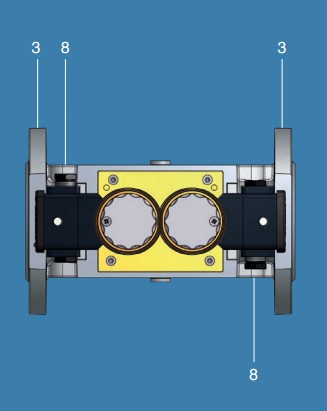

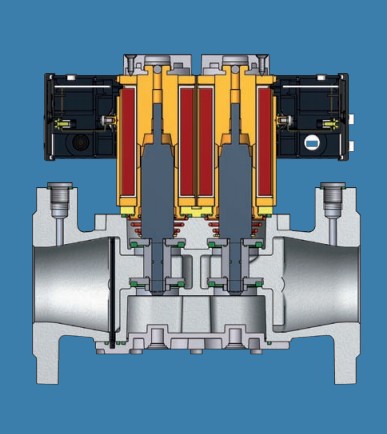

Sectional drawings DMV 50025 / 50050 solenoid valves
For the images that aren't clear move the mouse over them to zoom.
| Gas valve DMV 50050 | |||||||
|---|---|---|---|---|---|---|---|
| 1 | Strainer | 5 | Housing | 9 | Valve V2 | ||
| 2 | Valve V1 | 6 | Plunger V1 | 10 | Closing spring V2 | ||
| 3 | Flange | 7 | Solenoid V1 | 11 | Plunger V2 | ||
| 4 | Closing spring V1 | 8 | Electrical connection | 12 | Solenoid V2 | ||
Technical specifications DMV electromagnetic valves
| Valve type | Code | DN | Voltage (V) | pmax (mbar) | Δpmax (mbar) | Solenoid no. |
|---|---|---|---|---|---|---|
| Double valve DMV 50025 S02 | 256446 | DN 25 | 230 V (AC) | 5000 | 500 | 152/P |
| Double valve DMV 50050 S02 | 254849 | DN 50 | ||||
| Double valve DMV 50025 S02 | 255973 | DN 25 | 24 V (DC) | |||
| Double valve DMV 50050 S02 | 251762 | DN 50 |

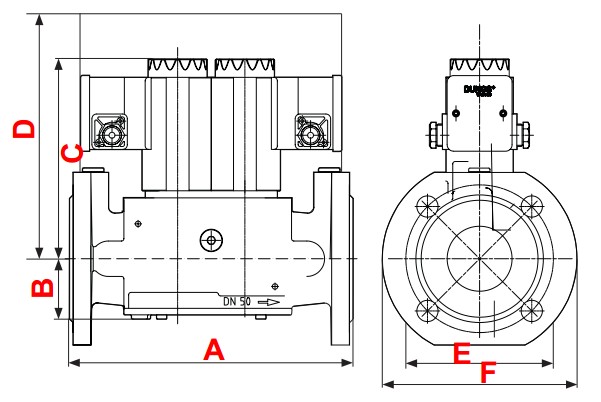

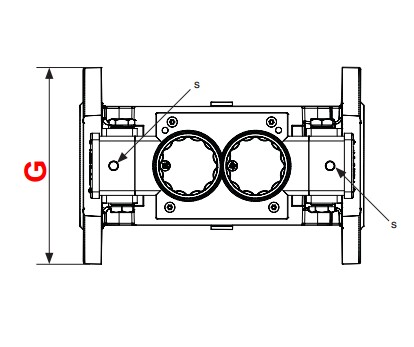

Dimensions valves DMV (mm)
| Valve type | A | B | C | D | E | F | Weight (kg) |
|---|---|---|---|---|---|---|---|
| Double solenoid valve DMV 50025 S02 | 240 | 51 | 170 | 270 | 102 | 116 | 8.1 |
| Double solenoid valve DMV 50050 S02 | 240 | 51 | 170 | 270 | 102 | 165 | 8.1 |
D = Space requirements for fitting solenoid
S = Power supply display

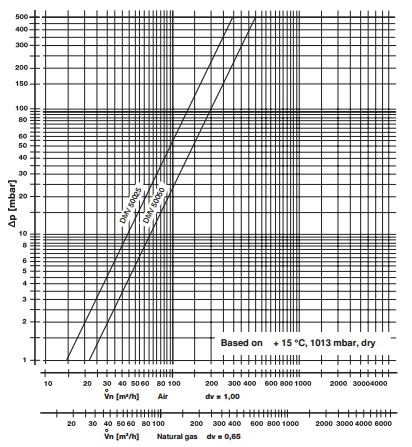

Flow diagram gas valve DMV
- For more drawings or details access the operation manual.
For the images that aren't clear move the mouse over them to zoom.
Preturi electrovalve de gaz DMV
| Code | Type | Prices without VAT |
|---|---|---|
| 256446 | Double solenoid gas valve DMV 50025 S02 230 VAC | 0.00 |
| 255973 | Double solenoid gas valve DMV 50025 S02 24 VDC | 0.00 |
| 254849 | Double solenoid gas valve DMV 50050 S02 230 VAC | 0.00 |
| 251762 | Double solenoid gas valve DMV 50050 S02 24 VDC | 0.00 |
In case the price is missing or for a list of discounts contact
us directly to receive an offer.
