MVD Dungs gas solenoid valve, one-stage - 200/360 mbar

Solenoid valve MVD
  • These solenoid valves MVD/5, MVDLE/5, MV/4 are used for securing, limiting, shutting off and releasing gas supply to gas burners and gas appliances.
  • Normally closed, single-stage, fast closing, up to 1 second.
  • MV and MVD are fast opening, MVDLE is slow opening and with opening time adjustment with fast stroke range.
  • MVD and MVDLE series have main volume adjustment.
  • Maximum operating pressure up to 200 or 360 mbar (200/360 kPa), ambient temperature is -15 ÷ 60 oC; standard degree of protection IP 54 (some models are built with IP 65).
  • Mountable closed position signal contact to monitor closed position of valve (.../5).
  • MV/4 Range of application: for large breaking capacities, e.g. pulsed firing.
  • Reliable function, rugged and maintenance-free.
  • Suitable for gases of families 1, 2, 3 and other neutral gaseous media. On request, design without non-ferrous metals.

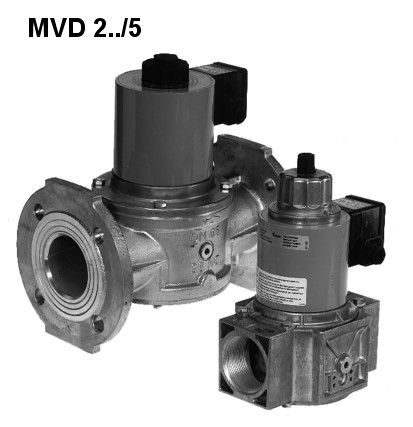

Solenoid valve MV/4 Solenoid valve MVD/5


Sectional drawings for MVD, MV-DLE electromagnetic valves

Sectional drawing MVDLE-1 Sectional drawing MVDLE-2
For the images that aren't clear move the mouse over them to zoom.

Gas valve MVDLE
1 Housing 5 Armature 8 Hydraulic brake
2 Sieve 6 Solenoid coil 9 Setting Fast stroke
3 Valve plate 7 Electrical connection 10 Setting Main volume
4 Closing spring

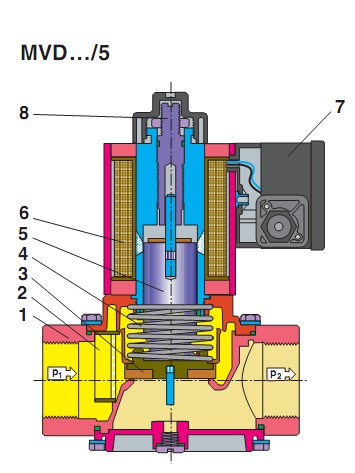

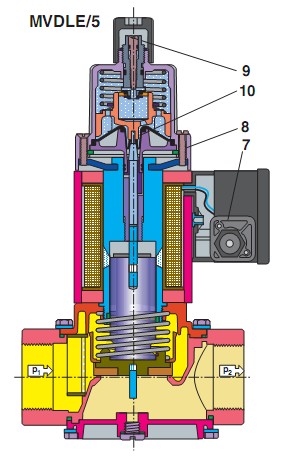

Sectional drawing MVD Sectional drawing MVDLE-3



Gas valve MVD / MVDLE
1 Housing 5 Armature 8 Setting Main volume
2 Sieve 6 Solenoid coil 9 Setting Fast stroke
3 Valve plate 7 Electrical connection 10 Setting Hydraulic brake
4 Closing spring
Functional description MVD / MVDLE:
  • The electromagnetic drive opens against the force of the closing spring 4.
  • The stroke of armature 5 can be limited by the setting screw 8.
  • The hydraulic brake 10 permits slow opening. Fast stroke 9 can be adjusted.
  • If the auxiliary power is interrupted (operating voltage), closing spring 4 closes the valve within 1 second.
  • The closed position of the valve can be monitored by a mountable closed position signal contact.


Technical specifications MVD valves

Valve type
230 V (AC)		 Code Rp Voltage (V) pmax (mbar) Solenoid no. Opening time (s) Degree of protection
Gas valve MVD 203/5 108571 Rp 3/8 230 V (AC) 360 100 <1 IP 54
Gas valve MVD 205/5 013102 Rp 1/2 360 100
Gas valve MVD 207/5 013227 Rp 3/4 200 150
121962 360 200
Gas valve MVD 210/5 013490 Rp 1 360 200
Gas valve MVD 210/5 S02* 212267 200 200
Gas valve MVD 215/5 015446 Rp 1 1/2 200 280
129977 360 300
Gas valve MVD 215/5 S02 163050 200 300
Gas valve MVD 220/5 011767 Rp 2 200 300
Gas valve MVD 220/5 S02 212214 200 300
Gas valve MVD 225/5 119701 Rp 2 1/2 200 400
* Biogas possible for < 0.1 vol % H2S.

Valve type
230 V (AC)		 Code DN Voltage (V) pmax (mbar) Solenoid no. Opening time (s) Degree of protection
Gas valve MVD 2040/5 111146 DN 40 230 V (AC) 200 280 <1 IP 54
119906 360 300
Gas valve MVD 2040/5 S02 209533 200 300
Gas valve MVD 2050/5 111187 DN 50 300
208236 300 IP 65
Gas valve MVD 2050/5 S02 180610 300 IP 54
Gas valve MVD 2065/5 157230 DN 65 400
Gas valve MVD 2065/5 S02 169390 400
Gas valve MVD 2080/5 169400 DN 80 500
246899 500 IP 65
Gas valve MVD 2080/5 S02 212196 500 IP 54
Gas valve MVD 2100/5 169410 DN 100 550
208233 550 IP 65
Gas valve MVD 2100/5 S02 212371 550 IP 54
Gas valve MVD 2125/5 159830 DN 125 60 E
Gas valve MVD 2125/5 S02 198970 60 E
Gas valve MVD 2150/5 160050 DN 150 61 E
Gas valve MVD 2150/5 S02 212638 61 E
Gas valve MVD 2200 213892 DN 200 70 E



Valve type
110 V (AC)		 Code Rp/DN Voltage (V) pmax (mbar) Solenoid no. Opening time(s) Degree of protection
Gas valve MVD 205/5 181190 Rp 1/2 110 V (AC) 360 100 <1 IP 54
Gas valve MVD 207/5 164920 Rp 3/4 200 200
Gas valve MVD 210/5 195520 Rp 1 200
Gas valve MVD 215/5 195530 Rp 1 1/2 300
Gas valve MVD 220/5 195540 Rp 2 300
Gas valve MVD 225/5 211896 Rp 2 1/2 400
Gas valve MVD 2040/5 211897 DN 40 280
Gas valve MVD 2065/5 210323 DN 65 400
Gas valve MVD 2080/5 157090 DN 80 500
Gas valve MVD 2100/5 209038 DN 100 550



Valve type
24-28 V (DC)		 Code Rp/DN Voltage (V) pmax (mbar) Solenoid no. Opening time (s) Degree of prot.
Safety valve MVD 203/5 233118 Rp 3/8 24-28 V (DC) 200 100 <1 IP 65
Safety valve MVD 205/5 204780 Rp 1/2 100
Safety valve MVD 207/5 191030 Rp 3/4 150
Safety valve MVD 2050/5 208811 DN 50 300
Safety valve MVD 2065/5 172250 DN 65 400
Safety valve MVD 2065/5 S02 247465 400
Safety valve MVD 2080/5 172260 DN 80 500
Safety valve MVD 2080/5 S02 247463 500
Safety valve MVD 2100/5 172270 DN 100 550
Safety valve MVD 2100/5 S02 247462 550
Safety valve MVD 2125/5 S02 247464 DN 125 60 E IP 54
Safety valve MVD 2150/5 S02 231748 DN 150 61 E


Technical specifications MV valves

Valve type
230 V (AC)		 Code Rp Voltage (V) pmax (mbar) Solenoid no. Opening time (s) Degree of protection
Safety valve MV 205/4 251279 Rp 1/2 230 V (AC) 200 100 <1 IP 54
Safety valve MV 207/4 251280 Rp 3/4 200
Safety valve MV 210/4 251281 Rp 1 200
Safety valve MV 215/4 251282 Rp 1 1/2 300
Safety valve MV 220/4 251283 Rp 2 300


Technical specifications MVDLE valves

Valve tpye
230 V (AC)		 Code Rp Voltage (V) pmax (mbar) Solenoid no. Opening time (s) Degree of prot.
Safety valve MVDLE 203/5 108597 Rp 3/8 230 V (AC) 360 100 20 IP 54
Safety valve MVDLE 205/5 013284 Rp 1/2 360 100
Safety valve MVDLE 207/5 013276 Rp 3/4 360 200
Safety valve MVDLE 210/5 013524 Rp 1 360 200
Safety valve MVDLE 215/5 015412 Rp 1 1/2 200 280
122002 360 300
Safety valve MVDLE 220/5 011775 Rp 2 200 300
Safety valve MVDLE 225/5 118935 Rp 2 1/2 200 400



Valve type
230 V (AC)		 Code DN Voltage (V) pmax (mbar) Solenoid no. Opening time (s) Degree of protection
Safety valve MVDLE 2040/5 111914 DN 40 230 V (AC) 200 280 20 IP 54
111153 360 300
Safety valve MVDLE 2050/5 111195 DN 50 200 300
Safety valve MVDLE 2065/5 170930 DN 65 400
Safety valve MVDLE 2080/5 170940 DN 80 500
Safety valve MVDLE 2100/5 170950 DN 100 550



Valve type
110 V (AC)		 Code Rp Voltage (V) pmax (mbar) Solenoid no. Opening time (s) Degree of protection
Safety valve MVDLE 203/5 226347 Rp 3/8 110 V (AC) 360 100 20 IP 54
Safety valve MVDLE 205/5 247481 Rp 1/2 200 100
Safety valve MVDLE 210/5 195550 Rp 1 360 200


Dimensions solenoid valves MVD / MVDLE (mm)

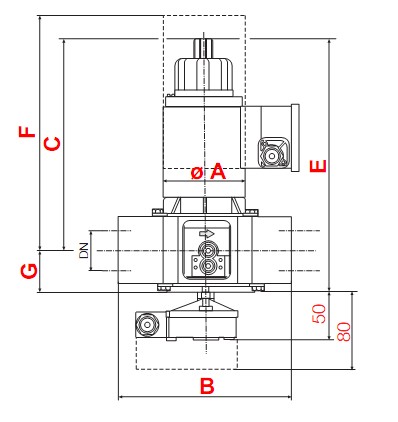

dimensions MVD-1



Valve type A B C D* E F G Weight (kg)
Safety solenoid valve MVD 203/5 50 60 90 60 113 140 23 0.85
Safety solenoid valve MVD 205/5 50 80 90 75 113 150 23 1.00
Safety solenoid valve MVD 207/5 - 200 mbar 60 100 135 80 160 190 25 1.75
Safety solenoid valve MVD 207/5 - 360 mbar 75 100 135 85 160 200 25 2.40
Safety solenoid valve MVD 210/5 75 110 135 90 165 200 30 2.45
Safety solenoid valve MVD 215/5 - 200 mbar 80 150 170 116 215 255 45 4.30
Safety solenoid valve MVD 215/5 - 360 mbar 95 150 170 116 215 260 45 5.40
Safety solenoid valve MVD 220/5 95 170 175 130 225 265 50 5.90
Safety solenoid valve MVD 225/5 115 230 220 154 280 325 55 10.90
* D = Maximum width

Valve type A B C D E F G Weight (kg)
Safety solenoid valve MV 205/5 50 80 90 75 113 150 23 1.00
Safety solenoid valve MV 207/5 75 100 135 85 160 200 25 1.75
Safety solenoid valve MV 210/5 75 110 135 90 165 200 30 2.45
Safety solenoid valve MV 215/5 95 150 170 116 215 260 45 4.30
Safety solenoid valve MV 220/5 95 170 175 130 225 265 50 5.90



dimensions MVD-1



Valve type A B C D E F G Weight (kg)
Safety solenoid valve MVDLE 203/5 50 60 135 75 155 190 20 0.95
Safety solenoid valve MVDLE 205/5 50 80 135 75 155 200 20 1.10
Safety solenoid valve MVDLE 207/5 75 100 165 85 190 190 25 2.55
Safety solenoid valve MVDLE 210/5 75 110 165 90 200 190 25 2.75
Safety solenoid valve MVDLE 215/5 - 200 mbar 80 150 205 116 245 255 40 4.40
Safety solenoid valve MVDLE 215/5 - 360 mbar 95 150 205 116 245 255 40 5.50
Safety solenoid valve MVDLE 220/5 95 170 205 130 250 255 45 6.20
Safety solenoid valve MVDLE 225/5 115 230 295 165 350 320 55 11.40

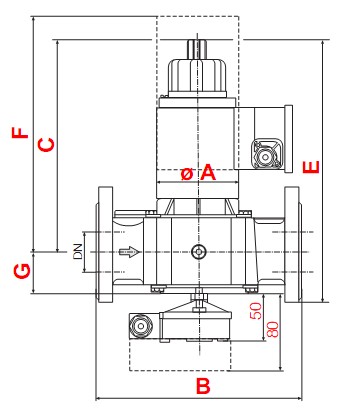

dimensions MVD-2



Valve type A B C D E F G Weight (kg)
Solenoid valve MVD 2040/5 - 200 mbar 80 200 170 150 235 255 45 6.8
Solenoid valve MVD 2040/5 - 360 mbar 95 200 170 150 235 255 45 7.0
Solenoid valve MVD 2050/5 95 230 171 165 245 255 52 7.7
Solenoid valve MVD 2065/5 115 290 221 185 315 330 55 12.7
Solenoid valve MVD 2080/5 130 310 250 200 340 375 70 18.5
Solenoid valve MVD 2100/5 150 350 310 240 410 480 85 31.0



Valve type A B C D E F G Weight (kg)
Solenoid valve MVDLE 2040/5 - 200 mbar 80 200 205 150 270 255 45 6.9
Solenoid valve MVDLE 2040/5 - 360 mbar 95 200 205 150 270 255 45 7.1
Solenoid valve MVDLE 2050/5 95 230 210 165 280 255 52 7.5
Solenoid valve MVDLE 2065/5 115 290 290 190 385 330 55 13.3
Solenoid valve MVDLE 2080/5 130 310 320 200 405 375 70 18.5
Solenoid valve MVDLE 2100/5 150 350 380 240 480 480 85 31.0

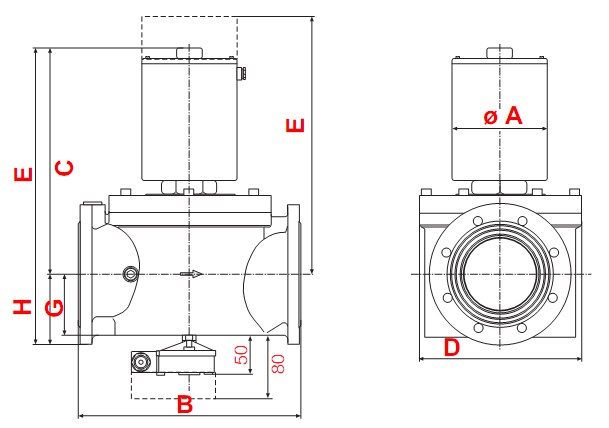

dimensions MVD-3



Valve type A B C D E F* G H Weight (kg)
Solenoid valve MVD 2100/5 170 350 365 240 465 498 80 100 39.0
Solenoid valve MVD 2125/5 170 400 406 290 531 514 112 125 56.0
Solenoid valve MVD 2150/5 170 480 439 290 582 547 125 143 62.0
Solenoid valve MV 2200 170 600 590 415 760 587 160 170 123.0
* F = Space requirement for mounting solenoid

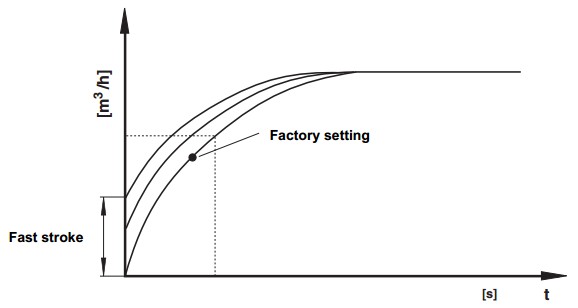

Rapid stroke adjustment V start for MVDLE

Rapid stroke adjustment MVDLE
Factory setting: rapid stroke not adjusted.
1) Unscrew the adjustment cap from the hydraulic brake.
2) Invert the adjustment cap and use as a tool.
3) Turn anti-clockwise = increase rapid stroke (+).


Flow diagrams gas valves MVD / MVDLE

  • Rp 3/8 - DN 100

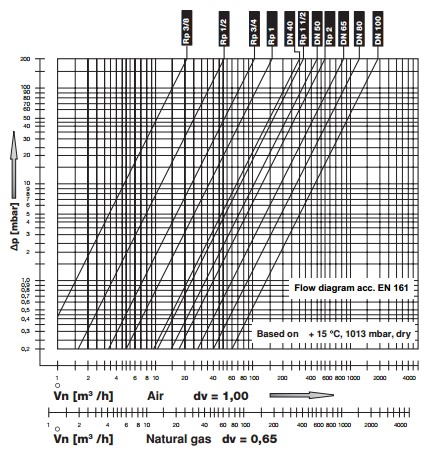

Flow diagram MVD-1



  • DN 100 - DN 200

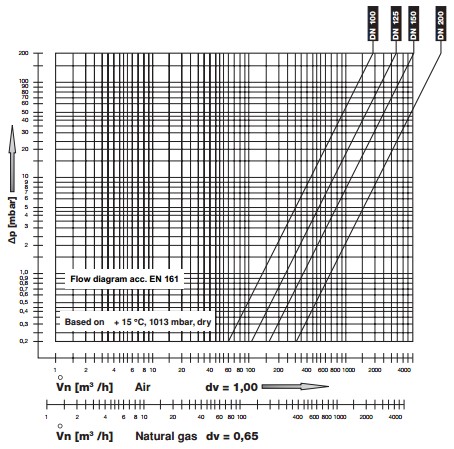

Flow diagram MVD-2

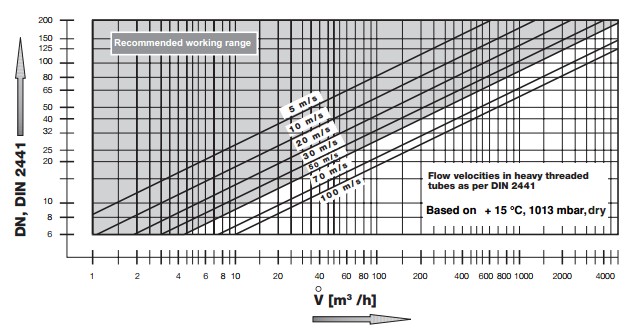

Flow rate MVD-3
- For more drawings or details access the operation manual.
For the images that aren't clear move the mouse over them to zoom.
