Gas pressure switch GW A5 for Dungs multiple actuators

Pressure switch GW A5 Dungs
  • These pressure switches GW A5, GW A5/1 are designed to work together with Dungs multiple actuators.
  • It is suitable for switching a circuit on, off or over on changes in actual pressure value relative to the set reference value. The reference valve (switching point) can be set easily and quickly by means of a setting wheel provided with a scale without the use of a pressure gauge.
  • They can be used together with multiple actuators GasMultiBloc MB and with DMV double solenoid valves. Various mounting options on housing or by means of an adapter.
  • Maximum operating pressure: 500/600 mbar, setting ranges between 1÷500 mbar. Ambient and medium temperature -15÷70oC, storage temperature -30÷80oC.
  • Switching voltage: DC: 24÷48 V, AC 24÷250 V. Nominal current: AC 10 A (6 A for GW 3 A5).
  • GW ... A5 have a short response time during pressure fluctuations; GW ... A5/1 have a slow response time during short-term pressure fluctuations by additional damping nozzle.
  • The installation position can change the switching pressure with up to 0.6 mbar - GW 3÷50 A5, 1 mbar - GW 150 A5, 3 mbar - GW 500 A5
  • Suitable for gases of families 1, 2, 3 and other neutral gaseous media.


Functional description GW A5:

Pressure switch for applications involving excess pressure. GW 500 A4 acts via a rubber diaphragm against the force of the setting spring on the micro-switch. The switching mechanism reacts to overpressure and closes, opens or switches over a current circuit when the specified pressure setpoint is overshot or undershot.


Technical specifications GW A5 pressure switches

Pressure switch type Code Setting range (mbar) pmax (mbar) Degree of prot. Δp (mbar) Medium p(+) Electrical connection
Pressure switch GW 3 A5 229250 1 ÷ 3 500 IP 54 ≤0.7 gas Plug
Pressure switch GW 10 A5 225938 2 ÷ 10 ≤1
Pressure switch GW 50 A5 225939 5 ÷ 50 ≤2.5
Pressure switch GW 150 A5 225940 5 ÷ 150 ≤5
Pressure switch GW 500 A5 227639 100 ÷ 500 600 ≤15
Pressure switch GW 10 A5/1 241245 2 ÷ 10 500 IP 54 ≤1 gas Plug
Pressure switch GW 50 A5/1 241246 5 ÷ 50 ≤2.5
Pressure switch GW 150 A5/1 241247 5 ÷ 150 ≤5
Pressure switch GW 500 A5/1 241248 100 ÷ 500 600 ≤15

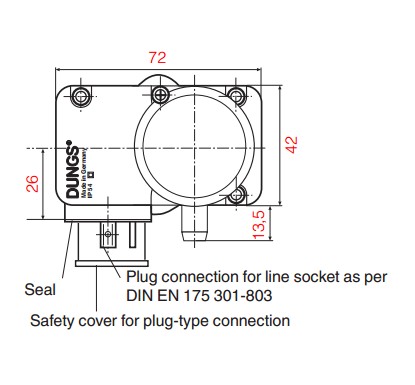

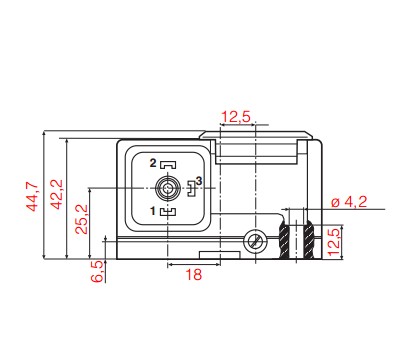

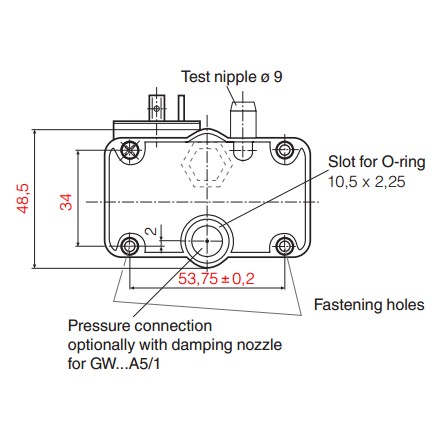

Dimensions GW A5 (mm)

dimensions GW A5 - 1 dimensions GW A5 - 2 dimensions GW A5 - 3
For the images that aren't clear move the mouse over them to zoom.


Mounting options GW...A5

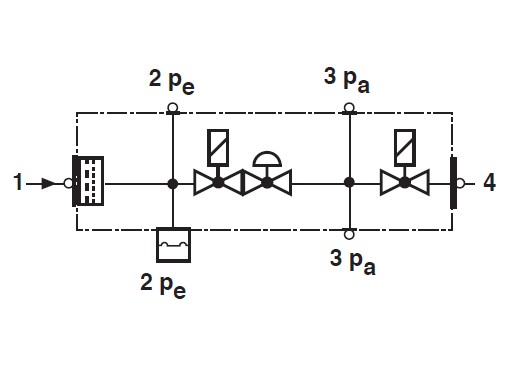

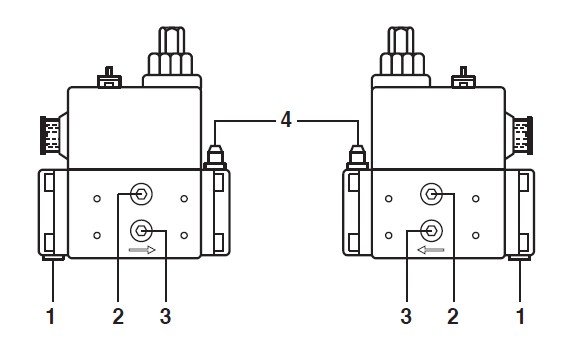

Mounting GW A5 - MB-DLE 403 - 1 Mounting GW A5 - MB-DLE 403 - 2
Pressure tap Mounting Pressure tap Mounting
1 YES, with 221630 Seal plug G 1/8 3 YES Seal plug G 1/8
2 YES Instrument gland, optional 4 YES, with 221630 Instrument gland

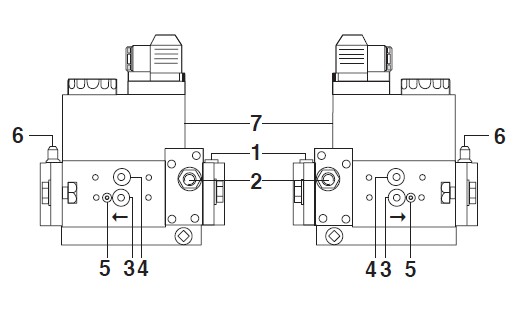

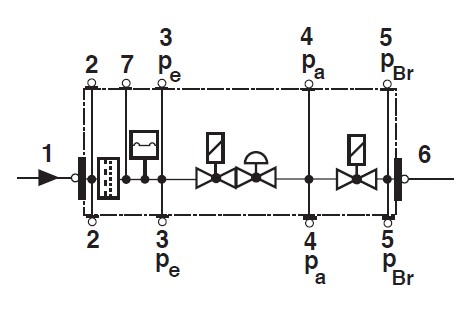

Mounting GW A5 - MB-DLE 405-412 - 1 Mounting GW A5 - MB-DLE 405-412 - 2
Pressure tap Mounting Pressure tap Mounting
1 alternatively to 7 Seal plug G 1/8 5 YES, with 214975 M4 inner hex
2 NO Instrument gland, optional G 1/8 6 YES, with 221630 Instrument gland, optional G 1/8
3 YES Seal plug G 1/8 7 YES
4 YES

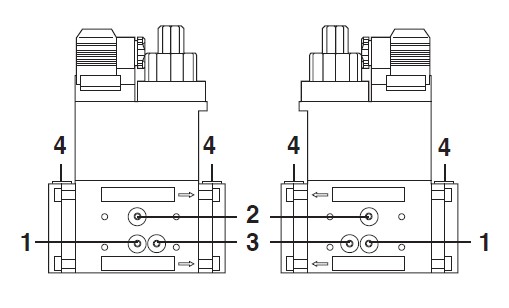

Mounting GW A5 - MB-DLE 415-420 - 1 Mounting GW A5 - MB-DLE 415-420 - 2
Pressure tap Mounting Pressure tap Mounting
1 YES (GWmin) Seal plug G 1/8, optional instrument gland 4 YES Seal plug G 1/8, optional instrument gland
2 YES (GWmin)
3 YES (GWVPS) 5 YES Seal plug G 1/8

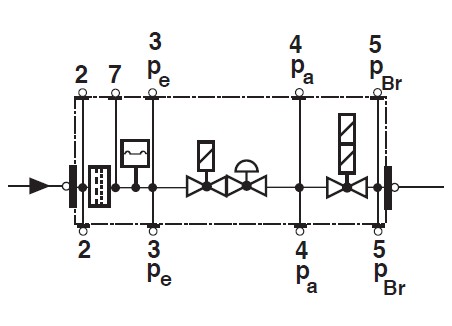

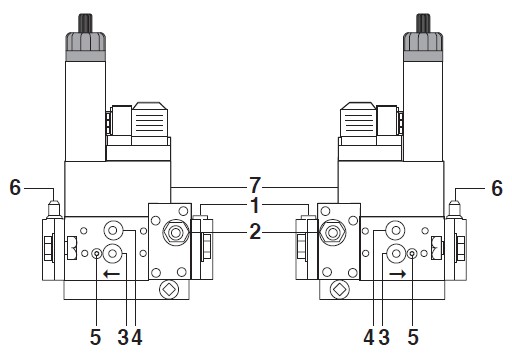

Mounting GW A5 - MB-ZRDLE 405-412 - 1 Mounting GW A5 - MB-ZRDLE 405-412 - 2
Pressure tap Mounting Pressure tap Mounting
1 alternatively to 7 Seal plug G 1/8 5 YES, with 214975 M4 inner hex
2 NO Instrument gland, optional G 1/8 6 YES, with 221630 Instrument gland, optional G 1/8
3 YES Seal plug G 1/8 7 YES
4 YES

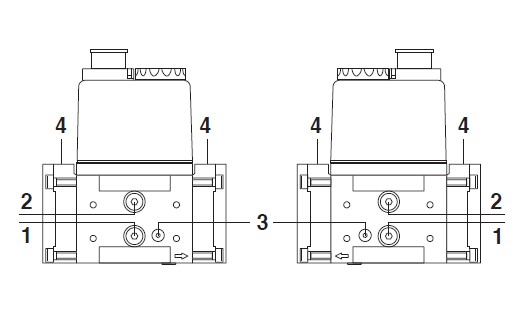

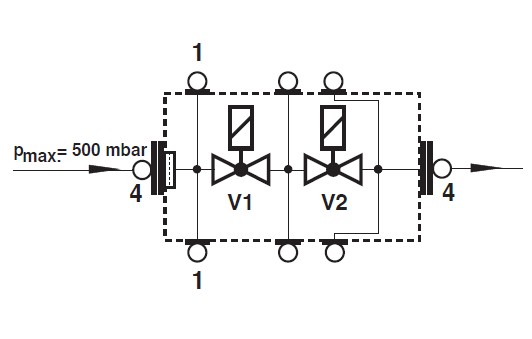

Mounting GW A5 - DMV 503/11 - 1 Mounting GW A5 - DMV 503/11 - 2
Pressure tap Mounting Pressure tap Mounting
1 YES Seal plug G 1/8, optional instrument gland 3 YES, with 214975 Seal plug G 1/8 - M4
2 YES 4 YES (horizontal),
with 221630 (vertical)		 Seal plug G 1/8, optional instrument gland



Mounting GW A5 - DMV 507-520/11 - 1 Mounting GW A5 - DMV 507-520/11 - 2
Pressure tap Mounting Pressure tap Mounting
1 YES (GWmin) Seal plug G 1/8, optional instrument gland 3 YES (GWVPS) Seal plug G 1/8, optional instrument gland
2 YES (GWmin) 4 YES

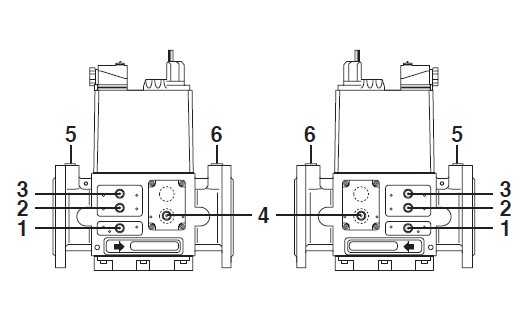

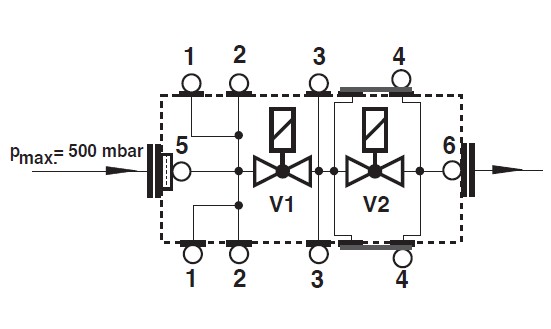

Mounting GW A5 - DMV 5040-5125/11 - 1 Mounting GW A5 - DMV 5040-5125/11 - 2
Pressure tap Mounting Pressure tap Mounting
1 YES Seal plug G 1/8, optional instrument gland 4 YES Seal plug G 1/8, optional instrument gland
2 YES 5 NO G 1/4
3 YES 6 NO G 1/4

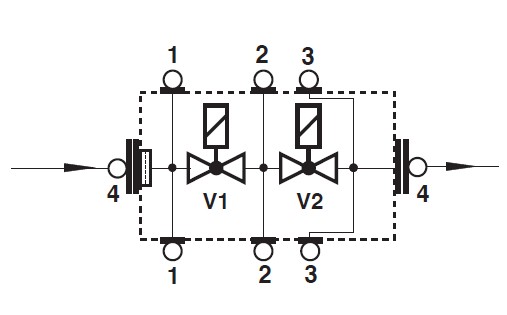

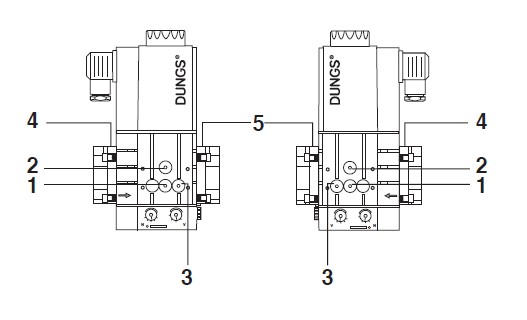

Mounting GW A5 - MBC-300-700-1200 - 1 Mounting GW A5 - MBC-300-700-1200 - 2
Pressure tap Mounting Pressure tap Mounting
1 YES (GWmin) Seal plug G 1/8, optional instrument gland 3 YES (GWVPS) Seal plug G 1/8, optional instrument gland
2 YES (GWmin) 4 YES

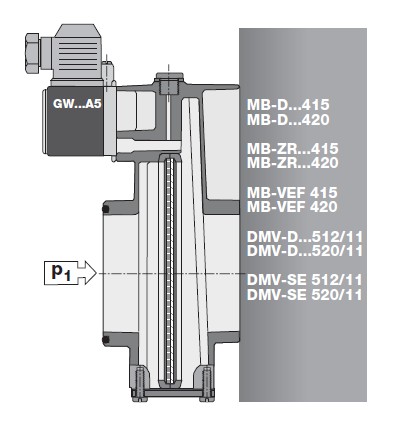

Mounting GW A5 - Pre-mount filter

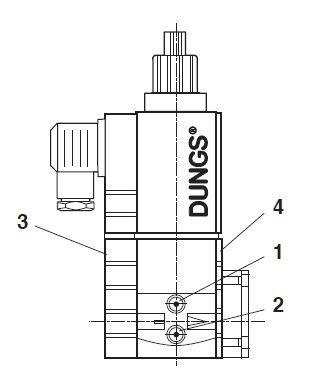

Mounting GW A5 - SV
Pressure tap SV 505/507 SV 510/512 SV 520 Pressure tap SV 505/507 SV 510/512 SV 520
1 pe pa pa 3 NO pe pe
2 NO pe pe 4 pa cu 221630 pa pa


Type key GW A5 pressure switch

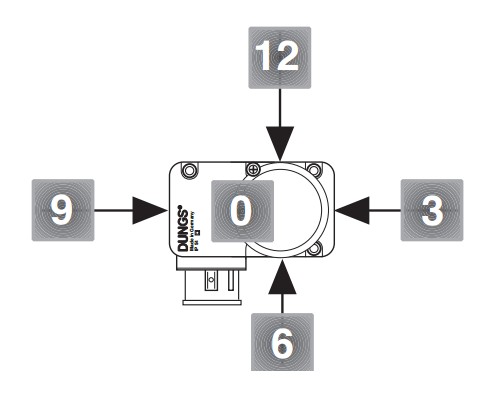

Legend Pressure switch GW A5 Schematic Pressure switch GW A5
For the images that aren't clear move the mouse over them to zoom.


Prices pressure switches GW A5

Code Type Prices without VAT
229250 Pressure switch GW 3 A5 Ag-G3-MS6-V12 fa-se 0.00
225938 Pressure switch GW 10 A5 Ag-G3-MS6-V12 fa-se - In Stock 0.00
225939 Pressure switch GW 50 A5 Ag-G3-MS6-V12 fa-se - In Stock 0.00
225940 Pressure switch GW 150 A5 Ag-G3-MS6-V12 fa-se - In Stock 0.00
227639 Pressure switch GW 500 A5 Ag-G3-MS6-V12 fa-se - In Stock 0.00
241245 Pressure switch GW 10 A5/1 Ag-G3-MS6-V12 fa-se 0.00
241246 Pressure switch GW 50 A5/1 Ag-G3-MS6-V12 fa-se 0.00
241247 Pressure switch GW 150 A5/1 Ag-G3-MS6-V12 fa-se 0.00
241248 Pressure switch GW 500 A5/1 Ag-G3-MS6-V12 fa-se 0.00
In case the price is missing or for a list of discounts contact us directly to receive an offer.
