Automatic burner control DGAI. 27F/3 Dungs with ignition control for gas burners without blower
- These automatic burner controls DGAI. 27F/3 are designed for ignition control for gas burners without fan.
- Flame detection by ionization.
- Program sequence control by electronic timers.
- Electronic ignition with ignition transformer DZÜ 2.
- Ignition and flame monitoring with common electrode or with separate ignition and ionisation.
- Classification EN 298 ATLLXN.
Functional description DGAI. 27F/3
When the regulator receives a heat request, voltage is applied to the gas solenoid valve and the ignition control generates sparks via the DZÜ 2 ignition transformer. The ignition switches off
immediately on receipt of the flame message, the starting gas solenoid valve remains open. If no flame is generated during the safety interval of 5 seconds (SZA), fault interlock is performed.
If a flame occurs when the regulator is switched on, the program sequence is blocked . On flame loss during operation, the gas valve is switched off within 1 second (SZB).
Fault release: By means of an integrated button or externally via NOC from terminal 2 to 8.
Ignition and flame detection using DZU 2
The ignition control system is integrated on the PCB. Approximately 5 ignition sparks are created per second at 200 V by capacitor discharge via a thyristor on the primary coil of the ignition
transformer. This is increased to 10-15 kV by the ignition transformer. Plug the DZU 2 directly into the electrode which carries out ignition and flame detection. Due to the direct connection
between the ignition transformer and the ignition electrode, no high-voltage cable is required. Line loss and radio interference are minimized. The DGAI. 27F/3 can be operated with separated
ignition and monitoring electrodes for end-point monitoring. Tie the black wire of DZU 2 to ground and connect the monitoring electrode to terminal 9.
Fuses: External protection of automatic burner control using a 6.3 medium time-lag back-up fuse or 10 A fast back-up fuse.
Technical specifications
Type | Code | Voltage (V) | Frequency (Hz) | Power consumption (VA) | Degree of protection | Ambient temperature (oC) | Safety interval start (s) |
---|---|---|---|---|---|---|---|
DGAI. 27F/3 | 146550 | 24VAC | 50 | 5 | IP 40 | 0÷60 | <5 |

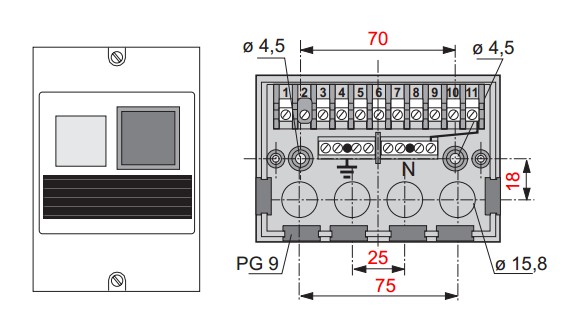

Dimensions DGAI. 27F/3 (mm)
Automatic burner control DGAI. 27F/3

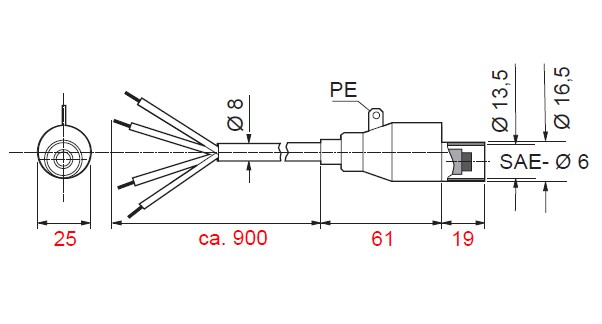

Ignition transformer DZU2
For the images that aren't clear move the mouse over them to zoom.
Prices for controls
Code | Type | Prices without VAT |
---|---|---|
146550 | Automatic burner control DGAI. 27F/3 | 0.00 |
In case the price is missing or for a list of discounts contact
us directly to receive an offer.
