MV Dungs gas solenoid valve, one stage - 1 bar

Solenoid valve MV 1005 1007
  • These solenoid valves MV are used for securing, shutting off and releasing gas supply to gas burners and gas appliances.
  • Valves are normally closed, with one stage and fast opening and closing, under 1 second.
  • Maximum operating pressure up to 1000 mbar (100 kPa), ambient temperature -15÷60 0C, degree of protection IP 54.
  • Reliable function, rugged and maintenance-free.
  • DC solenoid for low-noise operation: rectifier wiring with radio interference suppression in terminal box with PG screw union.
  • MV is suitable for gases of families 1, 2, 3 and other neutral gaseous media.

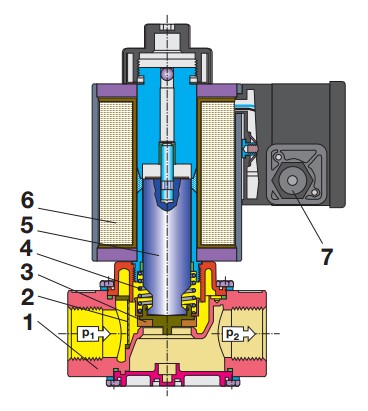

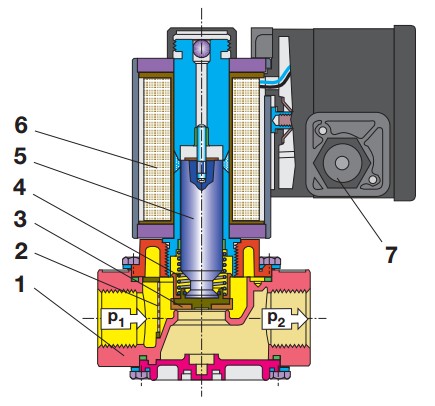

Sectional drawing MV solenoid valve

Sectional drawing MV 1005 1007-1 Sectional drawing MV 1005 1007-2
For the images that aren't clear move the mouse over them to zoom.

Gas valve MV
1 Housing 4 Closing spring 6 Solenoid coil
2 Sieve 5 Armature 7 Electrical connection
3 Valve plate
Functional description MV: The electromagnetic drive opens against the force of the closing spring 4. If the auxiliary power is interrupted (operating voltage), closing spring 4 closes the valve within 1 second.


Technical specifications MV valve

Valve type Code Rp Voltage (V) pmax (mbar) Solenoid no. Opening time (s) Degree of protection
Gas valve MV 1005 246921 Rp 1/2 230 V (AC) 1000 120 <1 IP 54
Gas valve MV 1007 246922 Rp 3/4 250


Dimensions MV valve (mm)

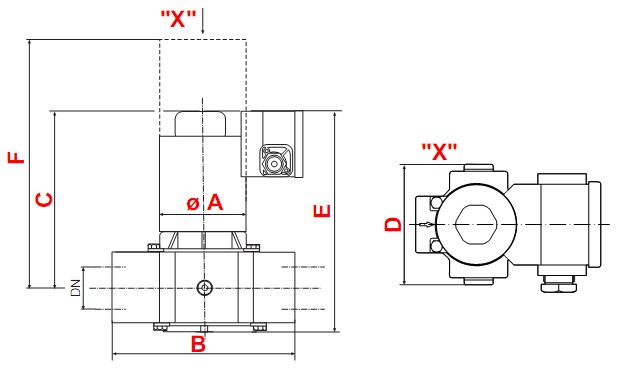

dimensions MV 1005 1007



Valve type A B C D E F Weight (kg)
Solenoid valve MV 1005 50 75 135 75 113 200 1.00
Solenoid valve MV 1007 75 100 135 80 160 190 1.75


Flow diagrams solenoid valve MV 1 bar

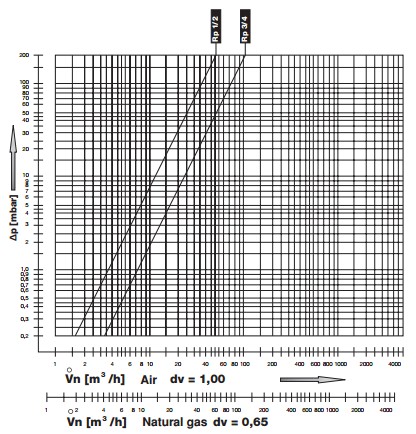

Flow diagram MV 1005-1007 1

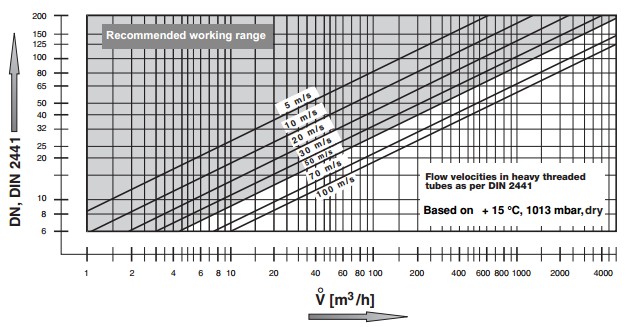

Flow rate MV 1005-1007 2
- For more drawings or details access the operation manual.
For the images that aren't clear move the mouse over them to zoom.


Prices gas valves MV

Code Type Prices without VAT
246921 Solenoid valve MV 1005 0.00
246922 Solenoid valve MV 1007 0.00
In case the price is missing or for a list of discounts contact us directly to receive an offer.
