GF Geca gas and air filters - small capacity
- These gas and air filters GF Geca which have a small capacity can be used especially for wall boilers but also for protection of control devices, pressure regulators meters and on systems that require a high degree of filtration.
- Designed in accordance with the provisions of DIN.3386 standards and can be used for all the types of natural gas, LPG or not corrosive gases.
- Operation maximum pressure: 6 bar.
- Plastic cartridge element from PP.
- Complete body: die-cast aluminium Gd-AlSi12Cu - EN AB 46100; NBR seals.

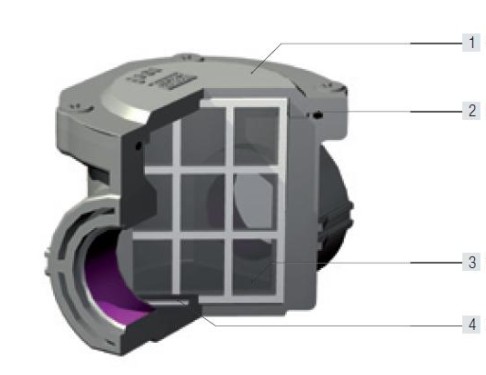

GF Geca sectional drawing
For the images that aren't clear move the mouse over them to zoom.
| GF Geca gas and air filters | ||||
|---|---|---|---|---|
| 1 | Cover | 3 | Filter cartridge PP | |
| 2 | Seal NBR o-ring | 4 | Slotting guides | |
Technical specifications GF Geca filter
| Filter type | Connection | pmax operation (bar) | Working temp. (0C) | Filtration (µm) |
|---|---|---|---|---|
| Gas filter GF015SC | 1/2" | 6 | -20 ÷ 60 | ≤50 |
| Gas filter GF020SC | 3/4" | 6 | -20 ÷ 60 | ≤50 |
| Gas filter GF025SC | 1" | 6 | -20 ÷ 60 | ≤50 |

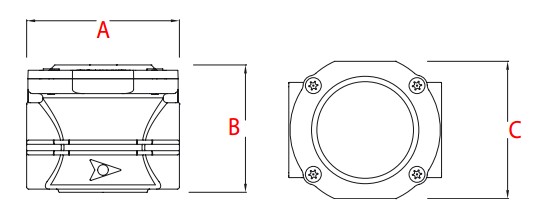

Dimensions Geca filters (mm)
| Filter type | A | B | C | Weight (kg) |
|---|---|---|---|---|
| Natural gas filter GF015SC | 72 | 60 | 65 | 0.221 |
| Natural gas filter GF020SC | 72 | 60 | 65 | 0.212 |
| Natural gas filter GF025SC | 72 | 60 | 65 | 0.199 |

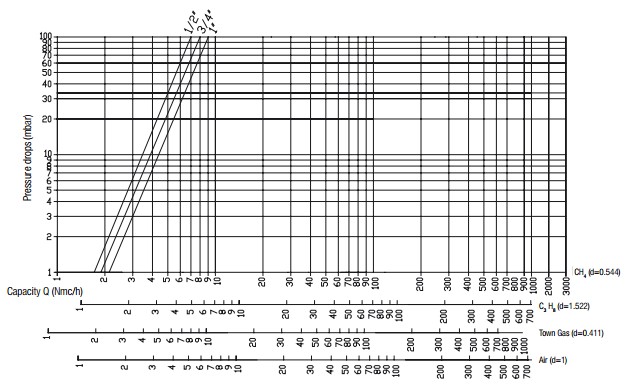

Flow diagram
- For more drawings or details access the datasheet
For the images that aren't clear move the mouse over them to zoom.
GF Geca filter prices
| Code | Type | Prices without VAT |
|---|---|---|
| GF015SC | Gas filter GF Geca - 1/2" small capacity | 0.00 |
| GF020SC | Gas filter GF Geca - 3/4" small capacity | 0.00 |
| GF025SC | Gas filter GF Geca - 1" small capacity | 0.00 |
In case the price is missing or for a list of discounts contact
us directly to receive an offer.
