GasMultiBloc MBC Dungs

Gas Multi Bloc MBC Dungs
  • This MB GasMultiBloc MBC integrates a filter, servo pressure regulator, two class A valves and a pressure switch in one compact unit. They represent the newest and most modern series of Dungs gas blocks.
  • The modular system provides individual solutions in gas safety and control systems
  • MBC-65 and MBC-120 models are used for one-stage mode burners. In MBC-...-SE models the servo pressure regulator permits optimal mixture formation in forced air burners and premix burners in conjunction with mechanical or electronic integrated gas-air regulation units; it applies to modulating and multi-stage operating mode.
  • The two valves are fast opening and fast closing, the dirt trap is different according to the type (see table below).
  • Different pressure switch types mountable: GW A5, GW A2, NB A2, UB A2. Standard equipped with GW 150 A5.
  • Reference value spring is installed permanently, no spring replacement possible for MBC-65 and MBC-120. Bigger models have different type of springs for different pressure ranges. They can also be equipped with versions for zero pressure and gas-air ratio control .
  • Optional external pulse for MBC-1900 - 5000.
  • High flow valves at low pressure difference.
  • Simple mounting, compact, light-weight.
  • MBC-...-SE can also be used to replace the old double solenoid gas valves DMV-SE and MBC-...-VEF replaces DMV-VEF.
  • Suitable for gases of families 1, 2, 3 and other neutral gaseous media.
  • Detailed pictures for available models (move the mouse over them to zoom):



GasMultiBloc MBC-65 GasMultiBloc MBC-120 GasMultiBloc MBC-300-SE GasMultiBloc MBC-300-WND GasMultiBloc MBC-700-VEF GasMultiBloc MBC-1200-SE GasMultiBloc MBC-1900-SE GasMultiBloc MBC-1900-VEF GasMultiBloc MBC-5000-VEF


Sectional drawings MBC Dungs

Sectional drawing MBC-65-120
For the images that aren't clear move the mouse over them to zoom.



GasMultiBloc MBC-65-120-DLE
1 Microfilter 7 Nozzle 13 Adjustment main flow
2 Inlet P1 8 Outlet P2 14 Reference value adjustment
3 Housing 9 Main flow restrictor 15 Adjustment start flow
4 Spring pressure regulator 10 Start gas restrictor 16 Solenoid housing V1, V2
5 Diaphragm pressure regulator 11 Damper 17 Electrical connection
6 Cover side 12 Servopressure regulator 18 Setting of opening time
(only MBC-120)



Sectional drawing MBC-300-1200-SE - 1 Sectional drawing MBC-300-1200-SE - 2



Gas Multi Bloc MBC-300-1200-SE
1 Pressure regulator 7 Housing 13 Closing spring V2
2 Regulator spring 8 Plunger V1 14 Plunger V2
3 Connecting flange 9 Solenoid V1 15 Solenoid V2
4 Micro-filter 10 PCB 16 Solenoid housing
5 Valve V1 11 Electrical connection 17 Adjustment gas pressure pBr
6 Closing spring V1 12 Valve V2



Sectional drawing MBC-300-1200-VEF - 1 Sectional drawing MBC-300-1200-VEF - 2



Gas Multi Bloc MBC-300-1200-VEF
1 Pressure regulator 8 Plunger V1 15 Solenoid V2
2 Regulator spring 9 Solenoid V1 16 Solenoid housing
3 Connecting flange 10 PCB Setting:
4 Micro-filter 11 Electrical connection 17 Gas-air ratio
5 Valve V1 12 Valve V2 18 Zero point correction
6 Closing spring V1 13 Closing spring V2
7 Housing 14 Plunger V2



Sectional drawing MBC-1900-5000-SE Sectional drawing MBC-1900-5000-VEF



Gas Multi Bloc MBC-1900-5000-SE/VEF
V1 Main valve 1 V4 Control valve 4 pF Firing chamber pressure
V2 Main valve 2 p1 Inlet pressure pL Blower pressure
V3 Control valve 3 p2 Outlet pressure


Technical specifications MBC

GasMultiBloc type Code Rp/DN pmax (mbar) Power consumption (VA) poutput (mbar) Control V1/V2 Dirt trap
MBC-65-DLE-S20 232620 1/2 200 25 3÷15 common FS 120µm
MBC-65-DLE-S40 242320 4÷37
MBC-65-ND 251195 65 0 ± 2
MBC-65-WND xxxxxx 0 ± 2
MBC-120-DLE-S20 246456 3/4 360 25 3÷15 common FS 120µm
MBC-120-DLE-S40 245875 4÷37
MBC-120-ND 251849 100 0 ± 2
MBC-120-WND-150 xxxxxx - 0 ± 2
FS = Fine sieve

GasMultiBloc type Code Rp/DN pmax (mbar) Power consumption (VA) poutput (mbar) Control V1/V2 Dirt trap
MBC-300-SE-S02 261649 1 100 120 4÷20 separated NF 50µm
MBC-300-SE-S22 261645 360 120
239717 360 140
MBC-300-SE-S82 261644 360 120 5÷80
231961 360 140
MBC-300-SE-S302 261647 360 120 30÷300
241918 360 140
MBC-300-VEF 261653 360 120 0.5÷100
241030 360 140
MBC-300-WND xxxxxx 100 - 0 ± 2
NF = Standard filter blue

GasMultiBloc type Code Rp/DN pmax (mbar) Power consumption (VA) poutput (mbar) Control V1/V2 Dirt trap
MBC-700-SE-S02 261667 1 1/2 100 180 4÷20 separated NF 50µm
MBC-700-SE-S22 261646 360 180
241515 360 160
MBC-700-SE-S82 261652 360 180 5÷80
242055 360 160
MBC-700-SE-S302 261648 360 180 30÷300
242056 360 160
MBC-700-VEF 261654 360 180 0.5÷100
243407 360 160
MBC-700-WND xxxxxx 100 - 0 ± 2



GasMultiBloc type Code Rp/DN pmax (mbar) Power consumption (VA) poutput (mbar) Control V1/V2 Dirt trap
MBC-1200-SE-S02 256623 2 100 200 4÷20 separated NF 50µm
MBC-1200-SE-S22 245623 360 4÷20
MBC-1200-SE-S82 243408 360 5÷80
MBC-1200-SE-S302 243409 360 30÷300
MBC-1200-VEF 243413 360 0.5÷100
MBC-1200-WND xxxxxx 100 - 0 ± 2
MBC-1900-SE-65 241741 DN 65 500 190 20÷40 separated Sieve 0.8mm
MBC-1900-VEF-65 243083 360 0.5÷100
MBC-3100-SE-80 244295 DN 80 500 250 20÷40
MBC-3100-VEF-80 244428 360 0.5÷100
MBC-5000-SE-100 244298 DN 100 500 250 20÷40
MBC-5000-VEF-100 244301 360 0.5÷100
S = Sieve


Dimensions gas blocks (mm)

dimensions MBC-65-120 - 1 dimensions MBC-65-120 - 2



Gas Multi Bloc type A B C D E F Weight (kg)
GasMultiBloc MBC-65 105 148 31 160 226 76 1.5
GasMultiBloc MBC-120 105 155 37 165 232 82 1.6



dimensions MBC-300-700 dimensions MBC-1200



Gas Multi Bloc type A B C D E F G Weight (kg)
GasMultiBloc MBC-300-SE 95 143 61 175 297 87 236 3.6
GasMultiBloc MBC-300-VEF
GasMultiBloc MBC-700-SE 126 176 80 187 310 114 267 5.1
GasMultiBloc MBC-700-VEF
GasMultiBloc MBC-1200-SE 204 281 96 328 530 161 424 16.8
GasMultiBloc MBC-1200-VEF
E = Space requirement for exchanging the solenoid



dimensions MBC-1900-5000



Gas Multi Bloc type A B C D E F Weight (kg)
GasMultiBloc MBC-1900-SE 290 168 246 365 196 414 18.4
GasMultiBloc MBC-1900-VEF
GasMultiBloc MBC-3100-SE 310 190 292 450 216 482 26.0
GasMultiBloc MBC-3100-VEF
GasMultiBloc MBC-5000-SE 350 235 329 500 250 564 33.3
GasMultiBloc MBC-5000-VEF
D = Space requirement for exchanging the solenoid


Flow diagrams

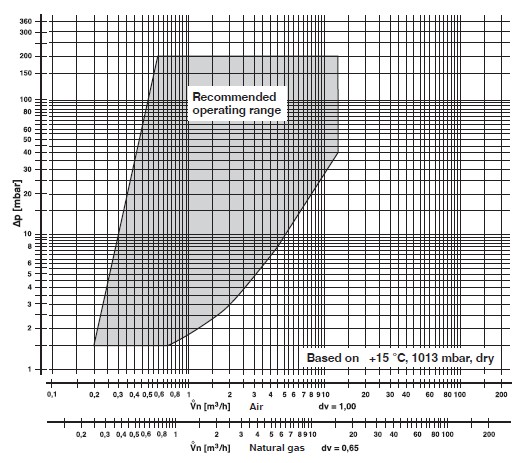

Gas blocks type MBC-65

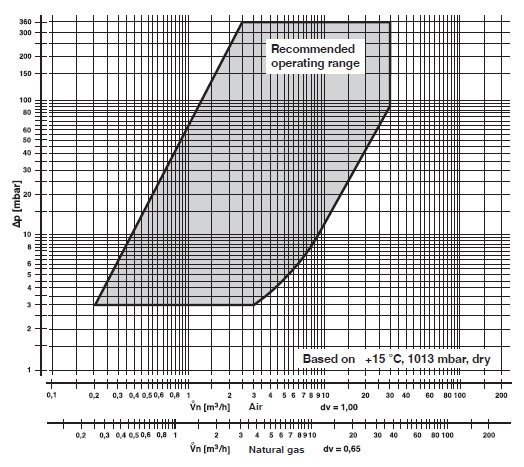

Gas blocks type MBC-120

diagram MBC-65 diagram MBC-120

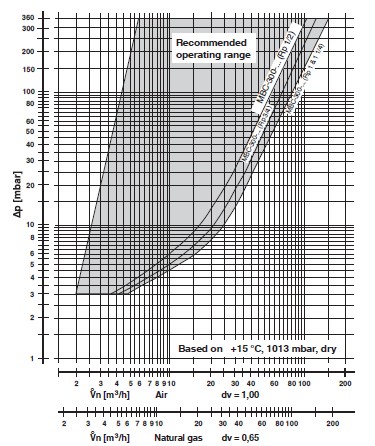

Gas blocks type MBC-300

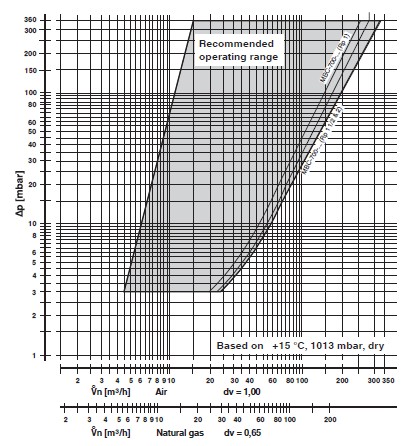

Gas blocks type MBC-700

diagram MBC-300 diagram MBC-700

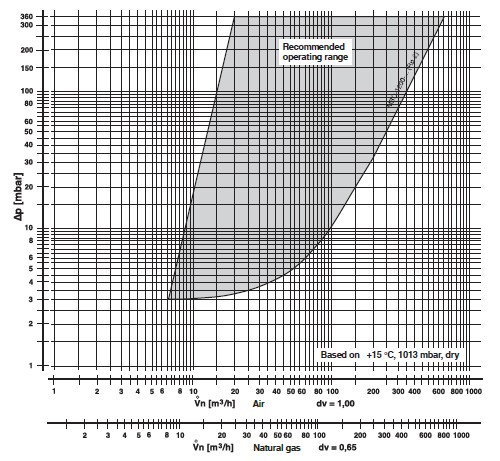

Gas blocks type MBC-1200

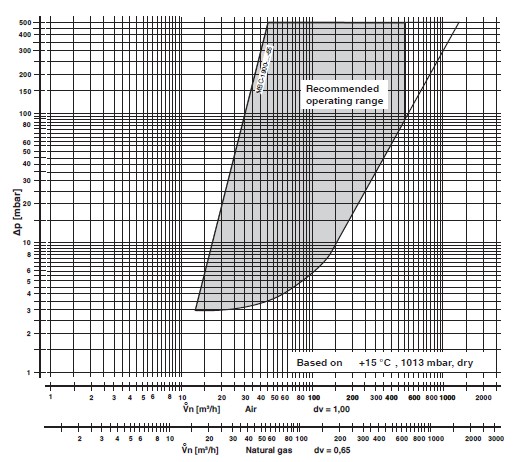

Gas blocks type MBC-1900

diagram MBC-1200 diagram MBC-1900

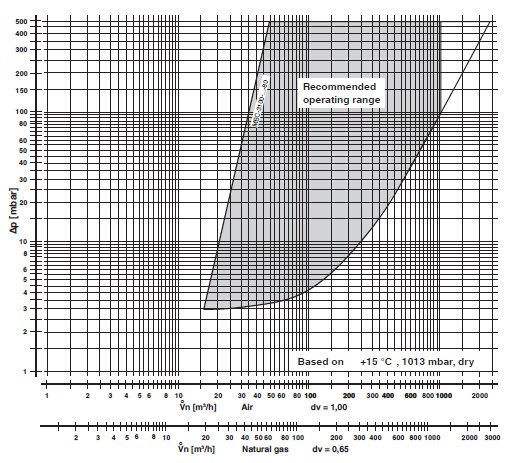

Gas blocks type MBC-3100

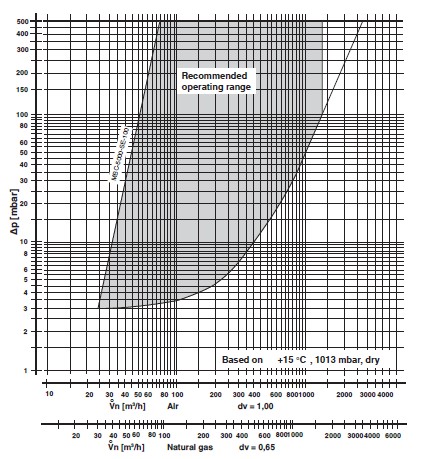

Gas blocks type MBC-5000

diagram MBC-3100 diagram MBC-5000

- For more drawings or details access the operation manual.
For the images that aren't clear move the mouse over them to zoom.


Prices GasMultiBloc MBC Dungs

Code Type Prices without VAT
232620 GasMultiBloc MBC-65-DLE-S20 0.00
242320 GasMultiBloc MBC-65-DLE-S40 0.00
251195 GasMultiBloc MBC-65-ND 0.00
xxxxxx GasMultiBloc MBC-65-WND 0.00
246456 GasMultiBloc MBC-120-DLE-S20 0.00
245875 GasMultiBloc MBC-120-DLE-S40 0.00
251849 GasMultiBloc MBC-120-ND 0.00
xxxxxx GasMultiBloc MBC-120-WND-150 0.00
261649 GasMultiBloc MBC-300-SE-S02 0.00
262478 GasMultiBloc MBC-300-SE-S02 110VAC 0.00
261645 GasMultiBloc MBC-300-SE-S22 0.00
261644 GasMultiBloc MBC-300-SE-S82 0.00
261647 GasMultiBloc MBC-300-SE-S302 0.00
261653 GasMultiBloc MBC-300-VEF 0.00
xxxxxx GasMultiBloc MBC-300-WND 0.00
261667 GasMultiBloc MBC-700-SE-S02 0.00
262479 GasMultiBloc MBC-700-SE-S02 110VAC 0.00
261646 GasMultiBloc MBC-700-SE-S22 0.00
261652 GasMultiBloc MBC-700-SE-S82 0.00
261648 GasMultiBloc MBC-700-SE-S302 0.00
261654 GasMultiBloc MBC-700-VEF 0.00
xxxxxx GasMultiBloc MBC-700-WND 0.00
256623 GasMultiBloc MBC-1200-SE-S02 0.00
254531 GasMultiBloc MBC-1200-SE-S02 24VDC 0.00
245623 GasMultiBloc MBC-1200-SE-S22 0.00
243408 GasMultiBloc MBC-1200-SE-S82 0.00
243409 GasMultiBloc MBC-1200-SE-S302 0.00
243413 GasMultiBloc MBC-1200-VEF 0.00
xxxxxx GasMultiBloc MBC-1200-WND 0.00
241741 GasMultiBloc MBC-1900-SE-65 0.00
243083 GasMultiBloc MBC-1900-VEF-65 0.00
244295 GasMultiBloc MBC-3100-SE-80 0.00
244428 GasMultiBloc MBC-3100-VEF-80 0.00
244298 GasMultiBloc MBC-5000-SE-100 0.00
244301 GasMultiBloc MBC-5000-VEF-100 0.00
Models no longer part of the Dungs main product line:
239717 GasMultiBloc MBC-300-SE-S22 0.00
231961 GasMultiBloc MBC-300-SE-S82 0.00
241918 GasMultiBloc MBC-300-SE-S302 0.00
241030 GasMultiBloc MBC-300-VEF 0.00
241515 GasMultiBloc MBC-700-SE-S22 0.00
242055 GasMultiBloc MBC-700-SE-S82 0.00
242056 GasMultiBloc MBC-700-SE-S302 0.00
243407 GasMultiBloc MBC-700-VEF 0.00
In case the price is missing or for a list of discounts contact us directly to receive an offer.
