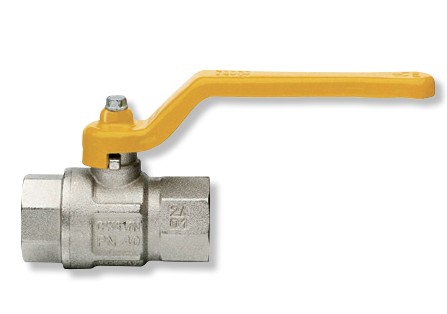

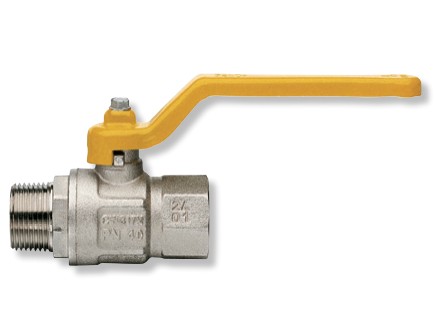

Nickel-plated brass BV Geca ball valves FF / MF
- These ball valves BVD Geca are designed for manual shut-off and for releasing gases of families 1,2,3 , air or water.
- Body in nickel-plated brass.
- Lever handle in zinc-plated and varnished steel for sizes between 1/4" and 2" and aluminium for sizes 2 1/2" - 4".
- Female thread ISO 7/1 Rp parallel (equivalent to DIN EN 10226-1 and BS EN 10226-1) for 1/4" - 2".
- Inlet-Outlet connection: threads ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228) for 2 1/2" - 4".
- Approval EN 331.

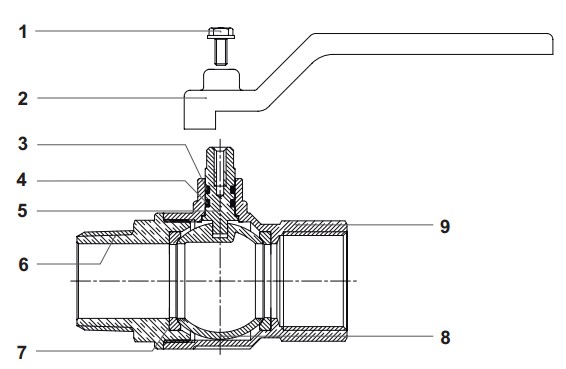

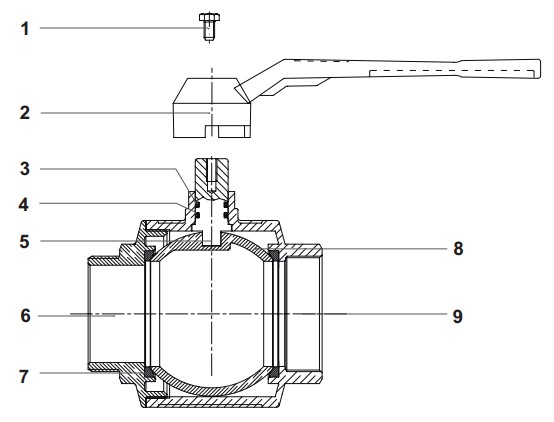

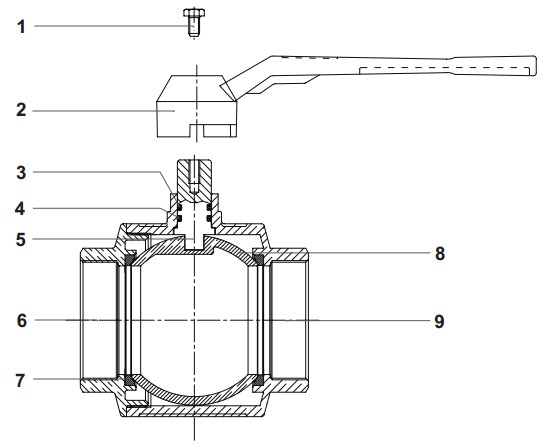

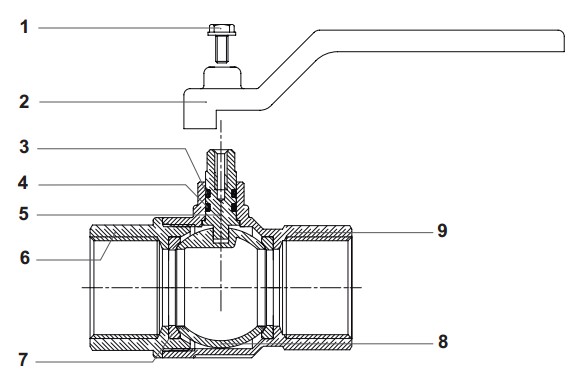

Sectional drawings for BV Geca ball valves
For the images that aren't clear move the mouse over them to zoom.
| BV 1/4" ÷ 2" | Material | Material | ||||
|---|---|---|---|---|---|---|
| 1 | Screw | Zinc-plated steel Fe CB4 | 6 | End adapter | Nickel-plated brass CW617N | |
| 2 | Lever handle | Zinc-plated, varnished steel Fe.P.04 | 7 | Seat | P.T.F.E. | |
| 3 | O-ring | Viton | 8 | Ball | Chrome-plated brass CW617N | |
| 4 | O-ring | NBR | 9 | Body | Nickel-plated brass CW617N | |
| 5 | Stem | Brass CW614N | ||||
| BV 2 1/2" ÷ 4" | Material | Material | ||||
|---|---|---|---|---|---|---|
| 1 | Screw | Zinc-plated steel Fe CB4 | 6 | End adapter | Nickel-plated brass CW617N | |
| 2 | Lever handle | Aluminium | 7 | Seat | P.T.F.E. | |
| 3 | O-ring | Viton | 8 | Ball | Chrome-plated brass CW617N | |
| 4 | O-ring | NBR | 9 | Body | Nickel-plated brass CW617N | |
| 5 | Stem | Brass CW614N | ||||
Technical specifications Geca nickel-plated brass ball valves
| Ball valve series | Connection | pmax (bar) | pmax (psi) | Temperature (oC) | Design | Lever handle |
|---|---|---|---|---|---|---|
| Ball valve BV008-FF | 1/4" | 5 | 72.5 | -20 ÷ 60 | Nickel-plated brass | Steel |
| Ball valve BV010-FF | 3/8" | |||||
| Ball valve BV015-FF | 1/2" | |||||
| Ball valve BV020-FF | 3/4" | |||||
| Ball valve BV025-FF | 1" | |||||
| Ball valve BV032-FF | 1 1/4" | |||||
| Ball valve BV040-FF | 1 1/2" | |||||
| Ball valve BV050-FF | 2" | |||||
| Ball valve BV065-FF | 2 1/2" | 18 | 261 | -20 ÷ 60 | Nickel-plated brass | Aluminium |
| Ball valve BV080-FF | 3" | 16 | 232 | |||
| Ball valve BV100-FF | 4" | 14 | 203 |
| Ball valve series | Connection | pmax (bar) | pmax (psi) | Temperature (oC) | Design | Lever handle |
|---|---|---|---|---|---|---|
| Ball valve BV008-MF | 1/4" | 5 | 72.5 | -20 ÷ 60 | Nickel-plated brass | Steel |
| Ball valve BV010-MF | 3/8" | |||||
| Ball valve BV015-MF | 1/2" | |||||
| Ball valve BV020-MF | 3/4" | |||||
| Ball valve BV025-MF | 1" | |||||
| Ball valve BV032-MF | 1 1/4" | |||||
| Ball valve BV040-MF | 1 1/2" | |||||
| Ball valve BV050-MF | 2" | |||||
| Ball valve BV065-MF | 2 1/2" | 18 | 261 | -20 ÷ 60 | Nickel-plated brass | Aluminium |
| Ball valve BV080-MF | 3" | 16 | 232 | |||
| Ball valve BV100-MF | 4" | 14 | 203 |

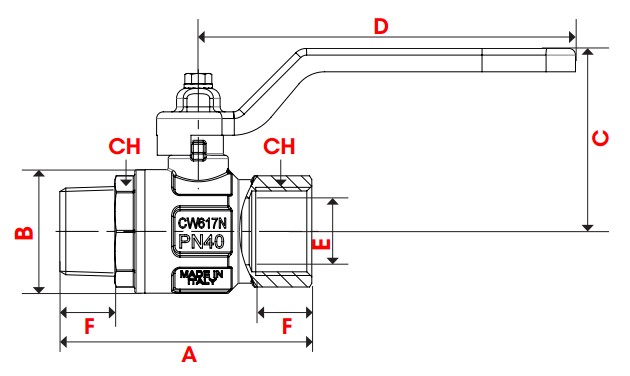

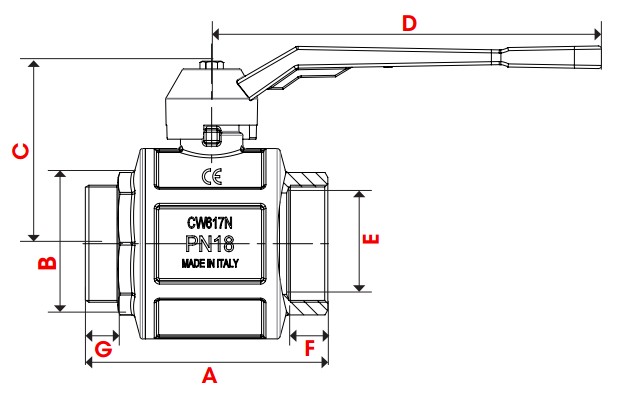

Dimensions BV Geca ball valves (mm)
| Type | A | B | C | D | E | F | CH |
|---|---|---|---|---|---|---|---|
| BV008-FF | 49.5 | 23.5 | 37.3 | 80 | 10 | 11.0 | 18 |
| BV010-FF | 52.4 | 24 | 37.3 | 80 | 10 | 11.4 | 21 |
| BV015-FF | 61 | 30.5 | 48.8 | 88.5 | 15 | 15.0 | 25 |
| BV020-FF | 68 | 37 | 54.8 | 113 | 20 | 16.3 | 31 |
| BV025-FF | 85 | 45.5 | 56.8 | 113 | 25 | 19.1 | 38 |
| BV032-FF | 99.5 | 58 | 75.0 | 138 | 32 | 21.4 | 47 |
| BV040-FF | 109 | 71 | 90.3 | 157.8 | 40 | 21.4 | 54 |
| BV050-FF | 130 | 85 | 97.3 | 157.8 | 50 | 25.7 | 66 |
| Type | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| BV065-FF | 148 | 122 | 126.75 | 250 | 65 | 25 |
| BV080-FF | 168 | 142 | 135.75 | 250 | 80 | 27.5 |
| BV100-FF | 204 | 180 | 153.75 | 250 | 100 | 30 |
| Type | A | B | C | D | E | F | CH |
|---|---|---|---|---|---|---|---|
| BV008-MF | 56.9 | 23.5 | 37.3 | 80 | 8 | 11.0 | 18 |
| BV010-MF | 58.9 | 24 | 37.3 | 80 | 10 | 11.4 | 21 |
| BV015-MF | 68.0 | 30.5 | 48.8 | 88.5 | 15 | 15.0 | 25 |
| BV020-MF | 75.5 | 37 | 54.8 | 113 | 20 | 16.3 | 31 |
| BV025-MF | 90.5 | 45.5 | 56.8 | 113 | 25 | 19.1 | 38 |
| BV032-MF | 105.0 | 58 | 75.0 | 138 | 32 | 21.4 | 47 |
| BV040-MF | 115.5 | 71 | 90.3 | 157.8 | 39 | 21.4 | 54 |
| BV050-MF | 135.5 | 85 | 97.3 | 157.8 | 50 | 25.7 | 66 |
| Type | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| BV065-MF | 155.5 | 122 | 126.75 | 250 | 63 | 25 | 21 |
| BV080-MF | 178 | 142 | 135.75 | 250 | 74 | 27.5 | 24 |
| BV100-MF | 208 | 180 | 153.75 | 250 | 97 | 30 | 23 |

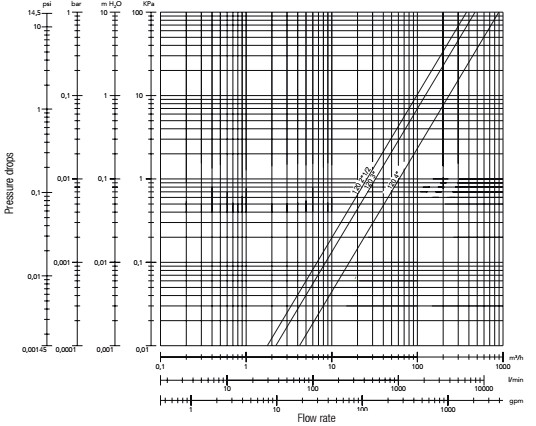

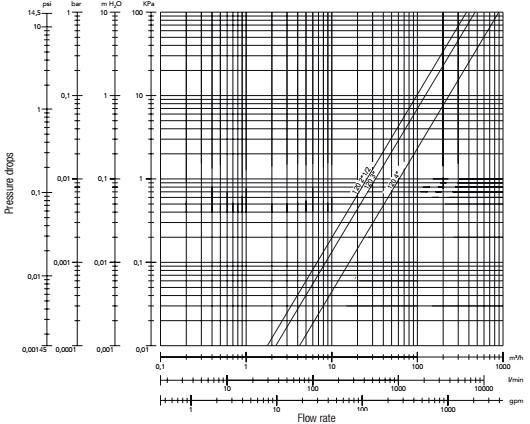

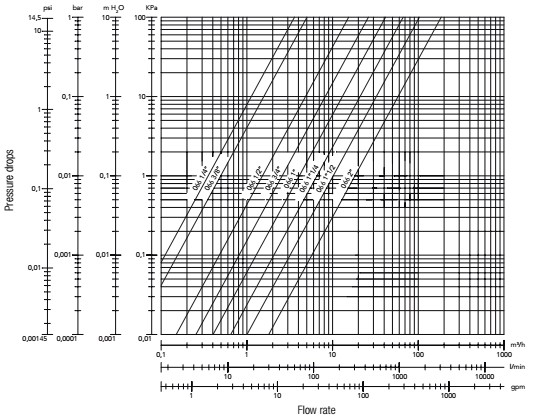

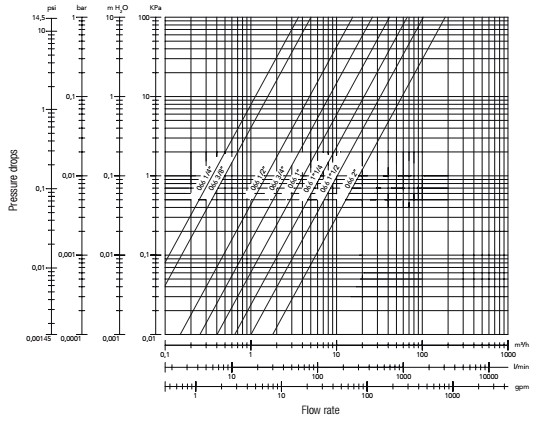

Flow diagrams - with water
FF 1/4" - 2"
FF 2 1/2" - 4"
MF 1/4" - 2"
MF 2 1/2" - 4"
For the images that aren't clear move the mouse over them to zoom.
Prices for Geca ball valves
| Code | Type | Prices without VAT |
|---|---|---|
| BV008-FF | Ball valve Geca 1/4" - female / female | 0.00 |
| BV010-FF | Ball valve Geca 3/8" - female / female | 0.00 |
| BV015-FF | Ball valve Geca 1/2" - female / female | 0.00 |
| BV020-FF | Ball valve Geca 3/4" - female / female | 0.00 |
| BV025-FF | Ball valve Geca 1" - female / female | 0.00 |
| BV032-FF | Ball valve Geca 1 1/4" - female / female | 0.00 |
| BV040-FF | Ball valve Geca 1 1/2" - female / female | 0.00 |
| BV050-FF | Ball valve Geca 2" - female / female | 0.00 |
| BV065-FF | Ball valve Geca 2 1/2" - female / female | 0.00 |
| BV080-FF | Ball valve Geca 3" - female / female | 0.00 |
| BV100-FF | Ball valve Geca 4" - female / female | 0.00 |
| BV008-MF | Ball valve Geca 1/4" - male / female | 0.00 |
| BV010-MF | Ball valve Geca 3/8" - male / female | 0.00 |
| BV015-MF | Ball valve Geca 1/2" - male / female | 0.00 |
| BV020-MF | Ball valve Geca 3/4" - male / female | 0.00 |
| BV025-MF | Ball valve Geca 1" - male / female | 0.00 |
| BV032-MF | Ball valve Geca 1 1/4" - male / female | 0.00 |
| BV040-MF | Ball valve Geca 1 1/2" - male / female | 0.00 |
| BV050-MF | Ball valve Geca 2" - male / female | 0.00 |
| BV065-MF | Ball valve Geca 2 1/2" - male / female | 0.00 |
| BV080-MF | Ball valve Geca 3" - male / female | 0.00 |
| BV100-MF | Ball valve Geca 4" - male / female | 0.00 |
