Automatic burner control MPA 101x, MPA 109x Dungs
- These automatic burner controls MPA 101x, MPA 109x are designed for monitoring gas burners with or without fan.
- MPA 101x has the following features:
- Ionisation flame monitor;
- Integrated cyclic spark ignition, or external ignition;
- Pilot gas valve;
- Main gas valve;
- Ignition and flame monitoring with common electrode or with separated electrodes;
- A restart is attempted after loss of flame during operation (depending on model);
- Adjustable fault shutdown
- MPA 109x are designed to work together with GasBloc GB 055 or GB 057.
- According to EN 437 and other neutral gaseous media.
- Note: This series is no longer part of the Dungs main product line.
- Detailed pictures for available models (move the mouse over them to zoom):
Technical specifications
| Type | Code | Voltage (V) | Frequency (Hz) | Power (VA) | Degree of protection | Ambient temperature (oC) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| MPA 1012 | 250867 | 230 VAC | 50 | 5 | IP 20/IP 40 | 0÷60 | 0.35 |
| MPA 1012 | 253389 | ||||||
| MPA 1015 | 250868 | ||||||
| MPA 1011 | xxxxxx | ||||||
| MPA 1095 | 250869 | 230 VAC | 50 | <25 | IP 40 | 0÷60 | 0.35 |
| MPA 1091 | 253981 | ||||||
| MPA 1094 | 250870 | ||||||
| MPA 1094 | 254644 |
| Type | Code | Start-up waiting period (s) | Safety time start-up (s) | Safety time operating (s) | Ignition | Ignition attempts | Fuse |
|---|---|---|---|---|---|---|---|
| MPA 1012 | 250869 | 5 | 5 | 1 | internal | 3 | 2 A (internal) 6.3 A (slow) 10 A (fast) |
| MPA 1012 | 250870 | 10 | external | ||||
| MPA 1015 | 253981 | 30 | 5 | internal | |||
| MPA 1095 | 250869 | 5 | 5 | 1 | internal | 3 | 3.15 A (internal) 6.3 A (slow) 10 A (fast) |
| MPA 1091 | 253981 | ||||||
| MPA 1094 | 250870 | 30 | |||||
| MPA 1094 | 254644 |

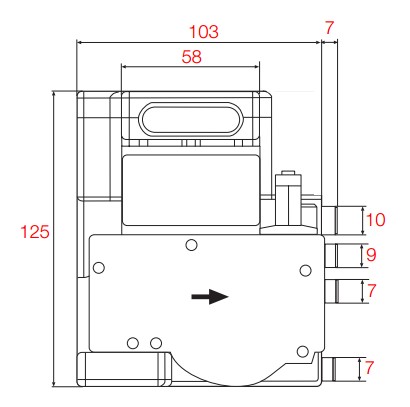

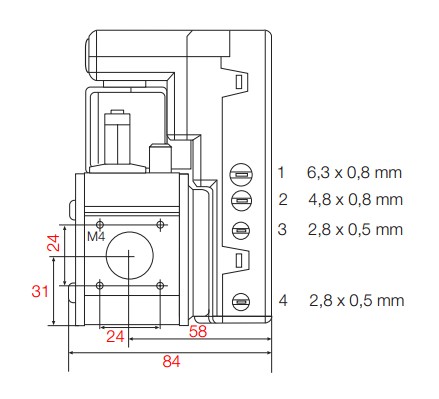

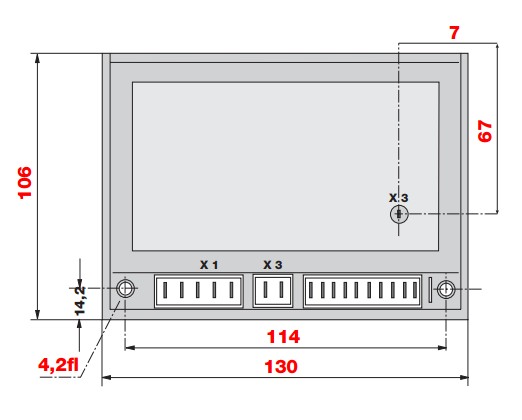

Dimensions MPA 101x / 109x (mm)

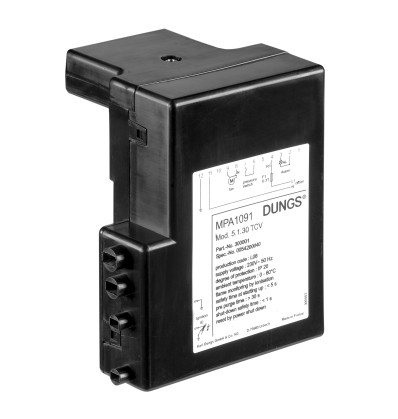

Automatic burner control MPA 101x
For the images that aren't clear move the mouse over them to zoom.

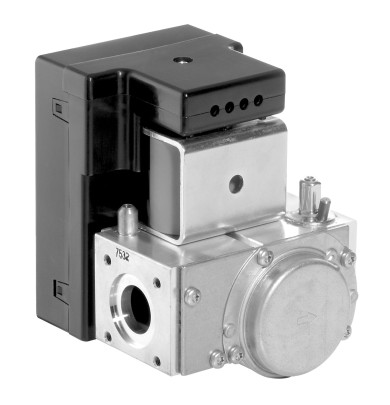

Automatic burner control MPA 109x
Prices for controls
| Code | Type | Prices without VAT |
|---|---|---|
| 250867 | Automatic burner control MPA 1012 Mod. 5.1.0 TCL | 0.00 |
| 253389 | Automatic burner control MPA 1012 Mod. 10.1.0 TCL | 0.00 |
| 250868 | Automatic burner control MPA 1015 Mod. 5.1.30 TCL | 0.00 |
| xxxxxx | Automatic burner control MPA 1011 | 0.00 |
| 250869 | Automatic burner control MPA 1095 Mod. 5.1.0 TCL | 0.00 |
| 250870 | Automatic burner control MPA 1094 Mod. 5.1.30 MCL | 0.00 |
| 253981 | Automatic burner control MPA 1091 Mod. 5.1.0 MCL | 0.00 |
| 254644 | Automatic burner control MPA 1094 Mod. 5.1.30 MCL/DP | 0.00 |
In case the price is missing or for a list of discounts contact
us directly to receive an offer.
