Compact pressure switch GW A6 Dungs for gas and air
- These pressure switches GW A6 and GW A6/1 are designed for monitoring in combustion, ventilation and air-conditioning technologies. They are suited for switching a circuit on, off or over if the actual pressure value changes compared to the set-point.
- The setpoint (switching point) is set on an adjustment wheel with scale. A test nipple is integrated in the metal housing as standard.
- Maximum operating pressure: 500/600 mbar, setting ranges between 1÷500 mbar. Ambient and medium temperature -15÷70oC, storage temperature -30÷80oC.
- Switching voltage: DC: 24÷48 V, AC 24÷250 V. Nominal current: AC 10 A (6 A for GW 3 A6).
- GW … A6/1 has an integrated damping nozzle.
- The installation position can change significantly the switching pressure.
- Suitable for gases of families 1, 2, 3 and other neutral gaseous media.

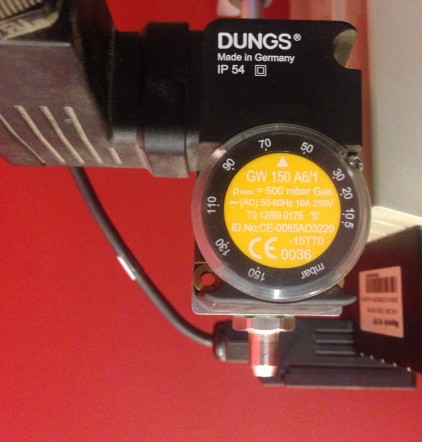

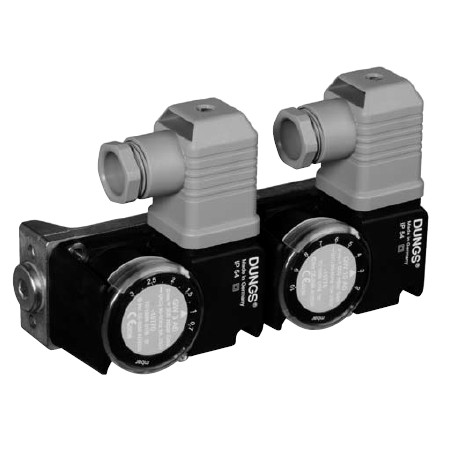

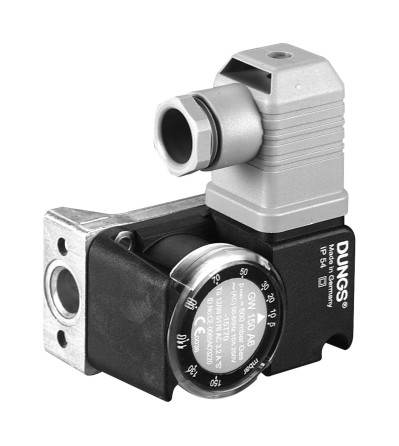

- Detailed pictures for available models (move the mouse over them to zoom):
Functional description GW A6:
Single-acting pressure switch in over-pressure range. The pressure switches operate without any power supply. GW A6 has a short response time, and GW A6/1 has a slow response time
during short-term pressure fluctuations by additional damping nozzle.
- Pressure switch GW ... A6:
The control unit responds to pressure. If the setpoint is exceeded or undershot, the circuit is switched on, off or over.
- Double pressure switch GW ... / ... A6:
Combination of two flanged GW A6 single pressure switches. The two setpoints are set separately and independently. A combination of different setpoint ranges is therefore possible.
The two control units are fed from the same medium at the medium's pressure.
Technical specifications GW A6 pressure switches
| Pressure switch type | Code | Setting range (mbar) | pmax (mbar) | Degree of protection | Δp (mbar) | Medium p(+) |
|---|---|---|---|---|---|---|
| Pressure switch GW 3 A6 | 228723 | 1 ÷ 3 | 500 | IP 54 | ≤0.7 | gas air |
| Pressure switch GW 10 A6 | 228724 | 2 ÷ 10 | ≤1 | |||
| Pressure switch GW 50 A6 | 228725 | 5 ÷ 50 | ≤2.5 | |||
| Pressure switch GW 150 A6 | 228726 | 5 ÷ 150 | ≤5 | |||
| Pressure switch GW 500 A6 | 228727 | 10 ÷ 500 | 600 | ≤15 | ||
| Pressure switch GW 3 A6 | 229958 | 1 ÷ 3 | 500 | IP 54 | ≤0.7 | gas air |
| Pressure switch GW 10 A6 | 229959 | 2 ÷ 10 | ≤1 | |||
| Pressure switch GW 50 A6 | 229960 | 5 ÷ 50 | ≤2.5 | |||
| Pressure switch GW 150 A6 | 229961 | 5 ÷ 150 | ≤5 | |||
| Pressure switch GW 500 A6 | 229962 | 10 ÷ 500 | 600 | ≤15 | ||
| Pressure switch GW 3 A6 | 231111 | 1 ÷ 3 | 500 | IP 54 | ≤0.7 | gas air |
| Pressure switch GW 10 A6 | 231112 | 2 ÷ 10 | ≤1 | |||
| Pressure switch GW 50 A6 | 231113 | 5 ÷ 50 | ≤2.5 | |||
| Pressure switch GW 150 A6 | 231114 | 5 ÷ 150 | ≤5 | |||
| Pressure switch GW 500 A6 | 231115 | 10 ÷ 500 | 600 | ≤15 |
Air also means flue and exhaust gas.
| Pressure switch type | Code | Setting range (mbar) | pmax (mbar) | Degree of protection | Δp (mbar) | Medium p(+) |
|---|---|---|---|---|---|---|
| Pressure switch GW 50 A6/1 | 242676 | 5 ÷ 50 | 500 | IP 54 | ≤2.5 | gas air |
| Pressure switch GW 150 A6/1 | 242677 | 5 ÷ 150 | ≤5 | |||
| Pressure switch GW 500 A6/1 | 242678 | 10 ÷ 500 | 600 | ≤15 | ||
| Pressure switch GW 3 A6/1 | 242030 | 1 ÷ 3 | 500 | IP 54 | ≤0.7 | gas air |
| Pressure switch GW 10 A6/1 | 242031 | 2 ÷ 10 | ≤1 | |||
| Pressure switch GW 50 A6/1 | 242032 | 5 ÷ 50 | ≤2.5 | |||
| Pressure switch GW 150 A6/1 | 242033 | 5 ÷ 150 | ≤5 | |||
| Pressure switch GW 500 A6/1 | 242034 | 10 ÷ 500 | 600 | ≤15 |
| Pressure switch type | Cod | Setting range (mbar) | pmax (mbar) | Degree of prot. | Δp (mbar) | Medium p(+) |
|---|---|---|---|---|---|---|
| Pressure switch GW 3/3 A6 | 229235 | 1÷3 / 1÷3 | 500 | IP 54 | ≤0.7 / ≤0.7 | gas air |
| Pressure switch GW 3/10 A6 | 229236 | 1÷3 / 2÷10 | ≤0.7 / ≤1 | |||
| Pressure switch GW 10/10 A6 | 229237 | 2÷10 / 2÷10 | ≤1 / ≤1 | |||
| Pressure switch GW 10/50 A6 | 229238 | 2÷10 / 5÷50 | ≤1 / ≤2.5 | |||
| Pressure switch GW 10/150 A6 | 229239 | 2÷10 / 5÷150 | ≤1 / ≤5 | |||
| Pressure switch GW 50/50 A6 | 229240 | 5÷50 / 5÷50 | ≤2.5 / ≤2.5 | |||
| Pressure switch GW 50/150 A6 | 229241 | 5÷50 / 5÷150 | ≤2.5 / ≤5 | |||
| Pressure switch GW 150/150 A6 | 229242 | 5÷150 / 5÷150 | ≤5 / ≤5 | |||
| Pressure switch GW 500/500 A6 | 229243 | 10÷500 / 10÷500 | 600 | ≤15 / ≤15 |

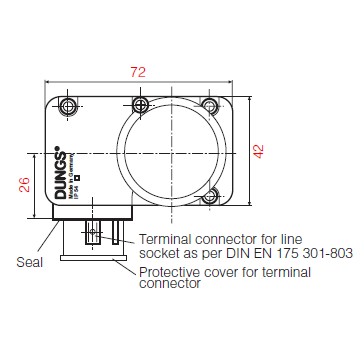

Dimensions GW A6 (mm)

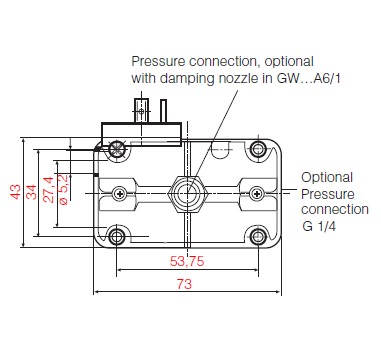

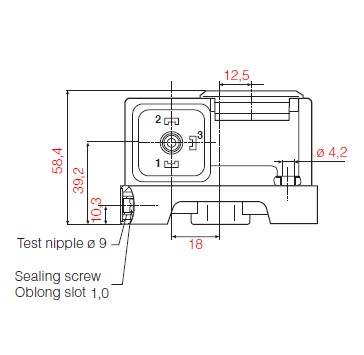

Gas and air pressure switches GW A6 & GW A6/1:
For the images that aren't clear move the mouse over them to zoom.

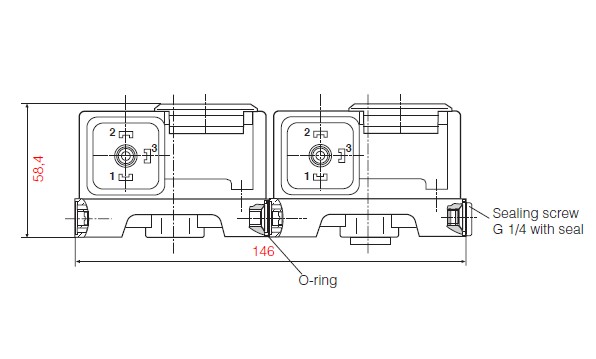

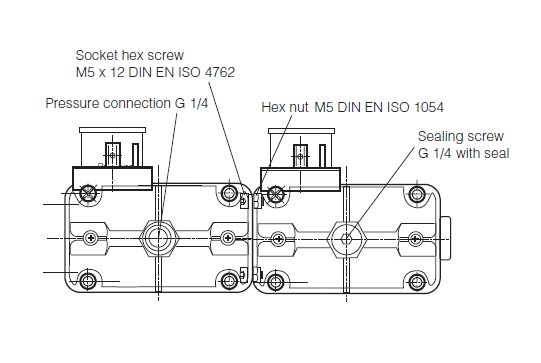

Gas and air double pressure switches GW ... / ... A6:

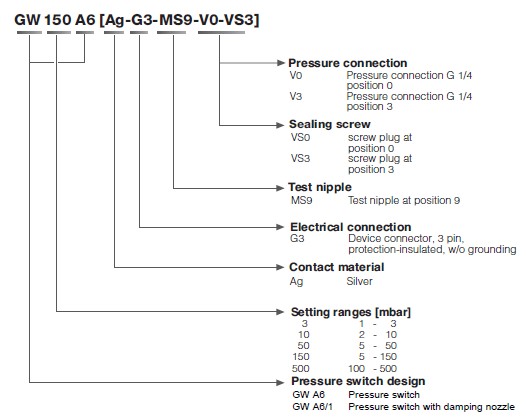

Type key GW A6 pressure switch
