Differential pressure switch LGW C1, C2, C3 Dungs for air, flue, exhaust gas
- These pressure switches LGW C1, LGW C2, LGW C3 are designed for monitoring in firing, ventilation and air-conditioning systems.
- The reference value (switching point) is adjusted on a setting wheel provided with a scale for LGW C2; LGW C1 and LGW C3 are factory adjusted.
- Maximum operating pressure: 50 mbar, setting ranges between 0.2÷30 mbar. Ambient and medium temperature -15÷85oC, storage temperature -20÷85oC.
- Switching voltage: DC 24÷48 V; AC 24÷250 V. Nominal current: DC 20 mA; AC 5 A (2.5 A - LGW C3).
- Each pressure chamber has a stepped connection of 6 mm diameter to 4 mm diameter.
- Large diaphragm surface ensures very high sensitivity and small switching differences.
- The LGW C3 has a flat construction, therefore is specially designed as an integrated unit, particularly for monitoring the blower in wallmounted equipment.
- The installation position can change the switching pressure with up to 0.2 mbar.
- Suitable for air, flue and exhaust gases.
- Note: This series is no longer part of the Dungs main product line.

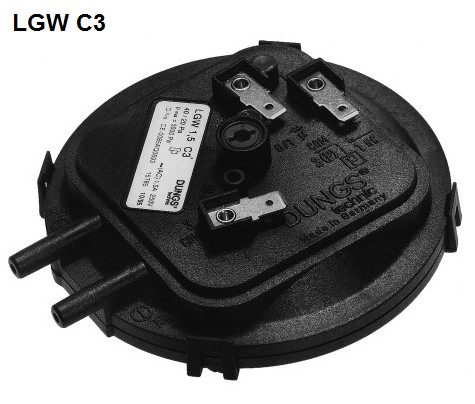

- Detailed pictures for available models (move the mouse over them to zoom):
Functional description:
The differential pressure switch in pressure and vacuum ranges acts via the diaphragm against the force of the setting spring on the microswitch. It operates without any auxiliary power.
- Differential pressure switch LGW ... C2:
The control unit responds to differential pressure.If the set reference value (mbar) is exceeded or undershot, the circuit is switches on, off or over.
- Differential pressure switch LGW ... C3:
The control unit responds to differential pressure.If the set reference value (mbar) is exceeded or undershot, the circuit is switches on, off or over.
Technical specifications for LGW C differential pressure switches
| Pressure switch type | Code | Setting range (mbar) | pmax (mbar) | Degree of protection | Δp (mbar) | Medium p(+) | Medium p(-) |
|---|---|---|---|---|---|---|---|
| Pressure switch LGW C1 | on request | 0.3 ÷ 3.0 | 50 | IP 00/10/44/54 | 0.07 ÷ 0.3 | air | air |
Air also means flue and exhaust gas.
| Pressure switch type | Code | Setting range (mbar) | pmax (mbar) | Degree of protection | Δp (mbar) | Medium p(+) | Medium p(-) |
|---|---|---|---|---|---|---|---|
| Pressure switch LGW 1,5 C2 | 212200 | 0.2 ÷ 1.5 | 50 | IP 54 | ≤0.18 | air | air |
| Pressure switch LGW 3 C2 | 230167 | 0.2 ÷ 3.0 | ≤0.20 | ||||
| Pressure switch LGW 3 C2 | 212571 | 0.4 ÷ 3.0 | ≤0.20 | ||||
| Pressure switch LGW 5 C2 | 230168 | 0.3 ÷ 5.0 | ≤0.25 | ||||
| Pressure switch LGW 6 C2 | 220991 | 0.7 ÷ 6.0 | ≤0.30 | ||||
| Pressure switch LGW 10 C2 | 212572 | 1.0 ÷ 10.0 | ≤0.40 | ||||
| Pressure switch LGW 30 C2 | 220992 | 3.0 ÷ 30.0 | ≤0.80 |
| Pressure switch type | Code | Setting range (mbar) | pmax (mbar) | Degree of prot. | Δp (mbar) | Medium p(+) | Medium p(-) |
|---|---|---|---|---|---|---|---|
| Pressure switch LGW 1,5 C3 | on request | 0.2 ÷ 1.5 | 50 | IP 54 | 0.07 ÷ 0.3 | air | air |
| Pressure switch LGW 3 C3 | on request | 0.4 ÷ 3.0 | 0.12 ÷ 0.4 | ||||
| Pressure switch LGW 10 C3 | on request | 1.0 ÷ 10.0 | 0.20 ÷ 0.6 |
Dimensions LGW C (mm)

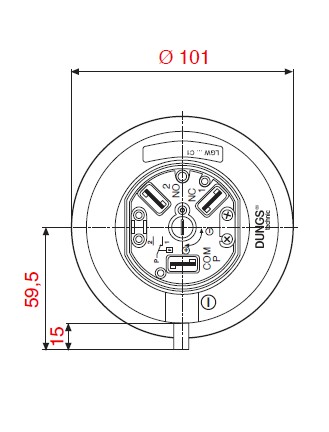

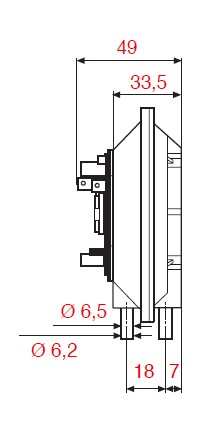

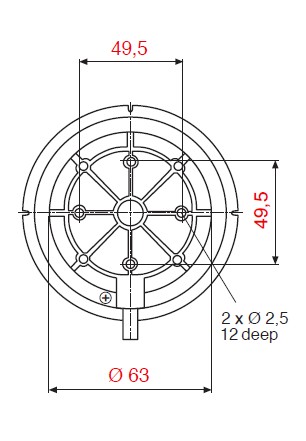

Differential pressure switches for air LGW C1:
For the images that aren't clear move the mouse over them to zoom.

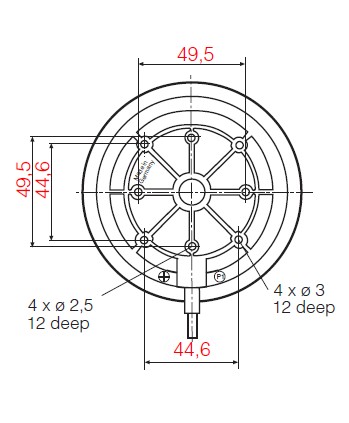

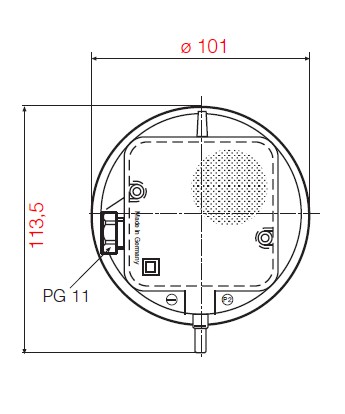

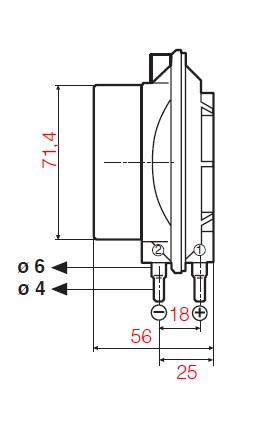

Differential pressure switches for air LGW C2:

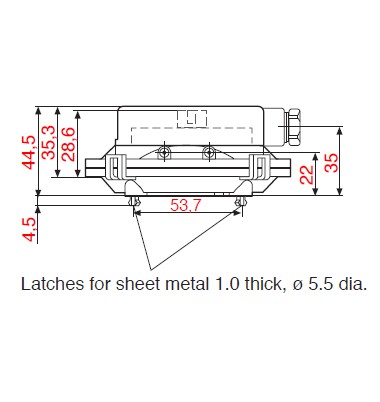

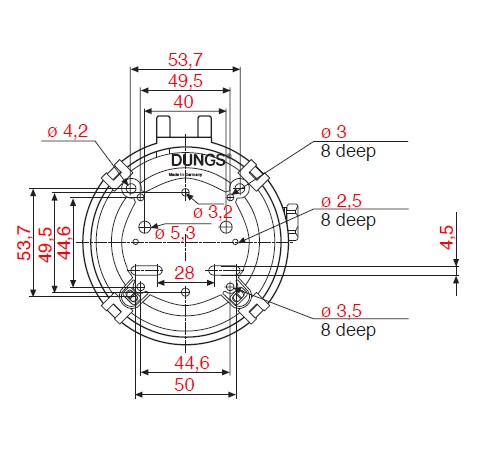

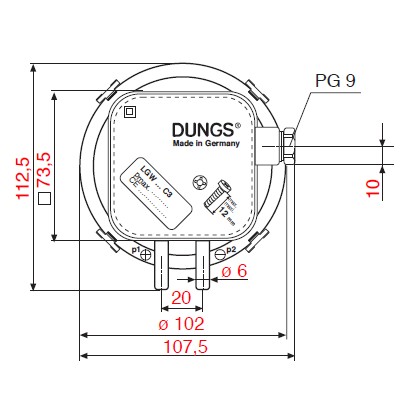

Differential pressure switches for air LGW C3:
Prices for pressure switches
| Code | Type | Prices without VAT |
|---|---|---|
| on request | Pressure switch LGW C1 | 0.00 |
| 212200 | Pressure switch LGW 1,5 C2 Ag-PG-V3 fa-se | 0.00 |
| 230167 | Pressure switch LGW 3 C2 Ag-PG-V3 fa-se | 0.00 |
| 212571 | Pressure switch LGW 3 C2 Ag-PG-V3 st-se | 0.00 |
| 230168 | Pressure switch LGW 5 C2 Ag-PG-V3 st-se | 0.00 |
| 220991 | Pressure switch LGW 6 C2 Ag-PG-V3 st-se | 0.00 |
| 212572 | Pressure switch LGW 10 C2 Ag-PG-V3 st-se | 0.00 |
| 220992 | Pressure switch LGW 30 C2 Ag-PG-V3 st-se | 0.00 |
| on request | Pressure switch LGW 1,5 C3 | 0.00 |
| on request | Pressure switch LGW 3 C3 | 0.00 |
| on request | Pressure switch LGW 10 C3 | 0.00 |
In case the price is missing or for a list of discounts contact
us directly to receive an offer.
