>> Ball valves >> BVD Geca
Flanged cast iron Geca gas ball valve
- These ball valves BVD Geca are designed for manual shut-off and for releasing gases of families 1, 2, 3, air or water.
- Inside and outside epoxy coating, high temperature resistant. Environmentally friendly, water-based paint.
- The dynamic seal of the stem is guaranteed by a double O-ring, even in severe working conditions.
- Blow-out proof stem.
- Seat of ball in reinforced PTFE, as temperature changes, the torque remains constant.
- Ball with full and straight bore, in chromed brass or stainless steel.
- They cover a large range of connections, DN15 to DN 200.

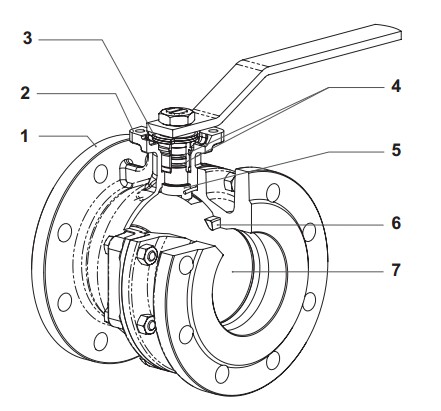

Sectional drawings for BVD Geca ball valves
For the images that aren't clear move the mouse over them to zoom.
| Ball valve BVD Geca | |||||||
|---|---|---|---|---|---|---|---|
| 1 | Inside/outside epoxy coating | 4 | Stem dynamic seal | 6 | Ball seat | ||
| 2 | Integrated flange ISO 5211 | 5 | Blow-out proof stem | 7 | Ball with full and straight bore | ||
| 3 | Integrated flange ISO 5211 | ||||||
| Ball valve BVD Geca | Material | |
|---|---|---|
| 1 | Body | EN GJS 400-15/ EN GJL250, epoxy coated |
| 2 | Flange | EN GJS 400-15/ EN GJL250, epoxy coated |
| 3 | Ball | Brass CuZn40Pb2 chrome plated / AISI304 / AISI316 / EN GJL250 |
| 4 | Ball seat | Reinforced PTFE |
| 5 | Stem | Brass CuZn40Pb2 / AISI304 / AISI316 |
| 6 | Sliding washer | PTFE |
| 7 | Ring | Alama CuZn40Pb2 / AISI304 / AISI316 |
| 8 | O-ring | NBR / FKM (Viton) |
| 9 | Lever | Carbon steel, epoxy coated |
| 10 | Stop plate | Galvanized carbon steel |
| 11 | Spring washer | Galvanized carbon steel |
Technical specifications Geca cast iron ball valves
| Ball valve series | Connection | Operating torque (Nm) | Weight (kg) | Design |
|---|---|---|---|---|
| Ball valve BVD015D | DN15 | 15 | 2.6 | Cast iron |
| Ball valve BVD020D | DN20 | 15 | 3.3 | |
| Ball valve BVD025D | DN25 | 18 | 4.2 | |
| Ball valve BVD032D | DN32 | 18 | 5.8 | |
| Ball valve BVD040D | DN40 | 18 | 7.5 | |
| Ball valve BVD050D | DN50 | 20 | 9 | |
| Ball valve BVD065D | DN65 | 40 | 10.5 | |
| Ball valve BVD080D | DN80 | 70 | 15.5 | |
| Ball valve BVD100D | DN100 | 100 | 18.5 | |
| Ball valve BVD125D | DN125 | 180 | 28 | |
| Ball valve BVD150D | DN150 | 250 | 38.5 | |
| Ball valve BVD200D | DN200 | 600 | 93 |

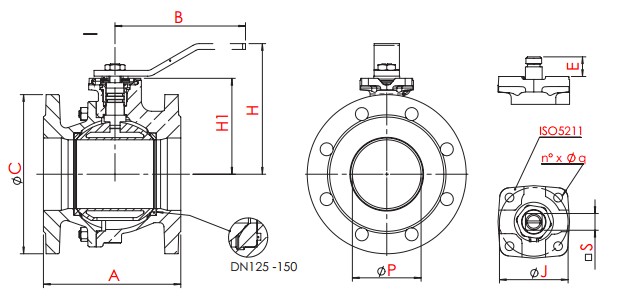

Dimensions BVD Geca ball valves (mm)
| Valve type | A | B | C | H | H1 | P | ISO5211 | J | noxØq | E | S |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BVD015D | 115 | 160 | 95 | 84 | 50.5 | 15 | F04 | 42 | 4x6 | 11.5 | 9 |
| BVD020D | 120 | 160 | 105 | 84 | 52 | 20 | F04 | 42 | 4x6 | 11.5 | 9 |
| BVD025D | 125 | 170 | 115 | 96 | 59 | 25 | F04 | 42 | 4x6 | 14.5 | 11 |
| BVD032D | 130 | 170 | 140 | 101 | 64 | 32 | F04 | 42 | 4x6 | 14.5 | 11 |
| BVD040D | 140 | 230 | 150 | 125 | 78.5 | 40 | F05 | 50 | 4x7 | 17.5 | 14 |
| BVD050D | 150 | 230 | 165 | 135 | 87 | 50 | F05 | 50 | 4x7 | 17.5 | 14 |
| BVD065D | 170 | 230 | 185 | 143 | 95 | 63 | F05 | 50 | 4x7 | 17.5 | 14 |
| BVD080D | 180 | 280 | 200 | 165 | 118 | 76 | F07 | 70 | 4x9 | 20 | 17 |
| BVD100D | 190 | 360 | 220 | 180 | 132.5 | 95 | F07 | 70 | 4x9 | 20 | 17 |
| BVD125D | 200 | 450 | 250 | 225 | 165 | 120 | F10 | 102 | 4x11 | 24.5 | 22 |
| BVD150D | 210 | 560 | 285 | 243 | 182.5 | 145 | F10 | 102 | 4x11 | 24.5 | 22 |
| BVD200D | - | 1000 | 340 | 320 | 230 | 190 | F12 | 125 | 4x13 | 27 | 27 |

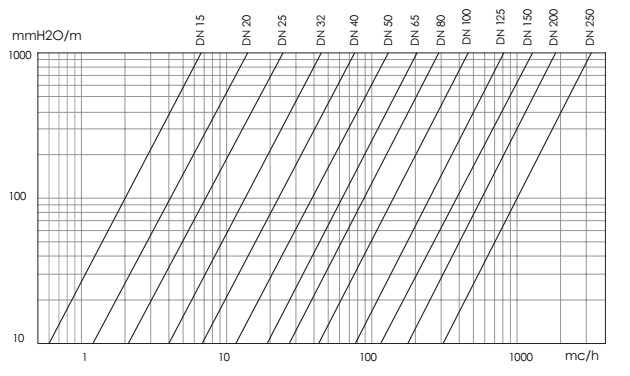

Flow diagram - fluid water
For the images that aren't clear move the mouse over them to zoom.
Prices for Geca ball valves
| Code | Type | Prices without VAT |
|---|---|---|
| BVD015D | Ball valve Geca DN15 | 0.00 |
| BVD020D | Ball valve Geca DN20 | 0.00 |
| BVD025D | Ball valve Geca DN25 | 0.00 |
| BVD032D | Ball valve Geca DN32 | 0.00 |
| BVD040D | Ball valve Geca DN40 | 0.00 |
| BVD050D | Ball valve Geca DN50 | 0.00 |
| BVD065D | Ball valve Geca DN65 | 0.00 |
| BVD080D | Ball valve Geca DN80 | 0.00 |
| BVD100D | Ball valve Geca DN100 | 0.00 |
| BVD125D | Ball valve Geca DN125 | 0.00 |
| BVD150D | Ball valve Geca DN150 | 0.00 |
| BVD200D | Ball valve Geca DN200 | 0.00 |
In case the price is missing or for a list of discounts contact
us directly to receive an offer.
