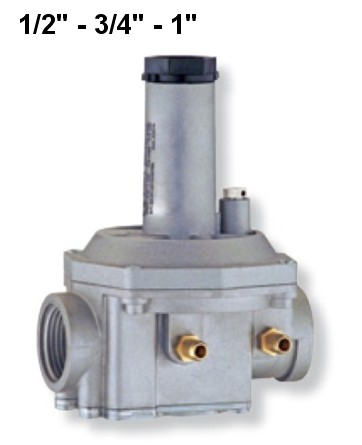

Gas governor Geca 1 bar
- These pressure regulators RG Geca are widely used in supply lines for mixed and combinated burners and in the piped distribution of methane gas and LPG in both industrial and non-industrial applications.
- Spring-loaded governors are of self-acting type with balanced obturator and double safety diaphragm. The double diaphragm allow to use the device within the cabinet, without connecting an external pipe venting.
- Maximum inlet pressure up to 1 bar and outlet pressure up to 300 mbar. The outlet pressure range depends on the selected spring.
- Built according to UNI EN 88 class A - group 2 specifications and can be used for all types of natural gas, LPG or not corrosive gases.
- The governors can be equipped on request with inlet / outlet test point on 1/8" NPT. When ordering add TPIO at the end of the code.
- Materials: complete body: die-cast aluminium Gd-AlSi12Cu - EN AB 46100; diaphragms: NBR 60Sh - DvGW EN 549; plastic components: Yellow POM/PA66 + 25% Gf.

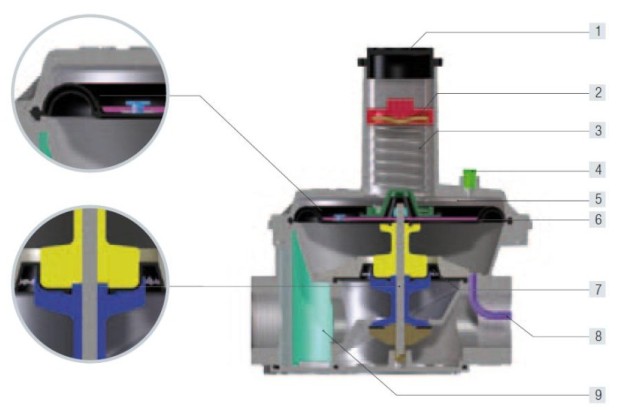

Sectional drawing RG governors
For the images that aren't clear move the mouse over them to zoom.
RG Geca | |||||||
---|---|---|---|---|---|---|---|
1 | Seal cap | 4 | Vent connection | 7 | Working diaphragm | ||
2 | Spring compressor | 5 | Safety diaphragm | 8 | Anti-impurity filter | ||
3 | Spring | 6 | Compensation diaphragm |
RG Geca | |||||||
---|---|---|---|---|---|---|---|
1 | Seal cap | 4 | Vent connection | 7 | Working diaphragm | ||
2 | Spring compressor | 5 | Safety diaphragm | 8 | Sensing tube | ||
3 | Spring | 6 | Compensation diaphragm | 9 | Anti-impurity filter |
Technical specifications Geca gas pressure regulators
Regulator type | Connection | pmax inlet (bar) | Setting outlet (mbar) | Working temperature (0C) |
---|---|---|---|---|
Pressure regulator RG015-1B | 1/2" | 1 | 10 ÷ 300 | -20 ÷ 60 |
Pressure regulator RG020-1B | 3/4" | |||
Pressure regulator RG025-1B | 1" | |||
Pressure regulator RG032-1B | 1 1/4" | |||
Pressure regulator RG040-1B | 1 1/2" | |||
Pressure regulator RG050-1B | 2" | |||
Pressure regulator RGD25-1B | DN25 | 1 | 10 ÷ 300 | -20 ÷ 60 |
Pressure regulator RGD32-1B | DN32 | |||
Pressure regulator RGD40-1B | DN40 | |||
Pressure regulator RGD50-1B | DN50 |
Regulator type | Connection | pmax inlet (bar) | Setting outlet (mbar) | Working temp. (0C) | Filtering (µm) |
---|---|---|---|---|---|
Pressure regulator RG015-FT-1B | 1/2" | 1 | 10 ÷ 300 | -20 ÷ 60 | ≤ 50 |
Pressure regulator RG020-FT-1B | 3/4" | ||||
Pressure regulator RG025-FT-1B | 1" | ||||
Pressure regulator RG032-FT-1B | 1 1/4" | ≤ 50 - Viledon cartridge | |||
Pressure regulator RG040-FT-1B | 1 1/2" | ||||
Pressure regulator RG050-FT-1B | 2" | ||||
Pressure regulator RGD25-FT-1B | DN25 | 1 | 10 ÷ 300 | -20 ÷ 60 | ≤ 50 |
Pressure regulator RGD32-FT-1B | DN32 | ≤ 50 - Viledon cartridge | |||
Pressure regulator RGD40-FT-1B | DN40 | ||||
Pressure regulator RGD50-FT-1B | DN50 |

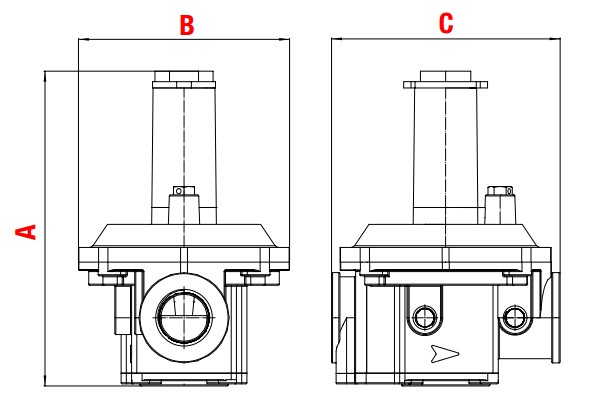

Dimensions Geca gas governors (mm)
Regulator type | A | B | C | Weight (kg) |
---|---|---|---|---|
Gas governor RG015-1B | 154 | 100 | 115 | 0.720 |
Gas governor RG020-1B | 154 | 100 | 115 | 0.688 |
Gas governor RG025-1B | 154 | 100 | 115 | 0.663 |
Gas governor RGD25-1B | 154 | 100 | 115 | 0.663 |
Regulator type | A | B | C | D | Weight (kg) |
---|---|---|---|---|---|
Gas governor RG032-1B | 243.5 | 195.5 | 206 | 194 | 3.140 |
Gas governor RG040-1B | 243.5 | 195.5 | 206 | 194 | 3.060 |
Gas governor RG050-1B | 301 | 245 | 264 | 235 | 5.800 |
Gas governor RGD32-1B | 243.5 | 195.5 | 206 | 194 | 3.140 |
Gas governor RGD40-1B | 243.5 | 195.5 | 206 | 194 | 3.060 |
Gas governor RGD50-1B | 301 | 245 | 264 | 235 | 5.800 |
Spring range
Spring colour | White | Yellow | Neutral | Red | Black | Blue |
---|---|---|---|---|---|---|
Pressure range (mbar) | 5÷14 | 6÷22 | 10÷27 | 28÷70 | 60÷130 | 120÷300 |
The standard version is equipped with the Neutral spring.
Flow diagrams

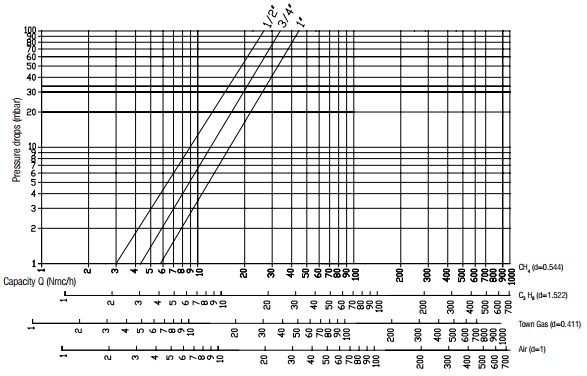

RG 1/2" - 3/4" - 1"

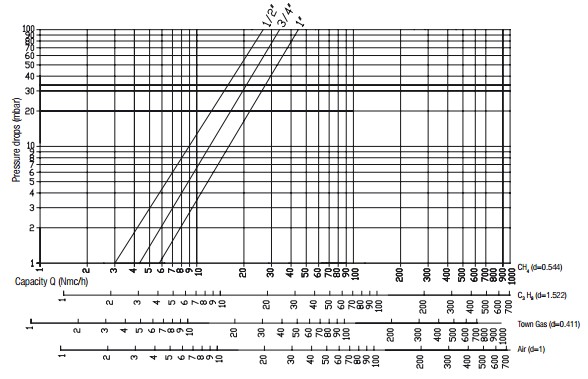

RG 1/2" - 3/4" - 1" with filter

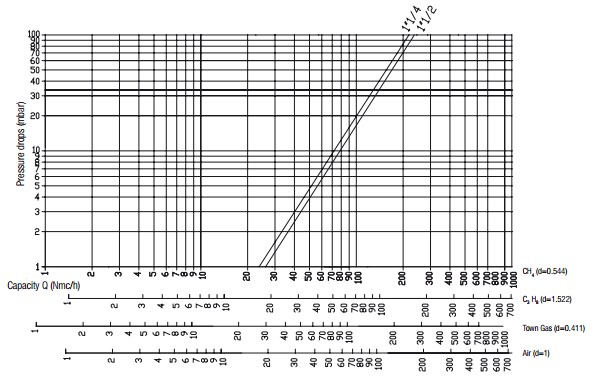

RG 1 1/4" - 1 1/2"

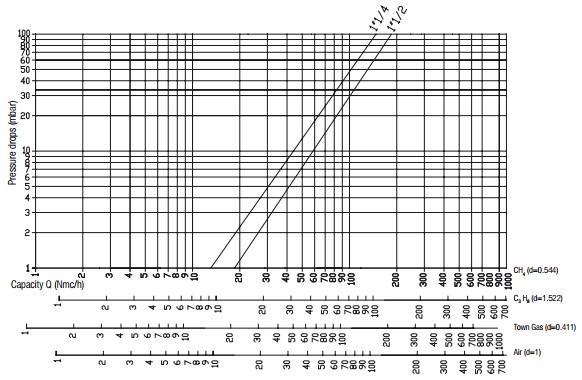

RG 1 1/4" - 1 1/2" with filter

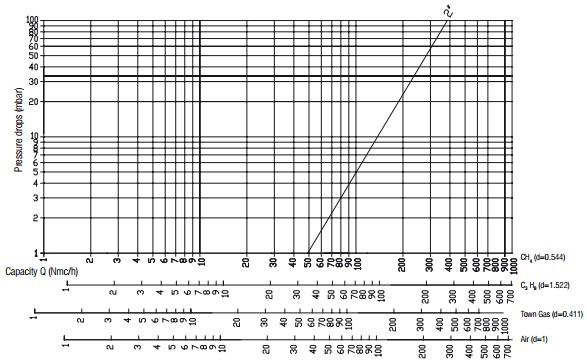

RG 2"

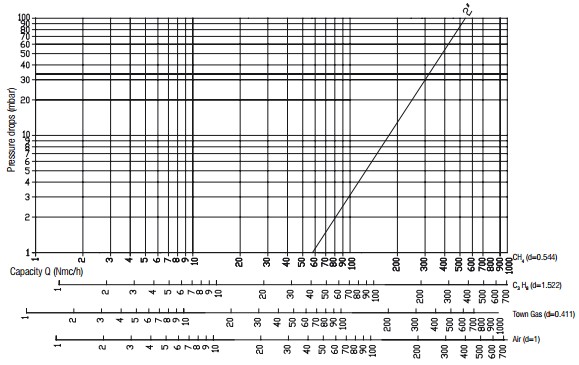

RG 2" with filter
For the images that aren't clear move the mouse over them to zoom.
Prices pressure regulators
Code | Type | Prices without VAT |
---|---|---|
RG015-1B | Gas pressure regulator 1/2" | 0.00 |
RG020-1B | Gas pressure regulator 3/4" | 0.00 |
RG025-1B | Gas pressure regulator 1" | 0.00 |
RG032-1B | Gas pressure regulator 1 1/4" | 0.00 |
RG040-1B | Gas pressure regulator 1 1/2" | 0.00 |
RG050-1B | Gas pressure regulator 2" | 0.00 |
RGD25-1B | Gas pressure regulator DN25 | 0.00 |
RGD32-1B | Gas pressure regulator DN32 | 0.00 |
RGD40-1B | Gas pressure regulator DN40 | 0.00 |
RGD50-1B | Gas pressure regulator DN50 | 0.00 |
RG015-FT-1B | Gas pressure regulator 1/2" with filter | 0.00 |
RG020-FT-1B | Gas pressure regulator 3/4" with filter | 0.00 |
RG025-FT-1B | Gas pressure regulator 1" with filter | 0.00 |
RG032-FT-1B | Gas pressure regulator 1 1/4" with filter | 0.00 |
RG040-FT-1B | Gas pressure regulator 1 1/2" with filter | 0.00 |
RG050-FT-1B | Gas pressure regulator 2" with filter | 0.00 |
RGD25-FT-1B | Gas pressure regulator DN25 with filter | 0.00 |
RGD32-FT-1B | Gas pressure regulator DN32 with filter | 0.00 |
RGD40-FT-1B | Gas pressure regulator DN40 with filter | 0.00 |
RGD50-FT-1B | Gas pressure regulator DN50 with filter | 0.00 |
In case the price is missing or for a list of discounts contact
us directly to receive an offer.
