Motorised butterfly valve DMK Dungs

Motorised valve DMK
  • These motor valves DMK are used for regulating the gas supply on gas burners and gas equipment.
  • DMK is an actuator without zero shut-off as per DIN 3394, Sheet 2.
  • Designed to be used together with actuator DMA...P, DMA...Q, DMA...A but other drives can be supplied on request. Prepared for mechanical and electromechanical actuator drives.
  • Maximum operating pressure: 500 mbar, maximum differential pressure of 100 mbar for threaded models and 250 mbar for flanged.
  • Reduced installation length by a combination of female and male threads. Bigger models achieve this by using an intermediate-flanged design.
  • Application-specfic throat diameter selection of throttle valves.
  • Functional, rugged and maintenance-free.
  • In combination with SAD 1.2 they are used for automatic burner controls MPA22.
  • Does not contain any non-ferrous metals, suitable for gases of up to max 0.1% vol H2S, dry. Can be used for gases of families 1, 2, 3 and other neutral gaseous media.

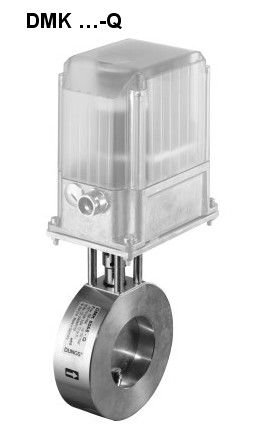

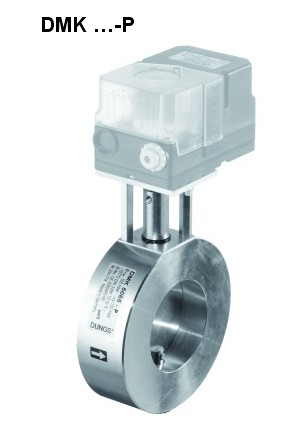

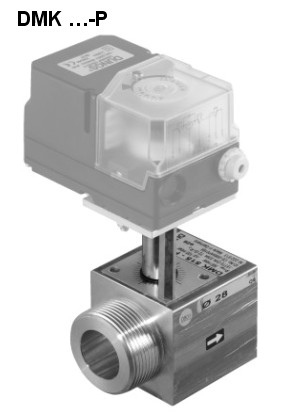

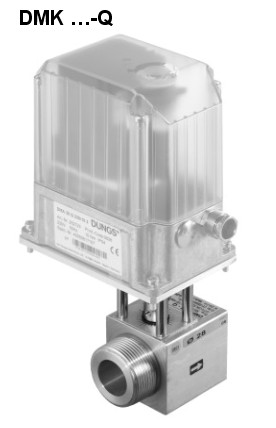

Motorised valve DMK-P thread Motorised valve DMK-P flange Motorised valve DMK-Q thread Motorised valve DMK-Q flange
For the images that aren't clear move the mouse over them to zoom.


Equipment selection

  • The following values must be known for the DMK rating:
1) Maximum volumetric flow: Vmax
2) Pressure loss Δp at maximum volumetric flow.
3) Minimum volumetric flow: Vmin
4) Pressure loss Δp at minimum volumetric flow.
  • The throat diameter can be determined optionally using the kv value or the diagrams 1, 2 and 3. Check whether the required minimum volumetric flow is attained in valve position 0o. If the calculated or read-off value is below the specified minimum volumetric flow, the valve can be used.
  • At smaller volumetric flows, the pressure loss of upstream equipment is reduced and the available Δp of the valve increases. Always select the valve with the largest pressure loss (Δp > 10 mbar) to achieve a good regulating behaviour.
  • For use in the area of subcritical flow condition, the following applies:
Nominal flow DMK



Legend:
Vn (m3/h) volumetric flow, normal state ρn (kg/m3) standard density of gas
Δp (bar) pressure loss via DMK T1 (K) gas temperature upstream of DMK absolute
p2 (bar) pressure downstream of DMK absolute


Technical specifications motorised valves DMK

Valve type Code Rp / DN pmax (mbar) Ø (mm) Δpmax (mbar) kv - 90o kv - 0o Ambient temperature (0C)
DMK 507-P 221041 R 3/4 / Rp 3/4 500 11 100 3.98 0.23 -15÷70
222621 13 6.34 0.28
222620 15 9.59 0.32
222619 17 14.14 0.36
DMK 510-P 221352 R 1 / Rp 1 500 15 100 7.00 0.32
237611 17 10.00 0.36
237612 19 15.30 0.40
237613 21 20.60 0.45
DMK 512-P 221047 R 1 1/4 / Rp 1 1/4 500 15 100 6.58 0.32
222618 17 10.00 0.36
222617 19 13.81 0.40
222616 21 17.88 0.45
222615 23 22.59 0.59
222614 25 29.90 0.53



Valve type Code Rp / DN pmax (mbar) Ø (mm) Δpmax (mbar) kv - 90o kv - 0o Ambient temperature (0C)
DMK 515-P 221052 R 1 1/2 / Rp 1 1/2 500 24 100 21.45 0.51 -15÷70
222613 26 27.63 0.55
222612 28 34.13 0.60
222611 32 48.27 0.68
DMK 520-P 221057 R 2 / Rp 2 500 32 100 40.63 0.68
222610 36 56.07 0.77
222609 40 76.39 0.85
222608 46 116.21 0.89
DMK 5040-P 225975 DN 40 500 40 250 102.20 0.85
DMK 5050-P 225978 DN 50 50 131.40 1.35
DMK 5065-P 225981 DN 65 65 255.50 2.59
DMK 5080-P 225984 DN 80 80 357.70 3.28
DMK 5100-P 225987 DN 100 100 565.75 4.00
DMK 5125-P 225990 DN 125 125 1204.5 5.48



Valve type Code Rp / DN pmax (mbar) Ø (mm) Δpmax (mbar) kv - 90o kv - 0o Ambient temperature (0C)
DMK 510-Q 254011 R 1 / Rp 1 500 21 100 20.60 0.45 -15÷70
DMK 512-Q 254012 R 1 1/4 / Rp 1 1/4 19 13.81 0.40
254013 25 29.90 0.53
DMK 515-Q 254014 R 1 1/2 / Rp 1 1/2 26 27.63 0.55
DMK 520-Q 254015 R 2 / Rp 2 32 40.63 0.68
254016 46 116.21 0.89
DMK 5050-Q 254017 DN 50 50 250 131.40 1.35
DMK 5065-Q 254018 DN 65 65 255.50 2.59
DMK 5080-Q 254019 DN 80 80 357.70 3.28
DMK 5100-Q 254020 DN 100 100 565.75 4.00
DMK 5125-Q 254719 DN 125 125 1204.5 5.48



Valve type Code Rp / DN pmax (mbar) Ø (mm) Δpmax (mbar) kv - 90o kv - 0o Degree of prot.
DMK 510-WG / SAD 1.2 254120 R 1 / Rp 1 500 15 100 7.00 0.32 IP 54
253710 21 20.60 0.45
DMK 512-WG / SAD 1.2 254000 R 1 1/4 /Rp 1 1/4 19 13.81 0.40
254001 25 29.90 0.53
DMK 515-WG / SAD 1.2 254003 R 1 1/2 /Rp 1 1/2 26 27.63 0.55
DMK 520-WG / SAD 1.2 254004 R 2 / Rp 2 32 40.63 0.68
254005 46 116.21 0.89
DMK 5050-WG / SAD 1.2 254006 DN 50 50 250 131.40 1.35 IP 54
DMK 5065-WG / SAD 1.2 252636 DN 65 65 255.50 2.59
DMK 5080-WG / SAD 1.2 254009 DN 80 80 357.70 3.28
DMK 5100-WG / SAD 1.2 252637 DN 100 100 565.75 4.00



Valve type Code Rp / DN pmax (mbar) Ø (mm) Δpmax (mbar) kv - 90o kv - 0o Degree of protection
DMK 510-P / SAD 1.2 246391 R 1 / Rp 1 500 21 100 20.60 0.45 IP 40
DMK 520-P / SAD 1.2 240452 R 2 / Rp 2 32 40.63 0.68
240540 35 56.07 0.77
240541 40 76.39 0.85
238333 46 116.21 0.89


Dimensions motorised valve DMK (mm)

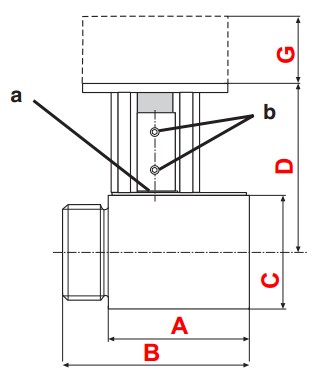

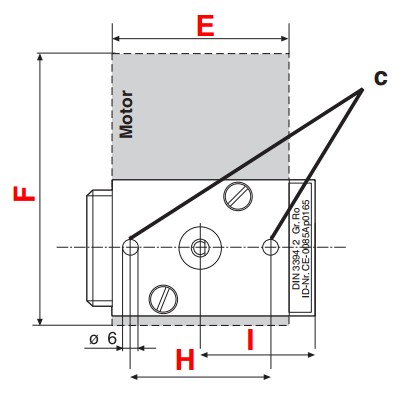

dimensions DMK-P thread 1 dimensions DMK-P thread 2



Valve type A B C D H I
Motorised butterfly valve DMK 507-P 59.0 76.0 40.0 70.0 52 38
Motorised butterfly valve DMK 510-P 67.5 86.5 50.0 75.5 52 38
Motorised butterfly valve DMK 512-P 66.0 86.5 50.0 75.5 52 38
Motorised butterfly valve DMK 515-P 66.0 90.0 60.0 80.0 52 38
Motorised butterfly valve DMK 520-P 70.0 90.0 75.0 87.5 52 38
E, F, G belong to DMA actuators
a - Actuator display for valve position.
b - Stop screw for motor shaft: Set screw ISO 4029-M5 x 6; Socket head screw SW 2.5
c - Holes for motor fixing: Two M5 x 35 pan-head screws with (self-locking) nuts are required for fixing.
d - Holes for motor fixing: Four M5 x 20 pan-head screws with (self-locking) nuts are required for fixing.

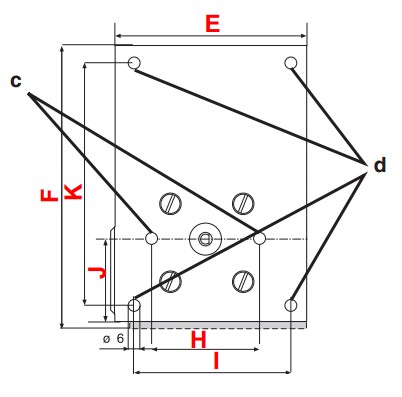

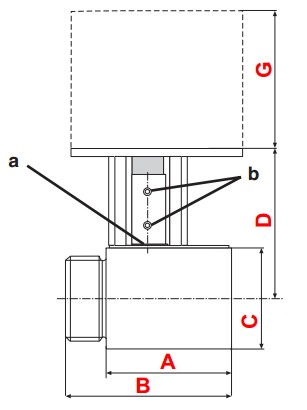

dimensions DMK-Q thread 1 dimensions DMK-Q thread 2



Valve type A B C D H I J K
Motor butterfly valve DMK 507-Q 59.0 76.0 40.0 70.0 52 76 40 122
Motor butterfly valve DMK 510-Q 67.5 86.5 50.0 75.5 52 76 40 122
Motor butterfly valve DMK 512-Q 66.0 86.5 50.0 75.5 52 76 40 122
Motor butterfly valve DMK 515-Q 66.0 90.0 60.0 80.0 52 76 40 122
Motor butterfly valve DMK 520-Q 70.0 90.0 75.0 87.5 52 76 40 122

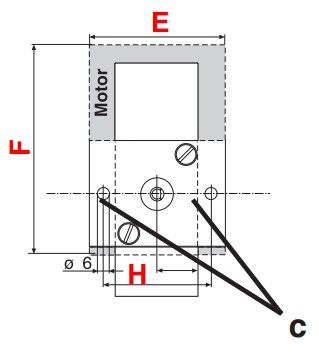

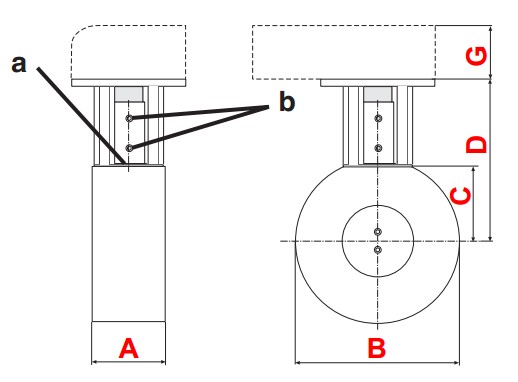

dimensions DMK-P flange 1 dimensions DMK-P flange 2



Valve type A B C D H I
Motorised butterfly valve DMK 5040-P 40 93 42.0 92.0 52 20
Motorised butterfly valve DMK 5050-P 40 105 48.5 98.5 52 20
Motorised butterfly valve DMK 5065-P 40 125 59.5 109.5 52 20
Motorised butterfly valve DMK 5080-P 40 140 67.0 117.0 52 20
Motorised butterfly valve DMK 5100-P 40 160 77.0 127.0 52 20
Motorised butterfly valve DMK 5125-P 40 192 89.5 139.5 52 20
E, F, G belong to DMA actuators

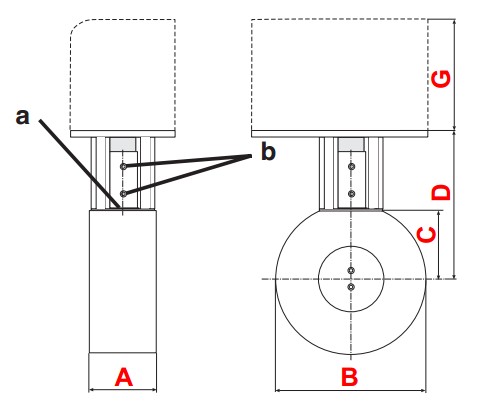

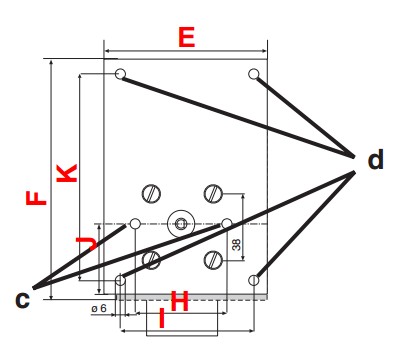

dimensions DMK-Q flange 1 dimensions DMK-Q flange 2



Valve type A B C D H I J K
Motor butterfly valve DMK 5050-Q 40 105 48.5 98.5 52 76 40 122
Motor butterfly valve DMK 5065-Q 40 125 59.5 109.5 52 76 40 122
Motor butterfly valve DMK 5080-Q 40 140 67.0 117.0 52 76 40 122
Motor butterfly valve DMK 5100-Q 40 160 77.0 127.0 52 76 40 122
Motor butterfly valve DMK 5125-Q 40 192 89.5 139.5 52 76 40 122


Flow diagrams DMK - threaded

Vmin (0o):

DMK 510 Vmax (90o - valve open):

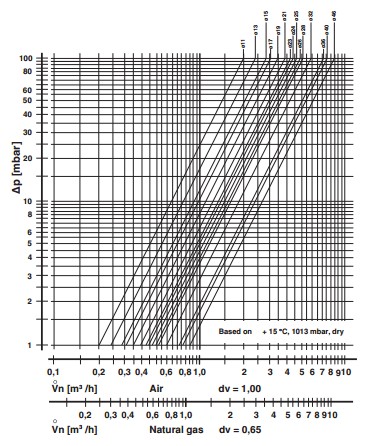

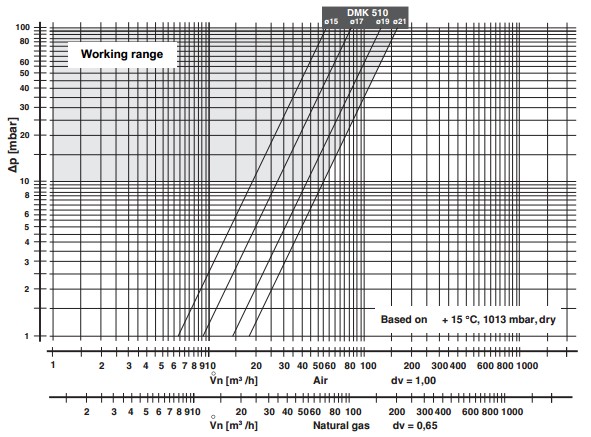

Flow diagram DMK thread closed Flow diagram DMK-510



DMK 507 - DMK 515 Vmax (90o):

DMK 512 - DMK 520 Vmax (90o):

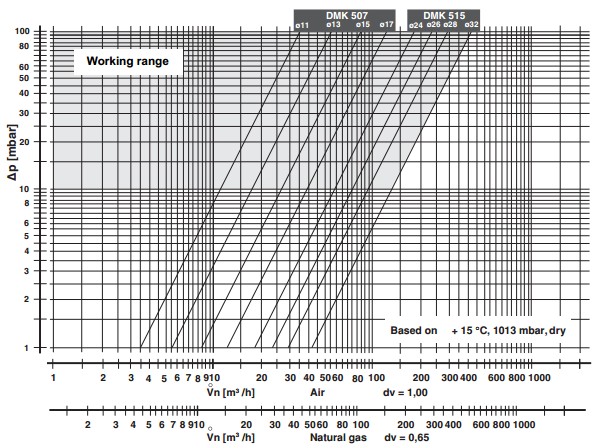

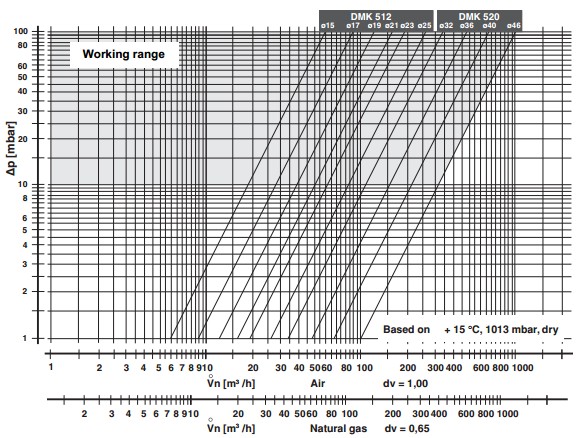

Flow diagram DMK-507-515 Flow diagram DMK-512-520

For the images that aren't clear move the mouse over them to zoom.


Flow diagrams DMK - flanged

Vmin (0o):

DMK 5040 - DMK 5080 Vmax (90o - valve open):

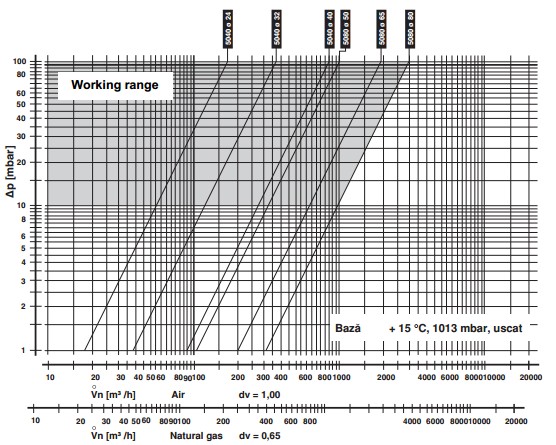

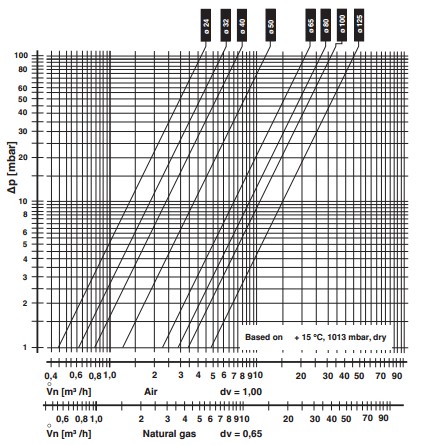

Flow diagram DMK flange closed Flow diagram DMK-5040-5080



DMK 5050 - DMK 5100 Vmax (90o):

DMK 5065 - DMK 5125 Vmax (90o):

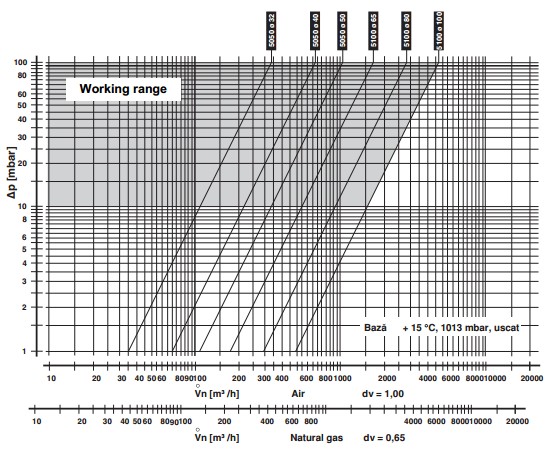

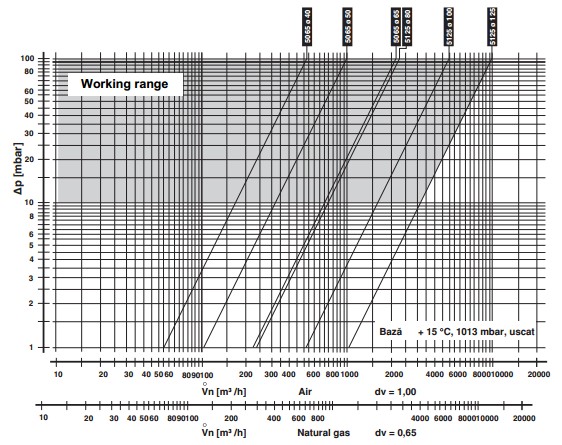

Flow diagram DMK-5050-5100 Flow diagram DMK-5065-5125

- For more drawings or details access the operation manual.
For the images that aren't clear move the mouse over them to zoom.


Prices motor valves DMK

Code Type DMK ...-P Prices without VAT
221041 Motor valve DMK 507-P 11mm 0.00
222621 Motor valve DMK 507-P 13mm 0.00
222620 Motor valve DMK 507-P 15mm 0.00
222619 Motor valve DMK 507-P 17mm 0.00
221352 Motor valve DMK 510-P 15mm 0.00
237611 Motor valve DMK 510-P 17mm 0.00
237612 Motor valve DMK 510-P 19mm 0.00
237613 Motor valve DMK 510-P 21mm 0.00
221047 Motor valve DMK 512-P 15mm 0.00
222618 Motor valve DMK 512-P 17mm 0.00
222617 Motor valve DMK 512-P 19mm 0.00
222616 Motor valve DMK 512-P 21mm 0.00
222615 Motor valve DMK 512-P 23mm 0.00
222614 Motor valve DMK 512-P 25mm 0.00
221052 Motor valve DMK 515-P 24mm 0.00
222613 Motor valve DMK 515-P 26mm 0.00
222612 Motor valve DMK 515-P 28mm 0.00
222611 Motor valve DMK 515-P 32mm 0.00
221057 Motor valve DMK 520-P 32mm 0.00
222610 Motor valve DMK 520-P 36mm 0.00
222609 Motor valve DMK 520-P 40mm 0.00
222608 Motor valve DMK 520-P 46mm 0.00
225975 Motor valve DMK 5040-P 40mm 0.00
225978 Motor valve DMK 5050-P 50mm 0.00
225981 Motor valve DMK 5065-P 65mm 0.00
225984 Motor valve DMK 5080-P 80mm 0.00
225987 Motor valve DMK 5100-P 100mm 0.00
225990 Motor valve DMK 5125-P 125mm 0.00
DMK ...-Q
254011 Motor valve DMK 510-Q 21mm 0.00
254012 Motor valve DMK 512-Q 19mm 0.00
254013 Motor valve DMK 512-Q 25mm 0.00
254014 Motor valve DMK 515-Q 26mm 0.00
254015 Motor valve DMK 520-Q 32mm 0.00
254016 Motor valve DMK 520-Q 46mm 0.00
254017 Motor valve DMK 5050-Q 50mm 0.00
254018 Motor valve DMK 5065-Q 65mm 0.00
254019 Motor valve DMK 5080-Q 80mm 0.00
254020 Motor valve DMK 5100-Q 100mm 0.00
254719 Motor valve DMK 5125-Q 125mm 0.00
DMK / SAD 1.2
254120 DMK 510-WG / SAD 1.2 Ø15 gas 0.00
253710 DMK 510-WG / SAD 1.2 Ø21 gas 0.00
254000 DMK 512-WG / SAD 1.2 Ø19 gas 0.00
254001 DMK 512-WG / SAD 1.2 Ø25 gas 0.00
254003 DMK 515-WG / SAD 1.2 Ø26 gas 0.00
254004 DMK 520-WG / SAD 1.2 Ø32 gas 0.00
254005 DMK 520-WG / SAD 1.2 Ø46 gas 0.00
254006 DMK 5050-WG / SAD 1.2 Ø50 air 0.00
252636 DMK 5065-WG / SAD 1.2 Ø65 air 0.00
254009 DMK 5080-WG / SAD 1.2 Ø80 air 0.00
252637 DMK 5100-WG / SAD 1.2 Ø100 air 0.00
246391 DMK 510-P / SAD 1.2 Ø21 gas 0.00
240452 DMK 510-P / SAD 1.2 Ø32 gas 0.00
240540 DMK 510-P / SAD 1.2 Ø36 gas 0.00
240541 DMK 510-P / SAD 1.2 Ø40 gas 0.00
238333 DMK 510-P / SAD 1.2 Ø46 gas 0.00
In case the price is missing or for a list of discounts contact us directly to receive an offer.
