GasBloc GB-MP D01 Dungs multifunctional gas control
- This GB GasBloc is a multiple actuator as per EN 126 for fully automatic operation, it combines a pressure regulator and safety shut-off valves.
- Two stage or electrically modulating mode for burner applications.
- Modulator with adjustable minimum and maximum limiter.
- Ignition gas, optional.
- Constant volume flow using servo pressure regulator with servo regulator.
- Maximum operating pressure up to 65 mbar (6.5 kPa).
- Different variants according to application.
- Suitable for gases of gas families 1, 2, 3, as per EN 437 and other neutral combustion gases.
- Note: This series is no longer part of the Dungs main product line.

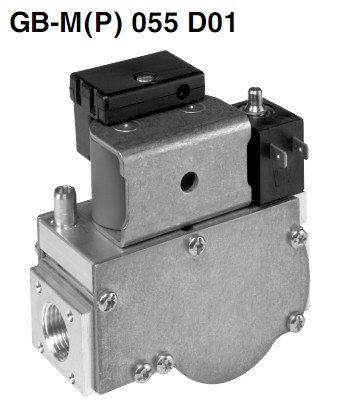

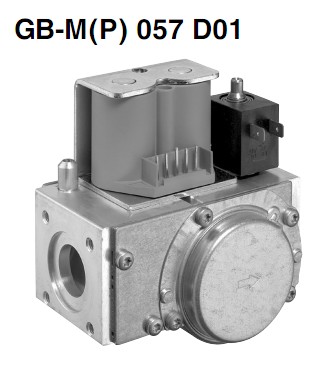

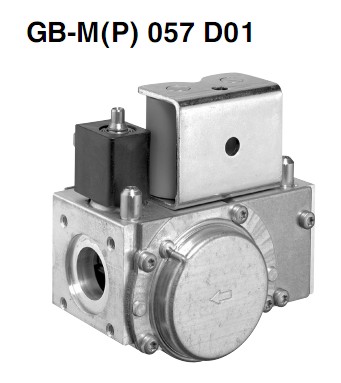

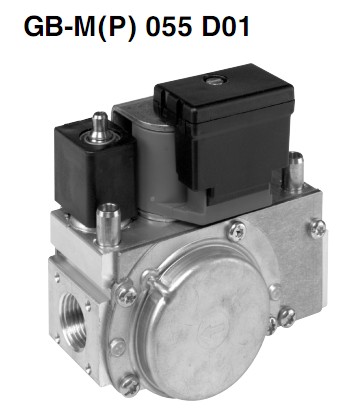

- Detailed pictures for available models (move the mouse over them to zoom):

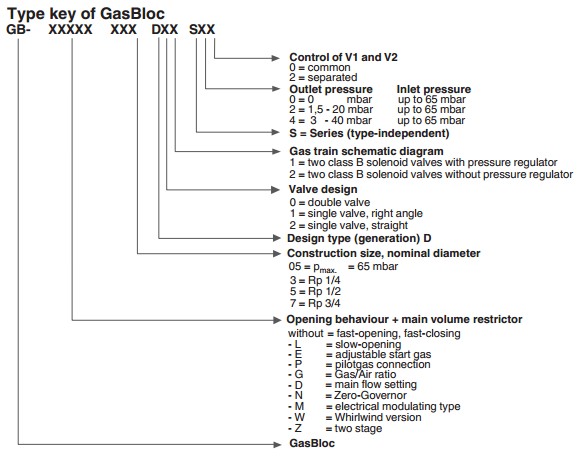

GB Gasbloc type key
For the images that aren't clear move the mouse over them to zoom.

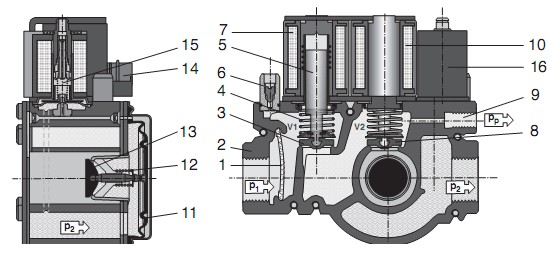

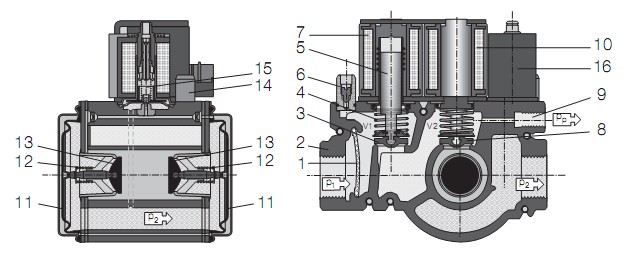

Sectional drawings GB-MP
| GB-M-P 055-057 D01 | |||||||
|---|---|---|---|---|---|---|---|
| 1 | Fine-meshed strainer | 7 | Solenoid V1 | 12 | Return spring | ||
| 2 | Housing | 8 | Valve V2 | 13 | Operating valve | ||
| 3 | Valve V1 | 9 | Ignition gas connection | 14 | Electrical connection | ||
| 4 | Closing spring | 10 | Solenoid V2 | 15 | Servo-pressure regulator | ||
| 5 | Plunger V1 | 11 | Working diaphragm | 16 | Modulator coil | ||
| 6 | Test nipple | ||||||
Technical specifications for GB-MP Dungs
| GasBloc type | Code | Rp/DN | pmax (mbar) | Outlet pressure range - neutral gaz (mbar) | Outlet pressure range - liquid gas (mbar) | p2max-p2min (mbar) |
|---|---|---|---|---|---|---|
| GB-M 055 D01 | 240850 | 1/2 | 65 | 1.5÷20 | 3÷37 | ≥3 |
| GB-MP 055 D01 | 240851 | |||||
| GB-MP 055 D01 | 245322 | |||||
| GB-MP 055 D01 GPL | 248306 | |||||
| GB-M 057 D01 | 249069 | 3/4 | ||||
| GB-MP 057 D01 | 250502 |
| GasBloc type | Code | Nominal flow air* (m3/h) | Voltage (V) | Frequency (Hz) | Temp.** (oC) | Closing time (sec) | Opening time (sec) |
|---|---|---|---|---|---|---|---|
| GB-M 055 D01 | 240850 | 3.3 | 230 V | 50÷60 | -15÷75 | <1 | <1 |
| GB-MP 055 D01 | 240851 | <1 | |||||
| GB-MP 055 D01 | 245322 | 24 V | <10 | ||||
| GB-MP 055 D01 GPL | 248306 | 0÷75 | <1 | ||||
| GB-M 057 D01 | 249069 | 5.3 | 230 V | -15÷75 | <10 | ||
| GB-MP 057 D01 | 250502 | <10 |
* at Δp 5 mbar (0.5 kPa).
** In case of LPG don't use below freezing.

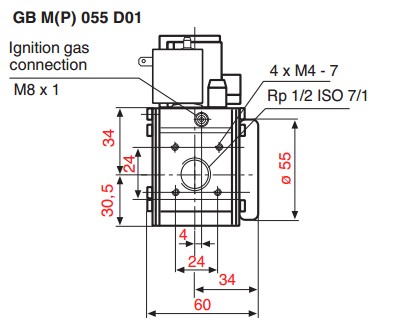

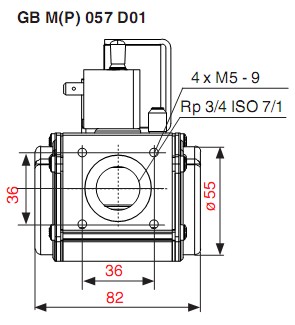

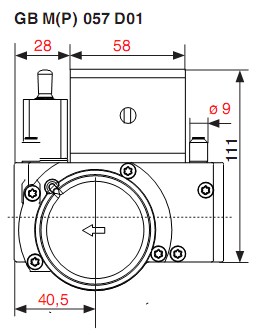

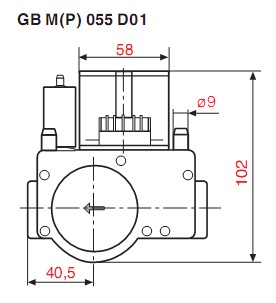

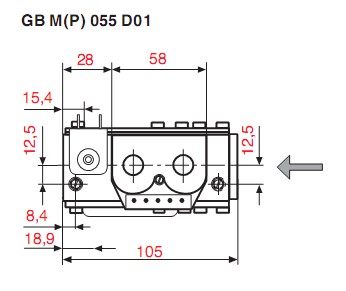

Dimensions Dungs GasBloc GB-M(P) (mm)

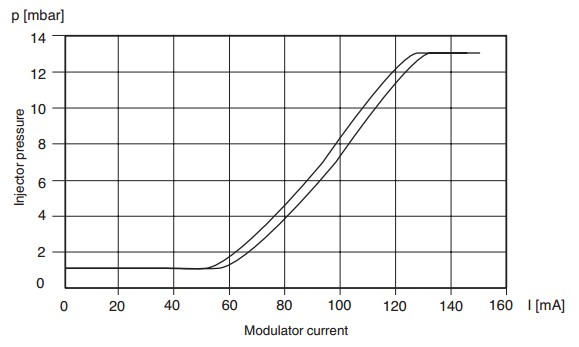

Current-pressure characteristic GB-MP

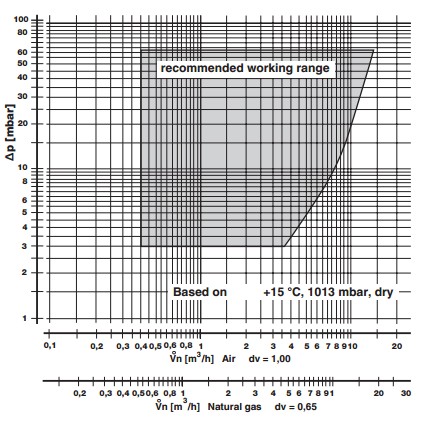

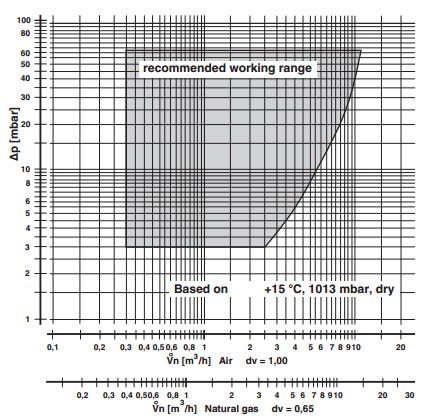

Flow diagrams GB-MP
- Gas blocks type GB-MP 055 D01
- Gas blocks type GB-MP 057 D01
- For more drawings or details access the operation manual.
