>> Valve proving systems >> VPM
Control unit for system leakage tests VPM-VC VPM-LC Dungs
- These valve proving systems VPM-VC and line checking systems VPM-LC have been designed for automatic leak testing between two solenoid valves in gas-consuming devices, either prior to start-up or after switching off the system.
- The program sequence, filling and venting parameters as well as program times can be adjusted by the user according to the system requirements. On VPM-LC only the filling and program times can be adjusted.
- They are equipped with one or two gas pressure switches and additional double solenoid valves and pilot valves are required depending on the system.
- VPM was designed to be used in laboratories, large-scale catering establishments and process engineering plants. The leakage test is performed before opening a central gas shut-off valve that releases gas supply to several gas-consuming devices. Uncontrolled escape of gas at the various extraction points is thus avoided.
- LED indicators signal leaky valves.
- For the VPM-VC three different program sequences can be selected:
1) Valve test before burner start.
2) Valve test after burner switch-start.
3) Valve test after burner switch-off with optimised valve operating cycles.
Technical specifications valve proving system VPM Dungs
| Type | Code | Voltage (V) | Frequency (Hz) | Degree of protection | Operation temp. (oC) | Standby power (W) | Operation power (W) |
|---|---|---|---|---|---|---|---|
| VPM-VC kpl. | 259696 | 230 | 50-60 | IP 42 | -20 ÷ 60 | 3.1 | 5.4 |
| VPM-VC kpl. | 259697 | 115 | 2.6 | 4.6 | |||
| VPM-VC Basis | 258625 | 230 | 3.1 | 5.4 | |||
| VPM-VC Basis | 258890 | 115 | 2.6 | 4.6 | |||
| VPM-LC kpl. | 259146 | 230 | 3.1 | 5.4 | |||
| VPM-LC kpl. | 259147 | 115 | 2.6 | 4.6 | |||
| VPM-LC Basis | 259730 | 220 | 3.1 | 5.4 | |||
| VPM-LC Basis | 259731 | 110 | 2.6 | 4.6 | |||
| VPM-VC kpl - DSLC | 264114 | 230 | 3.1 | 5.4 | |||
| VPM-VC kpl - DSLC | La cerere | 115 | 2.6 | 4.6 |

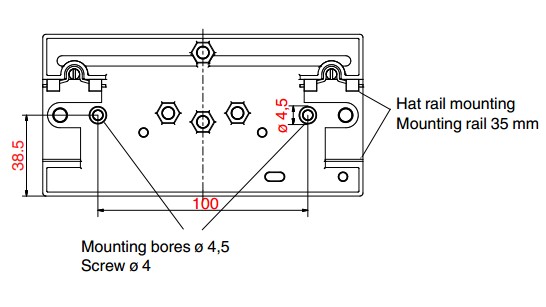

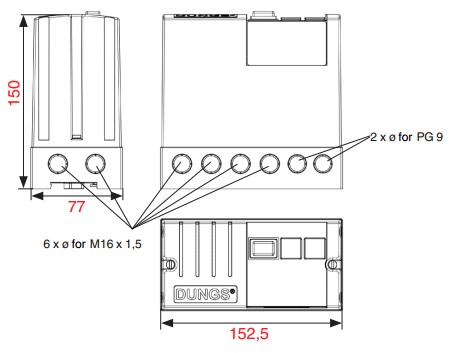

Dimensions leakage test control units (mm)
For the images that aren't clear move the mouse over them to zoom.
Installation examples VPM-VC

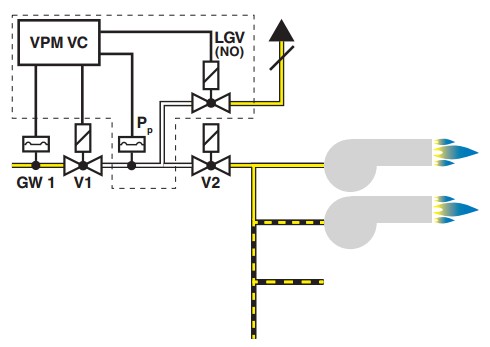

1a. Direct valve check via LGV, venting through roof

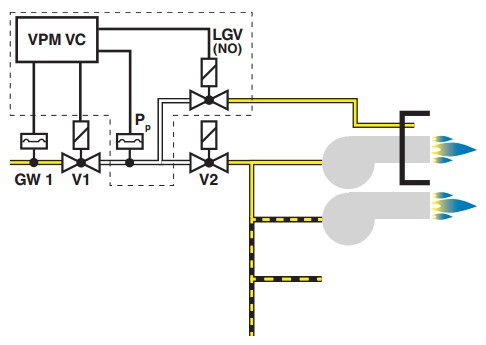

1b. Direct valve check via LGV, venting into the burner chamber

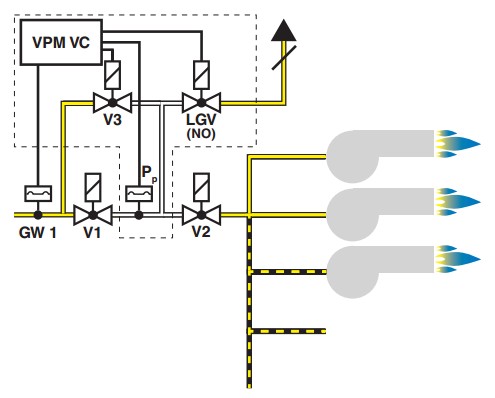

2. Valve check via pilot valves V3, LGV venting through the roof

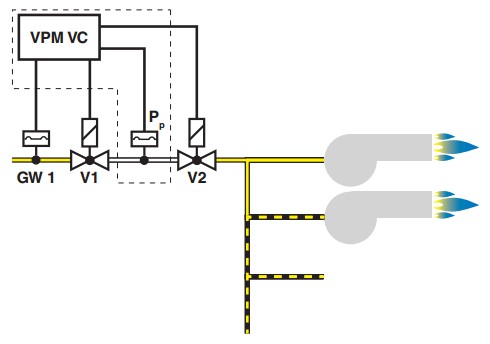

3. Direct valve check

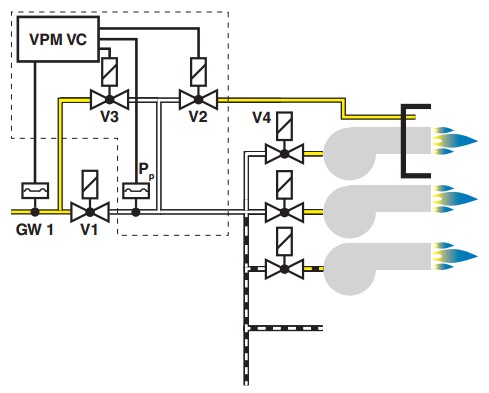

4. Direct valve check via pilot valves, venting into the burner chamber

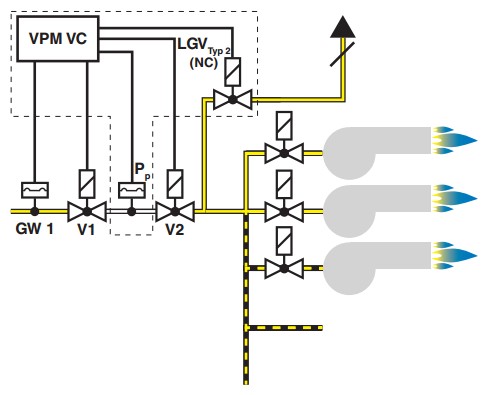

5a. Valve check via pilot valves, venting to V2 via LGVtype2 (Normally closed)

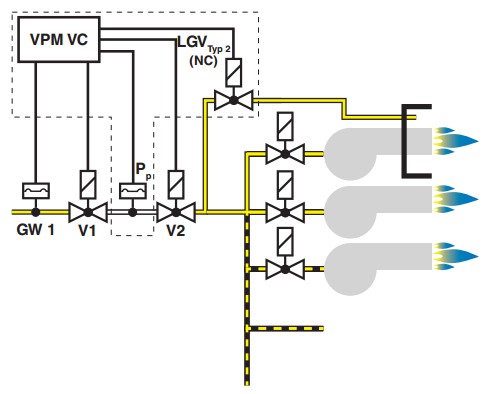

5b. Valve check via pilot valves, venting to V2 via LGVtype2 (Normally closed) into the burner chamber

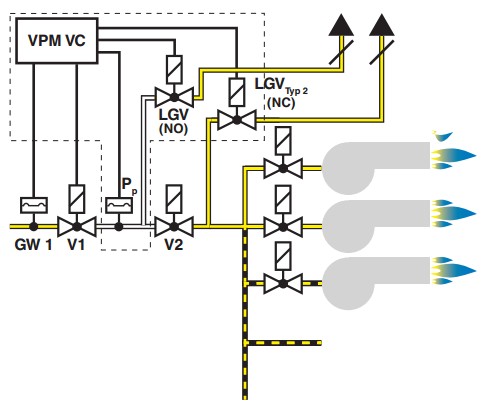

6a. Valve check via pilot valves and LGV, venting to V2 via LGVtype2 (Normally closed). Venting through roof

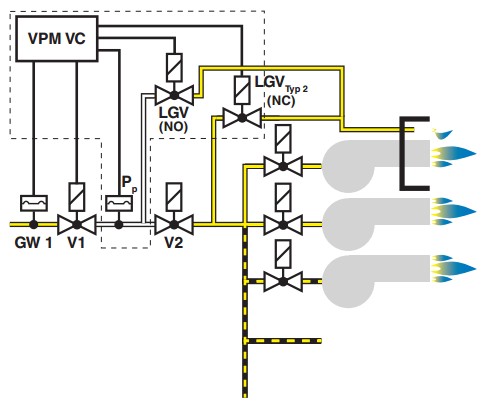

6b. Valve check via pilot valves and LGV, venting to V2 via LGVtype2 (Normally closed)
Installation examples VPM-LC

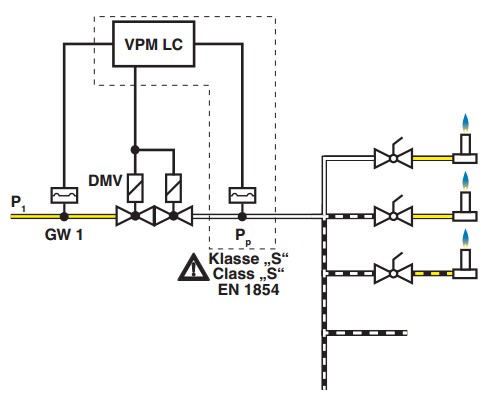

1. Line check via gas pressure switch without idle state control, DMV

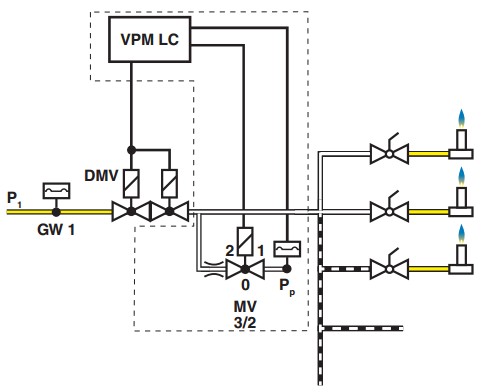

2. Direct line check via gas pressure switch with idle state control, MV
VPM Accessories
| Accessories | |||
|---|---|---|---|
| Gas pressure switch | LGW...A4 | GW…A6 | GW…A4 HP |
| Pilot solenoid valve | DMV… | MV 502 | MVD… |
| Burner management VisionBox | MPA | ||
Test volume for Dungs control units: MV, DMV, MB-DLE, MB-ZRDLE, MB-VEF, MBC.
| Rp/DN | VL1,2,3,.. (dm3/m) | Type | Vp (dm3/m) |
|---|---|---|---|
| Rp 1/4 | - | MV 502 | - |
| Rp 3/8 | - | MV 203, … 503 | - |
| Rp 1/2 | 0.2 | MV 205, … 505 | 0.07 |
| Rp 3/4 | 0.3 | MV 207, … 507 | 0.12 |
| Rp 1 | 0.5 | MV 210, … 510 | 0.2 |
| Rp 1 1/2 | 1.4 | MV 215, … 515 | 0.5 |
| Rp 2 | 2.0 | MV 220, … 520 | 0.9 |
| DN 20 | 0.3 | MV 2020 | 0.12 |
| DN 25 | 0.5 | - | - |
| DN 40 | 1.4 | MV… 2040, … 5040 | 0.7 |
| DN 50 | 2.0 | MV… 2050, … 5050 | 1.2 |
| DN 65 | 3.4 | MV… 2065, … 5065 | 2.0 |
| DN 80 | 5.0 | MV… 2080, … 5080 | 3.8 |
| DN 100 | 8.0 | MV… 2100, … 5100 | 6.5 |
| DN 125 | 12.4 | MV… 2125, … 5125 | 12.5 |
| DN 150 | 17.8 | MV… 2150, … 5150 | 17.5 |
| DN 200 | 31.4 | MV… 2200 | 46.0 |
| Rp/DN | Type | Vp (dm3 /m) | Type | Vp (dm3 /m) | Type | Vp (dm3 /m) | Type | Vp (dm3 /m) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rp 3/8 | DMV-D(LE) 503/11 | 0.03 | MB-D(LE) 403 / MB-ZRD(LE) 403 | 0.04 | - | - | - | - | |||
| Rp 1/2 | - | - | MB-D(LE) 405 / MB-ZRD(LE) 405 | 0.11 | - | - | - | - | |||
| Rp 3/4 | DMV-D(LE) 507/11 | 0.10 | MB-D(LE) 407 / MB-ZRD(LE) 407 | 0.11 | MB-VEF 407 | 0.11 | MBC 300 | - | |||
| Rp 1 | - | - | MB-D(LE) 410 / MB-ZRD(LE) 410 | 0.33 | - | - | - | - | |||
| Rp 1 1/4 | DMV-D(LE) 512/11 | 0.24 | MB-D(LE) 412 / MB-ZRD(LE) 412 | 0.33 | MB-VEF 412 | 0.33 | MBC 700 | - | |||
| Rp 1 1/2 | - | - | MB-D(LE) 415 / MB-ZRD(LE) 415 | 0.24 | MB-VEF 415 | 0.24 | - | - | |||
| Rp 2 | DMV-D(LE) 520/11 | 0.24 | MB-D(LE) 420 / MB-ZRD(LE) 420 | 0.24 | MB-VEF 420 | 0.24 | MBC 1200 | 0.10 | |||
| Rp 2 | DMV-D(LE) 525/11 | 0.44 | MB-VEF 425 | 0.44 | - | - | |||||
| DN 40 | DMV-D(LE) 5040/11 | 0.38 | - | - | |||||||
| DN 50 | DMV-D(LE) 5050/11 | 0.39 | - | - | |||||||
| DN 65 | DMV-D(LE) 5065/11, …/12 | 0.69 | MBC 1900 | 1.47 | |||||||
| DN 80 | DMV-D(LE) 5080/11, …/12 | 1.47 | MBC 3100 | 2.28 | |||||||
| DN 100 | DMV-D(LE) 5100/11, …/12 | 2.28 | MBC 5000 | 3.55 | |||||||
| DN 125 | DMV-D(LE) 5125/11,… | 3.56 | - | - | |||||||
| DN 125 | DMV-D(LE) 5125/12 | 6.00 | MBC 7000 | 6.00 | |||||||
Prices
| Code | Type | Prices without VAT |
|---|---|---|
| 259696 | VPM-VC kpl. 230VAC | 0.00 |
| 259697 | VPM-VC kpl. 115VAC | 0.00 |
| 258625 | VPM-VC Basis 230VAC | 0.00 |
| 258890 | VPM-VC Basis 115VAC | 0.00 |
| 259146 | VPM-LC kpl. 230VAC | 0.00 |
| 259147 | VPM-LC kpl. 115VAC | 0.00 |
| 259730 | VPM-LC Basis 230VAC | 0.00 |
| 259731 | VPM-LC Basis 115VAC | 0.00 |
| 264114 | VPM-VC kpl. - DSLC 230VAC | 0.00 |
In case the price is missing or for a list of discounts contact
us directly to receive an offer.
