Actuator DMA Dungs
- These actuators DMA guarantee a precise rotation between 0o and 90o; their selection depends on the type of the application.
- They are used together with motorised butterfly valves DMK and linear flow control DML.
- The actuator is distinguished by continuously adjustable cams. They have a mechanical position indicator readable from the outside.
- Optional switchover between Automatic and Manual operating mode.
- DMA… 3 and DMA…. 4 mechanical models with 3 or 4 cams. Two cams are used as end stop; the remaining cams are available for controlling external devices. The cams are indefinitely adjustable.
- DMA… 0 is electronic. An analogue signal (current of 4-20 mA) is converted into a rotational movement of the drive shaft. The working range is freely definable between 0-90o. Any rotation angle within the defined working range may be adjusted by means of a potentiometer. The limits of the working range can be secured by means of two limit switches.
For the images that aren't clear move the mouse over them to zoom.
Technical specifications DMA actuators
| Actuator type | Code | Voltage (V) | Operating time 90o (s) | Control | Operating mode | No. cams | Degree of protection | Ambient temp. (oC) | Nominal torque (Nm) |
|---|---|---|---|---|---|---|---|---|---|

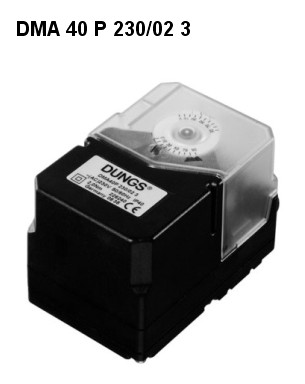

| DMA 40 P 230/02 3 L | 226240 | 230 V(AC) | 40 | 230 V | automatic | 3 | IP 40 | 0÷60 | 2 |
| DMA 40 P 230/02 4 L | 238810 | automatic / manual | 4 | ||||||
| DMA 30 P 230/03 0 L | 226239 | 30 | 4÷20mA | 3 | 0÷50 | 3 |
| Actuator type | Code | Voltage (V) | Operating time 90o (s) | Control | Operating mode | No. cams | Degree of protection | Ambient temp. (oC) | Nominal torque (Nm) |
|---|---|---|---|---|---|---|---|---|---|

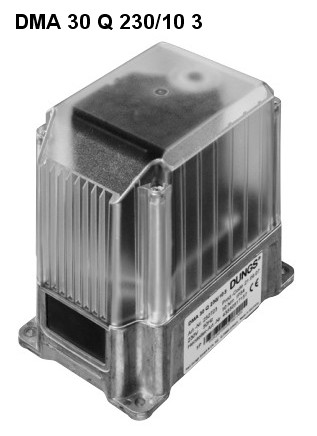

| DMA 30 Q 230/10 3 L | 252723 | 230 V(AC) | 30 | 230 V | automatic | 3 | IP 54 | 0÷60 | 10 |

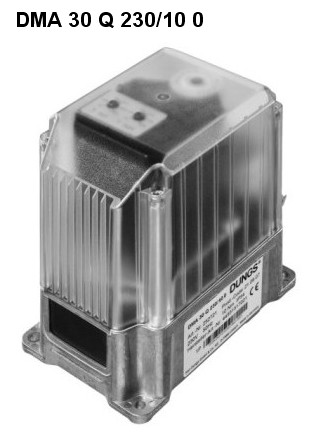

| DMA 30 Q 230/10 0 L | 252721 | 4÷20mA | automatic / manual | 0÷50 |
| Actuator type | Code | Voltage (V) | Operating time 90o (s) | Control | Operating mode | No. cams | Degree of prot. | Ambient temp. (oC) | Nominal torque (Nm) |
|---|---|---|---|---|---|---|---|---|---|

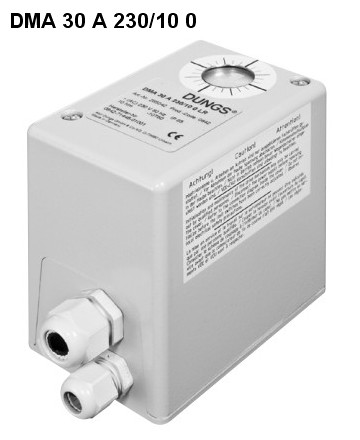

| DMA 30 A 230/10 3 LR | 255039 | 230 V(AC) | 30 | 230 V | automatic | 3 | IP 65 | -15÷60 | 10 |
| DMA 30 A 115/10 3 LR | 255041 | 115 V(AC) | 115 V | ||||||
| DMA 30 A 24/10 3 LR | 255482 | 24 V(DC) | 24 V | ||||||
| DMA 30 A 230/10 0 LR | 255042 | 230 V(AC) | 4÷20mA | automatic / manual | 2 | -10÷60 | |||
| DMA 30 A 115/10 0 LR | 255044 | 115 V(AC) |
Dimensions actuators DMA (mm)

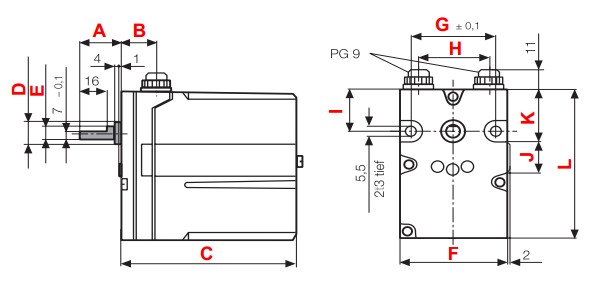

| Actuator type | A | B | C | D | E | F | G | H | I | J | K | L | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DMA 40 P 230/02 3 L | 25 | 22 | 66 | Ø14 | Ø8 | 65 | 52 | 42 | 28 | 22 | 35 | 99 | 0.4 |
| DMA 40 P 230/02 4 L | 25 | 22 | 114 | Ø14 | Ø8 | 65 | 52 | 42 | 28 | 22 | 35 | 99 | 0.5 |
| DMA 30 P 230/03 0 L | 25 | 22 | 114 | Ø14 | Ø8 | 65 | 52 | 42 | 28 | 22 | 35 | 99 | 0.5 |

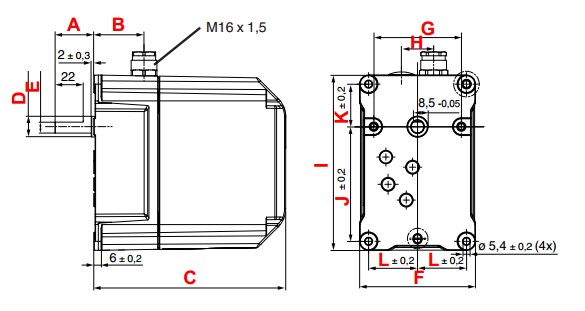

| Actuator type | A | B | C | D | E | F | G | H | I | J | K | L | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DMA 30 Q 230/10 3 L | 30.1 | 39 | 149 | Ø16 | Ø10 | 90 | 68 | 25 | 136 | 89 | 33 | 38 | 1.6 |
| DMA 30 Q 230/10 0 L | 30.1 | 39 | 149 | Ø16 | Ø10 | 90 | 68 | 25 | 136 | 89 | 33 | 38 | 1.7 |

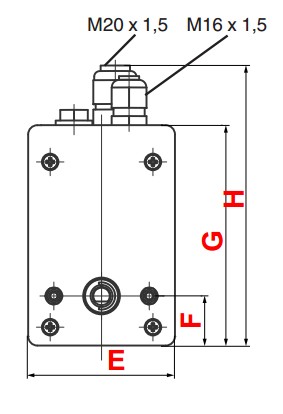

| Actuator type | A | B | C | D | E | F | G | H | I | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| DMA 30 A 230/10 3 LR | 30 | 120 | 25 | Ø10 | 80 | 27 | 120 | 153 | 52 | 2.3 |
| DMA 30 A 115/10 3 LR | 30 | 120 | 25 | Ø10 | 80 | 27 | 120 | 153 | 52 | 2.3 |
| DMA 30 A 24/10 3 LR | 30 | 120 | 25 | Ø10 | 80 | 27 | 120 | 153 | 52 | 2.3 |
| DMA 30 A 230/10 0 LR | 30 | 120 | 25 | Ø10 | 80 | 27 | 120 | 153 | 52 | 2.5 |
| DMA 30 A 115/10 0 LR | 30 | 120 | 25 | Ø10 | 80 | 27 | 120 | 153 | 52 | 2.5 |
Adjust the rotation angle for DMA…0
1) Do not move the cams for the limit switches during the adjustment process.
2) Supply with a nominal input current of 4 mA.
3) Adjust the desired rotation angle position MIN by means of Ymin potentiometer (adjustment range 0-100% = 0-90o)
4) Supply with a nominal input current of 20 mA.
5) Adjust the desired rotation angle position MAX by means of Ymax potentiometer (adjustment range 25-100% = 22.5-90o)
Attention! Ymin must always be 25% smaller than Ymax (reference: 90o = 100%)
Prices actuators DMA
| Code | Type | Prices without VAT |
|---|---|---|
| 226239 | Actuator DMA 30 P 230/03 0 | 0.00 |
| 226240 | Actuator DMA 40 P 230/03 3 | 0.00 |
| 238810 | Actuator DMA 40 P 230/03 4 | 0.00 |
| 252721 | Actuator DMA 30 Q 230/10 0 | 0.00 |
| 252723 | Actuator DMA 30 Q 230/10 3 | 0.00 |
| 255039 | Actuator DMA 30 A 230/10 3 LR | 0.00 |
| 255040 | Actuator DMA 30 A 115/10 3 LR X | 0.00 |
| 255041 | Actuator DMA 30 A 115/10 3 LR | 0.00 |
| 255482 | Actuator DMA 30 A 24/10 3 LR | 0.00 |
| 255042 | Actuator DMA 30 A 230/10 0 LR | 0.00 |
| 255043 | Actuator DMA 30 A 230/10 0 LR X | 0.00 |
| 255044 | Actuator DMA 30 A 115/10 0 LR | 0.00 |
| 229813 | Actuator SAD 1.2 IP40 fara cablu | 0.00 |
| 254388 | Actuator SAD 1.5 IP40 0.7m | 0.00 |
| 250621 | Actuator SAD 1.5 IP40 1.0m | 0.00 |
| 243602 | Actuator SAD 1.5 IP40 1.5m | 0.00 |
| 239700 | Actuator SAD 3.0 IP40 0.6m | 0.00 |
| 245165 | Actuator SAD 3.0 IP40 1.5m | 0.00 |
| 250730 | Actuator SAD 1.2 WG IP54 1.5m | 0.00 |
| 254270 | Actuator SAD 1.2 WG IP54 2.0m | 0.00 |
| 250731 | Actuator SAD 3.0 WG IP54 1.5m | 0.00 |
| 254271 | Actuator SAD 3.0 WG IP54 2.0m | 0.00 |
| 240498 | Potentiometru DMA P | 0.00 |
In case the price is missing or for a list of discounts contact
us directly to receive an offer.
