Differential pressure switch GGW A4 Dungs for gas, air, flue, exhaust gases
- These pressure switches GGW A4, A4-U, A4/2, A4-U/2 are designed for automatic burner controls, for usage in furnace, ventilation and air conditioning applications.
- It is suitable for switching a circuit on, off or over on changes in actual pressure value relative to the set reference value. The reference value (switching point) is adjusted on a setting wheel provided with a scale. The test nipple is integrated in metal housings as standard.
- Maximum operating pressure: 500 mbar, setting ranges between 0.4÷300 mbar. Ambient and medium temperature -15÷70oC, storage temperature -30÷80oC.
- Switching voltage: DC 5÷24 V; DC 24÷48 V; AC 24÷250 V. Nominal current: DC 20 mA; (AC 10 A).
- The GGW...A4 version has a degree of protection IP 54 and a clear cover; the GGW...A4/2 version is IP 65 and has a metal housing.
- The installation position can change the switching pressure with up to 0.5 mbar.
- Suitable for employment with gas families 1, 2, 3 and other neutral gaseous media as well as air, smoke and exhaust gases. It does not contain any non-ferrous metals, suitable for gases of up to max. 0.1 vol. % H2S, dry.

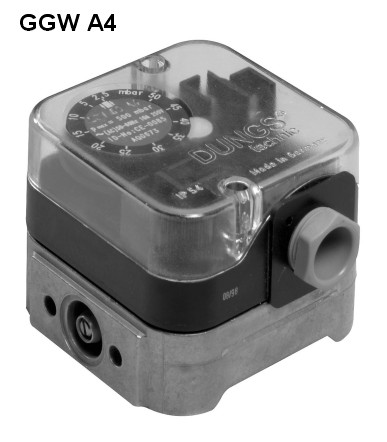

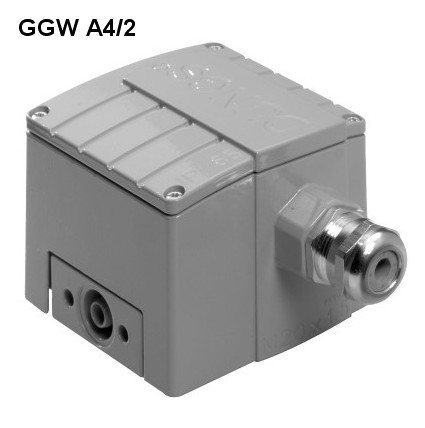

- Detailed pictures for available models (move the mouse over them to zoom):
Function:
The differential pressure acts on the membrane, pressing it against the force of the adjusting spring and against the microswitch. The pressure switch operates without outside power.
- Differential pressure switch GGW...A4 and GGW...A4/U
The switching apparatus reacts to the difference in pressure between the two pressure chambers [G 1/4 (+) - G 1/8 (-)] and, if the pressure exceeds or drops below the setpoint, activates or
switches an electrical circuit.
If the lower pressure is G 1/8 (-) and excess pressure with respect to the atmosphere exists type GGW A4 must be employed. If lower power with the respect to the atmosphere exists GGW A4-U
must be employed.
- Over-pressure switch GGW...A4, Pressure connection G 1/4 (+):
The switching apparatus reacts to excess pressure and activates or switches if the pressure exceeds or drops below a setpoint. Simply and efficiently acting pressure switch for the excess
pressure range. The pressure connection, G 1/8 (-) must not be closed or blocked.
- Under-pressure switch GGW...A4-U, Pressure connection G 1/8 (-):
The switching apparatus reacts to inadequate pressure and activates or switches if the pressure exceeds or drops below a setpoint. Simply and efficiently acting pressure switch for the
low-pressure range. The pressure connection, G 1/4 (+) must not be closed or blocked.
Technical specifications GGW A4
| Pressure switch type | Code | Setting range (mbar) | pmax (mbar) | Degree of prot. | Δp (mbar) | Medium p(+) | Medium p(-) |
|---|---|---|---|---|---|---|---|
| Pressure switch GGW 3 A4 | 248673 | 0.4 ÷ 3.0 | 500 | IP 54 | ≤0.3 | gas air |
gas air |
| Pressure switch GGW 10 A4 | 248276 | 1.0 ÷ 10 | ≤0.5 | ||||
| Pressure switch GGW 50 A4 | 246176 | 2.5 ÷ 50 | ≤1.5 | ||||
| Pressure switch GGW 150 A4 | 248295 | 30 ÷ 150 | ≤5 | ||||
| Pressure switch GGW 3 A4-U | 248327 | -0.4 ÷ -3.0 | -500 | IP 54 | ≤0.3 | gas air |
gas air |
| Pressure switch GGW 10 A4-U | 240358 | -1.0 ÷ -10 | ≤0.5 | ||||
| Pressure switch GGW 50 A4-U | 246178 | -2.5 ÷ -50 | ≤1.5 | ||||
| Pressure switch GGW 150 A4-U | 247980 | -30 ÷ -150 | ≤5 | ||||
| Pressure switch GGW 3 A4/2 | 248686 | 0.4 ÷ 3.0 | 500 | IP 65 | ≤0.3 | gas air |
gas air |
| Pressure switch GGW 10 A4/2 | 248687 | 1.0 ÷ 10 | ≤0.5 | ||||
| Pressure switch GGW 50 A4/2 | 248688 | 2.5 ÷ 50 | ≤1.5 | ||||
| Pressure switch GGW 150 A4/2 | 248689 | 30 ÷ 150 | ≤5 | ||||
| Pressure switch GGW 3 A4-U/2 | 248690 | -0.4 ÷ -3.0 | -500 | IP 65 | ≤0.3 | gas air |
gas air |
| Pressure switch GGW 10 A4-U/2 | 248691 | -1.0 ÷ -10 | ≤0.5 | ||||
| Pressure switch GGW 50 A4-U/2 | 248692 | -2.5 ÷ -50 | ≤1.5 | ||||
| Pressure switch GGW 150 A4-U/2 | 248693 | -30 ÷ -150 | ≤5 |

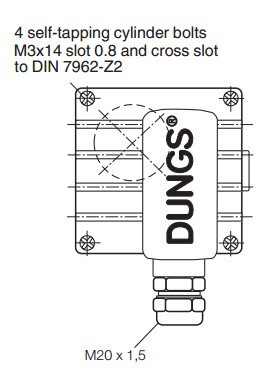

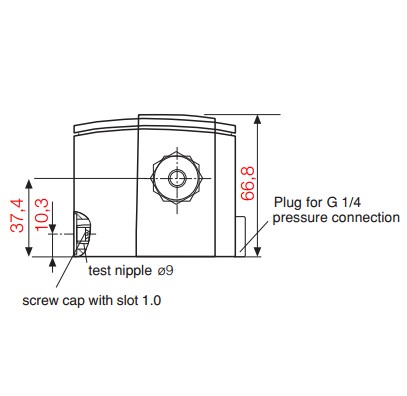

Dimensions GGW A4 (mm)

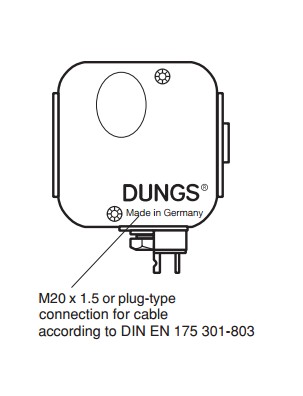

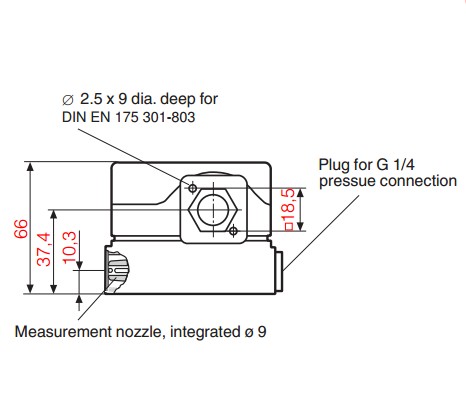

Differential pressure switches GGW A4 & GGW A4-U:
For the images that aren't clear move the mouse over them to zoom.

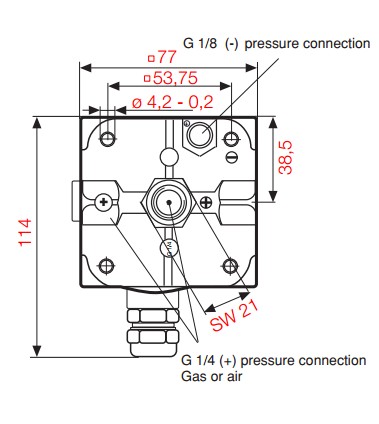

Differential pressure switches GGW A4/2 & GGW A4-U/2:

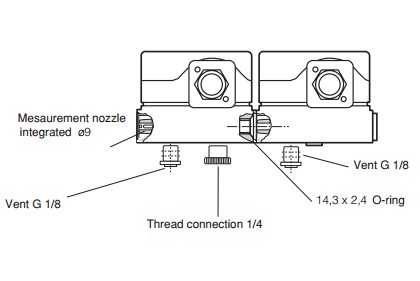

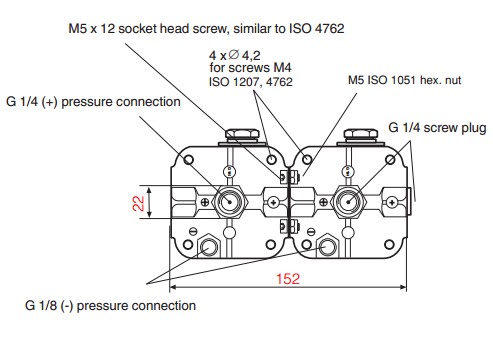

Double differential pressure switches GGW A4 / GGW A4:
Type key GGW A4 pressure switch
