KH Ball valves Dungs
- These ball valves Dungs are for manual shut-off and for releasing gases of families 1, 2, 3 and other neutral gases. Other media are air, water, light and domestic heating oils.
- Each gas train in conventional design or as Dungs Gas Multi Bloc must be completed with a ball valve.
- They cover a large range of connections, from Rp 1/4 to Rp 2 and from DN 25 to DN 200.
- Rugged and user-friendly design.
- Small sized valves are of two types, with internal threads at both ends (KH II series), or internal and external thread (KH IA series). Big valves are flanged.
Technical specifications KH ball valves
| Ball valve series | Rp | pmax (mbar) | Design |
|---|---|---|---|
| KH 5002 II | 1/4 | 5000 | brass, chrome-plated |
| KH 5003 II | 3/8 | ||
| KH 5005 II | 1/2 | ||
| KH 5007 II | 3/4 | ||
| KH 5010 II | 1 | ||
| KH 5012 II | 1 1/4 | ||
| KH 5015 II | 1 1/2 | ||
| KH 5020 II | 2 |
| Ball valve series | Rp / R | pmax (mbar) | Design |
|---|---|---|---|
| KH 5002 IA | 1/4 | 5000 | brass, chrome-plated |
| KH 5003 IA | 3/8 | ||
| KH 5005 IA | 1/2 / 1/2 | ||
| KH 5007 IA | 3/4 / 3/4 | ||
| KH 5010 IA | 1 / 1 | ||
| KH 5012 IA | 1 1/4 | ||
| KH 5015 IA | 1 1/2 | ||
| KH 5020 IA | 2 / 2 |
| Ball valve series | DN | pmax (mbar) | Design |
|---|---|---|---|
| KH 160025 | DN 25 | 16000 | spheroidal graphite iron casting, hollow ball design |
| KH 160032 | DN 32 | ||
| KH 160040 | DN 40 | ||
| KH 160050 | DN 50 | ||
| KH 160065 | DN 65 | ||
| KH 160080 | DN 80 | ||
| KH 160100 | DN 100 | ||
| KH 160125 | DN 125 | ||
| KH 160150 | DN 150 | ||
| KH 160200 | DN 200 |

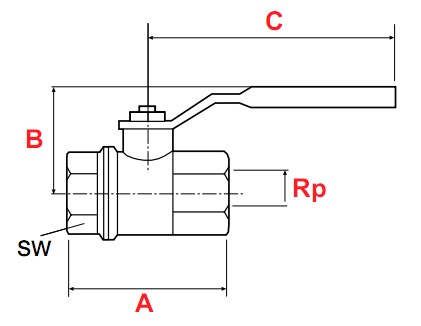

Dimensions KH ball valves (mm)
| Valve type | A | B | C | SW* | Weight (kg) |
|---|---|---|---|---|---|
| KH 5002 II | 50 | 37 | 82 | 20 | 0.16 |
| KH 5003 II | 60 | 37 | 82 | 20 | 0.14 |
| KH 5005 II | 75 | 42 | 100 | 25 | 0.25 |
| KH 5007 II | 80 | 45 | 100 | 32 | 0.39 |
| KH 5010 II | 90 | 54 | 120 | 41 | 0.57 |
| KH 5012 II | 110 | 58 | 120 | 50 | 0.82 |
| KH 5015 II | 120 | 76 | 160 | 55 | 1.22 |
| KH 5020 II | 140 | 84 | 160 | 70 | 1.77 |
* wrench width

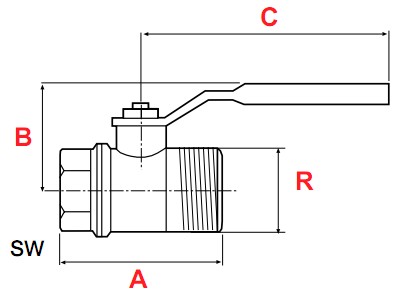

| Valve type | A | B | C | SW* | Weight (kg) |
|---|---|---|---|---|---|
| KH 5002 IA | 56.5 | 37 | 82 | 21 | 0.16 |
| KH 5003 IA | 56.5 | 37 | 82 | 21 | 0.16 |
| KH 5005 IA | 70.0 | 42 | 100 | 26 | 0.25 |
| KH 5007 IA | 76.0 | 45 | 100 | 32 | 0.40 |
| KH 5010 IA | 92.5 | 54 | 120 | 41 | 0.59 |
| KH 5012 IA | 106.0 | 58 | 120 | 50 | 0.86 |
| KH 5015 IA | 113.0 | 76 | 160 | 54 | 1.22 |
| KH 5020 IA | 133.0 | 84 | 160 | 69 | 1.79 |
* dimensiune cheie
| Valve type | A | B | C | Weight (kg) |
|---|---|---|---|---|
| KH 160025 | 125 | 114 | 165 | 3.2 |
| KH 160032 | 130 | 125 | 165 | 4.7 |
| KH 160040 | 140 | 136 | 185 | 5.7 |
| KH 160050 | 150 | 143 | 185 | 7.6 |
| KH 160065 | 170 | 158 | 230 | 12.0 |
| KH 160080 | 180 | 186 | 360 | 15.5 |
| KH 160100 | 190 | 203 | 360 | 22.6 |
| KH 160125 | 200 | 223 | 360 | 24.5 |
| KH 160150 | 210 | 230 | 625 | 33.5 |
| KH 160200 | 400 | 316 | 715 | 91.0 |
